Product Information
Key Specifications/ Special Features
| General | ||
| Dimension | TX:L52×W37.5×H21.5(mm) | RX: L52×W37.5×H21.5(mm) |
| Product Weight | TX: 28.5g | RX:28.5g |
| Enclosure | ABS+PC , Black | |
| Radio Frequency | 2.4GHz | |
| Transmission Distance | 50M line-of-sight | |
| Transmission Latency | 28ms | |
| Storage Temperature | -20°C ~ +45°C | |
| OperatingTemperature | 0°C ~ +40°C | |
| Operating Humanity | 10 to 85±3% | |
| ESD Protection | Air discharge: ±8kV Contact discharge: ±4kV | |
OS Supported | Windows 7/8/10/11, macOS10.12 (or newer), Chrome OS, iPad OS13 (or newer ) | |
| Warranty | 12 Months | |
TX | MIC | 6mm Capacity Mic |
| Microphone direction | Omni directional | |
| Frequency response | 20Hz-20KHz | |
| Sampling rate | 48KHz | |
| Sensitivity | -36dB | |
| Noise Reduction | 20dB | |
| S/N | 70dB | |
| TRRS Input | 3.5mm TRRS , external mic input | |
| LCD | 0.96 inch for Mic gain, connection, power, dB,noise reduction | |
| Battery | 180mAh | |
| Charging | 80min, USB-C 5V | |
| Endurance time | 7.5H | |
RX | 3.5mm TRS | Analog output, connect with camera 3.5mm audio input |
| 3.5mm TRRS | monitor | |
| LCD | 0.96 inch LCD for Mic gain, connection, power | |
| Battery | 180mAh | |
| Charging | 80 min with Type-C | |
| Endurance time | 5H | |
| USB-C | Firmware update/ OTG / Charging |
Shipment & Payment
1. DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
2. T/T, PayPal, Western Union, L/C available.
Our Services
1. Supply you overall solutions of electronics accessories.
2. With ISO/SGS, CE/FCC/RoHs certificates. Joined BQB/WPC/USB-IF/HDCP Union.
3. With 11 Lean production Lines, monthly production value up to USD 7.5 million.

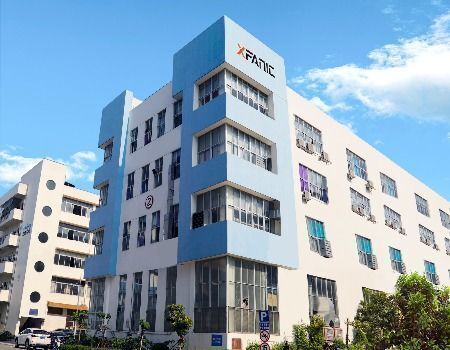

4. Our factory covered 5000 square meters, with 290 staffs and workers, included 20 QC staffs to ensure products quality.
5. Equipped with Yamaha SMT Assembly system, Solder Paste Printer, Reflow soldering machine, Bluetooth tester etc.
How to order
1. Pls send email or chat with us via TM, WHATSAPP, SKYPE, and let us know your requirements on order details.
2. We will reply you with proforma invoice based on your order request.
3. Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4. Sample order supported.
Warranty & After-sale
1. Our products come with 12 months warranty and life-time service support.
2. You can return or exchange your items in any of the following circumstances; Faulty items, Damaged items or wrong models.
