Product Information
Key Specifications/ Special Features

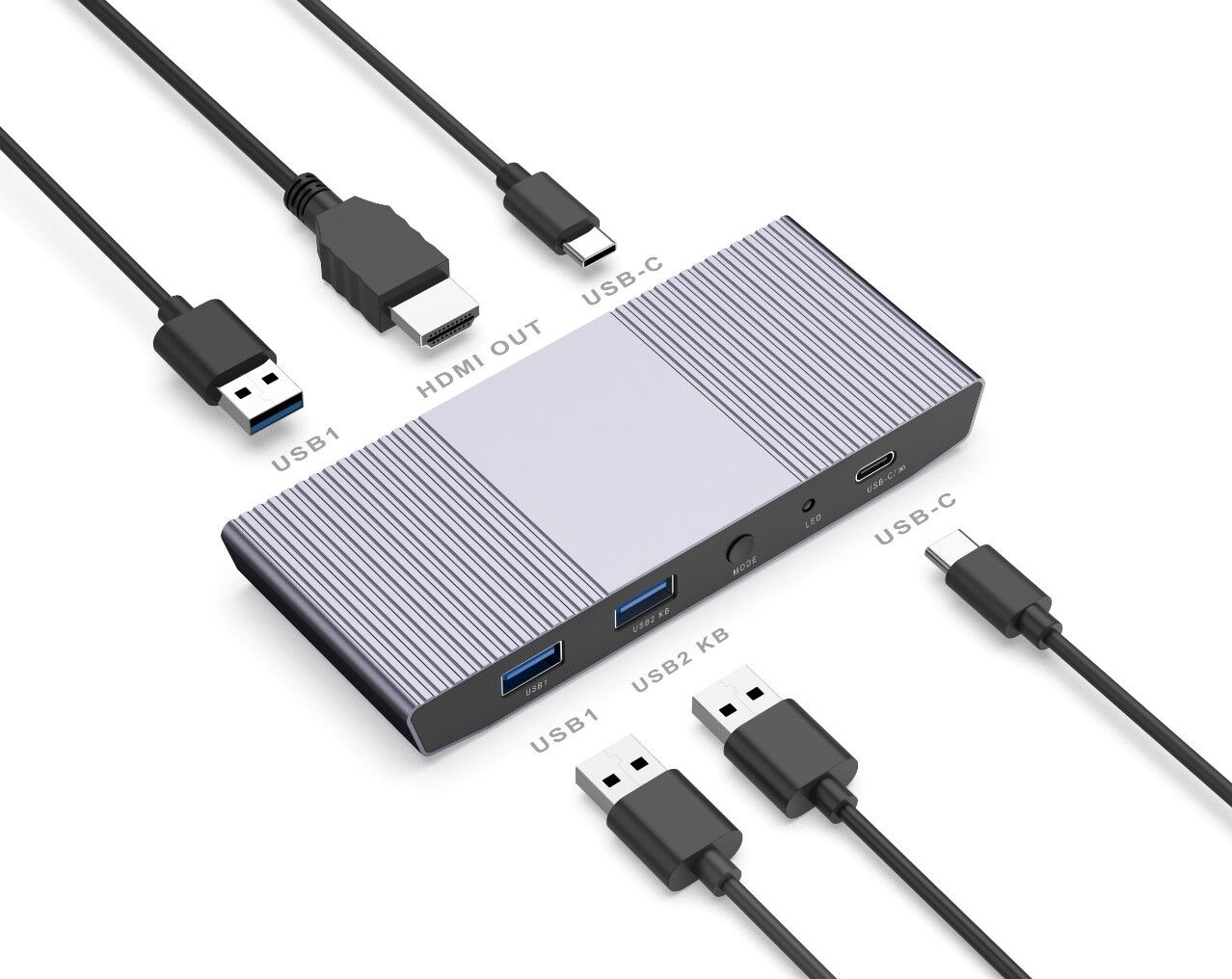

KD204
2 Port Dual USB-C (DP Alt-Mode) KVM
Key Feature:
■Dual USB-C DP Alt-Mode input
■Supports 4K@60Hz HDMI2.0 Output
■With 3 USB-A 3.2 Gen1 ports ( one is for KB hot-key. )
■Easily switch USB-C device by a physical button or keyboard hot key=>(Press shift on the left side of the keyboard 2 times)
■Powerful PD Pass-Through Charging (up to 60W)
■Plug and Play Simplicity – with no need for additional software, this adapter easily attaches to your USB-C devices to help you connect to a HDMI Monitor, more peripherals.
Specification:
| Model | KD204 |
| Function | USB-C (DP, Alt-Mode) x2 to HDMI 2.0 (4K@60Hz )+USB-Ax3(5Gbps) |
| Selection Method | Front Push button / Hotkey |
| Resolution | 4K@60Hz |
| Max.Data rate | 5Gbps |
| PD | 100W pass-through |
| Housing | Aluminum |
| Dimensions(mm) | 130(L)x56(W)x17(H) |
| LED | Blue : USB-C #1 outputs to HDMI Orange : USB-C #2 outputs to HDMI Purple : One of USB-C is using PD charging |
KD204
2 Port Dual USB-C (DP Alt-Mode) KVM
Key Feature:
■Dual USB-C DP Alt-Mode input
■Supports 4K@60Hz HDMI2.0 Output
■With 3 USB-A 3.2 Gen1 ports ( one is for KB hot-key. )
■Easily switch USB-C device by a physical button or keyboard hot key=>(Press shift on the left side of the keyboard 2 times)
■Powerful PD Pass-Through Charging (up to 60W)
■Plug and Play Simplicity – with no need for additional software, this adapter easily attaches to your USB-C devices to help you connect to a HDMI Monitor, more peripherals.
Specification:
| Model | KD204 |
| Function | USB-C (DP, Alt-Mode) x2 to HDMI 2.0 (4K@60Hz )+USB-Ax3(5Gbps) |
| Selection Method | Front Push button / Hotkey |
| Resolution | 4K@60Hz |
| Max.Data rate | 5Gbps |
| PD | 100W pass-through |
| Housing | Aluminum |
| Dimensions(mm) | 130(L)x56(W)x17(H) |
| LED | Blue : USB-C #1 outputs to HDMI Orange : USB-C #2 outputs to HDMI Purple : One of USB-C is using PD charging |
