Product Information
Key Specifications/ Special Features
Product Features

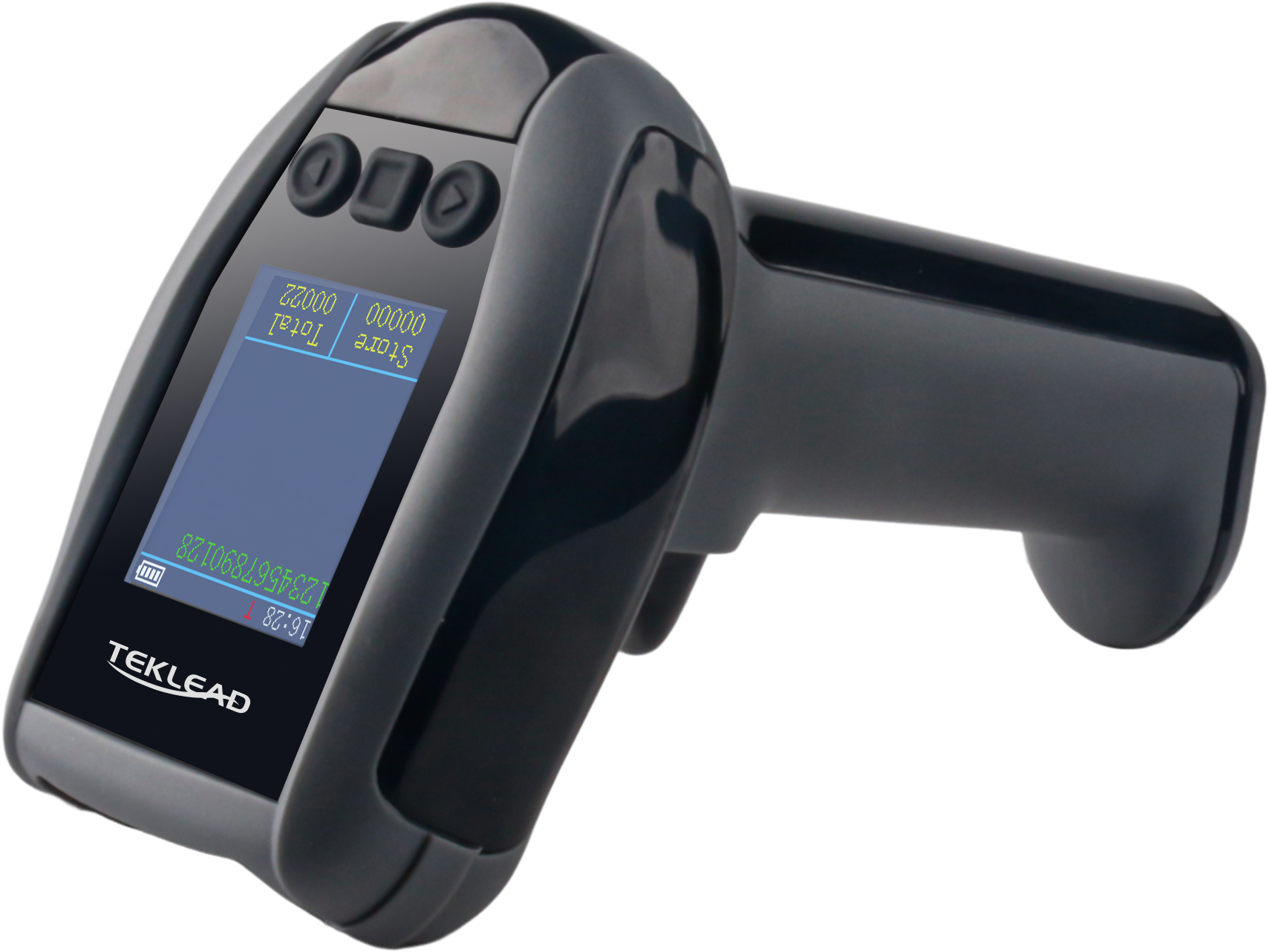

>It is anti-drop and anti-vibration with highly integrated Two-dimensional decoding structure.
>It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
>It can read barcodes above 4MIL to meet daily scanning needs.
>It has a 300,000 global exposure camera, automatic exposure, suitable for complex environments.
>The outdoor transmission distance can achieve 60 meters with wireless 2.4G transmission technology, while supporting wired transmission without switching.
>It supports multiple working modes, such as trigger, auto sense and continuous.
>It supports instant mode and storage mode. It can store 20,000 barcodes.
>It has 1.77 inch TF large screen, 128×160, up to 6 lines of 96 bar code characters.
> It can be imported through the product information, TF screen display product name and price information.
>It supports online upgrade, custom development and secondary development.
>It has vibration and warning buzzer functions for prompt.
The screen can display the current reading bar code data (you can also display the product name and price information through the imported product information), the current time, wireless (wired) status, wireless working mode, charging status and battery power, the total number of stored data, the total number of decoding (maximum count display 99999). The number of data and the total number of times can be respectively swept the corresponding setting code to clear.
| Operating Guidecommunication mode | USB（USB-KBW、USB-COM）、2.4G |
| Sensor | CMOS, global shutter |
| Pixel | 300,000，640*480 |
| Reading Precision | ≥4mil/0.127mm（PCS90%,CODE 39） |
| Depth of Field | 15mm~325mm（Different bar code range） |
| Decoding Speed | 35CM/S |
| Scanning Mode | Trigger, Induction, Continuous |
| Prompt Mode | LED、Buzzer、Vibrator |
| Perspective | 42° * 32° |
| Reading Angle | Roll: ±360°、Pitch:±55°、Skew: ±55° |
| Test Conditions | CODE39,10mil/0.25mm,PCS90% |
| Print Contrast | ≥10% |
| Ambient Illumination | Dark Environment，Indoor Natural Light |
| Decoding Capability | 1D：Code 128、EAN-13、EAN-8、UPCE0、UPCE1、UPC-A、ISBN、ISSN、Code11、ITF-25(Interleaved 2 of 5)、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、MSI Plessey、Febraban、GS1 DataBar、GS1 DataBar Limited、GS1 DataBar Expanded、Plessey 2D: QR Code、Micro QR、Data Matrix、PDF417、Aztec、Maxicode、Chinese sensible code、Dotcode |
| Wireless Communication Mode | Instant mode, storage mode |
| Method of Communication | USB(USB-KBW、USB-COM）、2.4G |
| Wireless Standard | 2.4GHZ（ISM ISM frequency band） |
| Transmit Distance | ≥60meters 2.4G（Open distance）; 10 meters Bluetooth |
| Storage Capacity | 350KB（over 20,000 Product code） |
| Battery Capacity | 2500mAh |
| Charging Time | About 5 hours(5V@1000mA) |
| Continuous Scan Time | ≥12hours |
| Standby Time | ≥4 weeks |
| Support system | Windows、Mac OS、IOS、 Linux、Unix、Android |
| Wire Length | 1.5 meters |
| Interface Type | USB (Type B) |
| Power Input | DC 5V 1A |
| Current | 220mA（Average Work） |
| Working Temperature | 0℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Working | 5% to 95%（Non-Condensing） |
| Transportation | 10H@125RPM |
| Cable | It is used for connecting Scanner and Host to communicate and charge. |
| Dongle | It is used to connect the host to receive data transmission from the scanner. |
| Operating Guide | It is used for general settings. |
contact: Aileen Shao
email: aileen.shao (at) gzteklead.com
Product Features
>It is anti-drop and anti-vibration with highly integrated Two-dimensional decoding structure.
>It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
>It can read barcodes above 4MIL to meet daily scanning needs.
>It has a 300,000 global exposure camera, automatic exposure, suitable for complex environments.
>The outdoor transmission distance can achieve 60 meters with wireless 2.4G transmission technology, while supporting wired transmission without switching.
>It supports multiple working modes, such as trigger, auto sense and continuous.
>It supports instant mode and storage mode. It can store 20,000 barcodes.
>It has 1.77 inch TF large screen, 128×160, up to 6 lines of 96 bar code characters.
> It can be imported through the product information, TF screen display product name and price information.
>It supports online upgrade, custom development and secondary development.
>It has vibration and warning buzzer functions for prompt.
The screen can display the current reading bar code data (you can also display the product name and price information through the imported product information), the current time, wireless (wired) status, wireless working mode, charging status and battery power, the total number of stored data, the total number of decoding (maximum count display 99999). The number of data and the total number of times can be respectively swept the corresponding setting code to clear.
| Operating Guidecommunication mode | USB（USB-KBW、USB-COM）、2.4G |
| Sensor | CMOS, global shutter |
| Pixel | 300,000，640*480 |
| Reading Precision | ≥4mil/0.127mm（PCS90%,CODE 39） |
| Depth of Field | 15mm~325mm（Different bar code range） |
| Decoding Speed | 35CM/S |
| Scanning Mode | Trigger, Induction, Continuous |
| Prompt Mode | LED、Buzzer、Vibrator |
| Perspective | 42° * 32° |
| Reading Angle | Roll: ±360°、Pitch:±55°、Skew: ±55° |
| Test Conditions | CODE39,10mil/0.25mm,PCS90% |
| Print Contrast | ≥10% |
| Ambient Illumination | Dark Environment，Indoor Natural Light |
| Decoding Capability | 1D：Code 128、EAN-13、EAN-8、UPCE0、UPCE1、UPC-A、ISBN、ISSN、Code11、ITF-25(Interleaved 2 of 5)、Code39、Code93、Code32、Codabar、Matrix 2 of 5、Industrial 25、IATA25、MSI Plessey、Febraban、GS1 DataBar、GS1 DataBar Limited、GS1 DataBar Expanded、Plessey 2D: QR Code、Micro QR、Data Matrix、PDF417、Aztec、Maxicode、Chinese sensible code、Dotcode |
| Wireless Communication Mode | Instant mode, storage mode |
| Method of Communication | USB(USB-KBW、USB-COM）、2.4G |
| Wireless Standard | 2.4GHZ（ISM ISM frequency band） |
| Transmit Distance | ≥60meters 2.4G（Open distance）; 10 meters Bluetooth |
| Storage Capacity | 350KB（over 20,000 Product code） |
| Battery Capacity | 2500mAh |
| Charging Time | About 5 hours(5V@1000mA) |
| Continuous Scan Time | ≥12hours |
| Standby Time | ≥4 weeks |
| Support system | Windows、Mac OS、IOS、 Linux、Unix、Android |
| Wire Length | 1.5 meters |
| Interface Type | USB (Type B) |
| Power Input | DC 5V 1A |
| Current | 220mA（Average Work） |
| Working Temperature | 0℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Working | 5% to 95%（Non-Condensing） |
| Transportation | 10H@125RPM |
| Cable | It is used for connecting Scanner and Host to communicate and charge. |
| Dongle | It is used to connect the host to receive data transmission from the scanner. |
| Operating Guide | It is used for general settings. |
contact: Aileen Shao
email: aileen.shao (at) gzteklead.com
