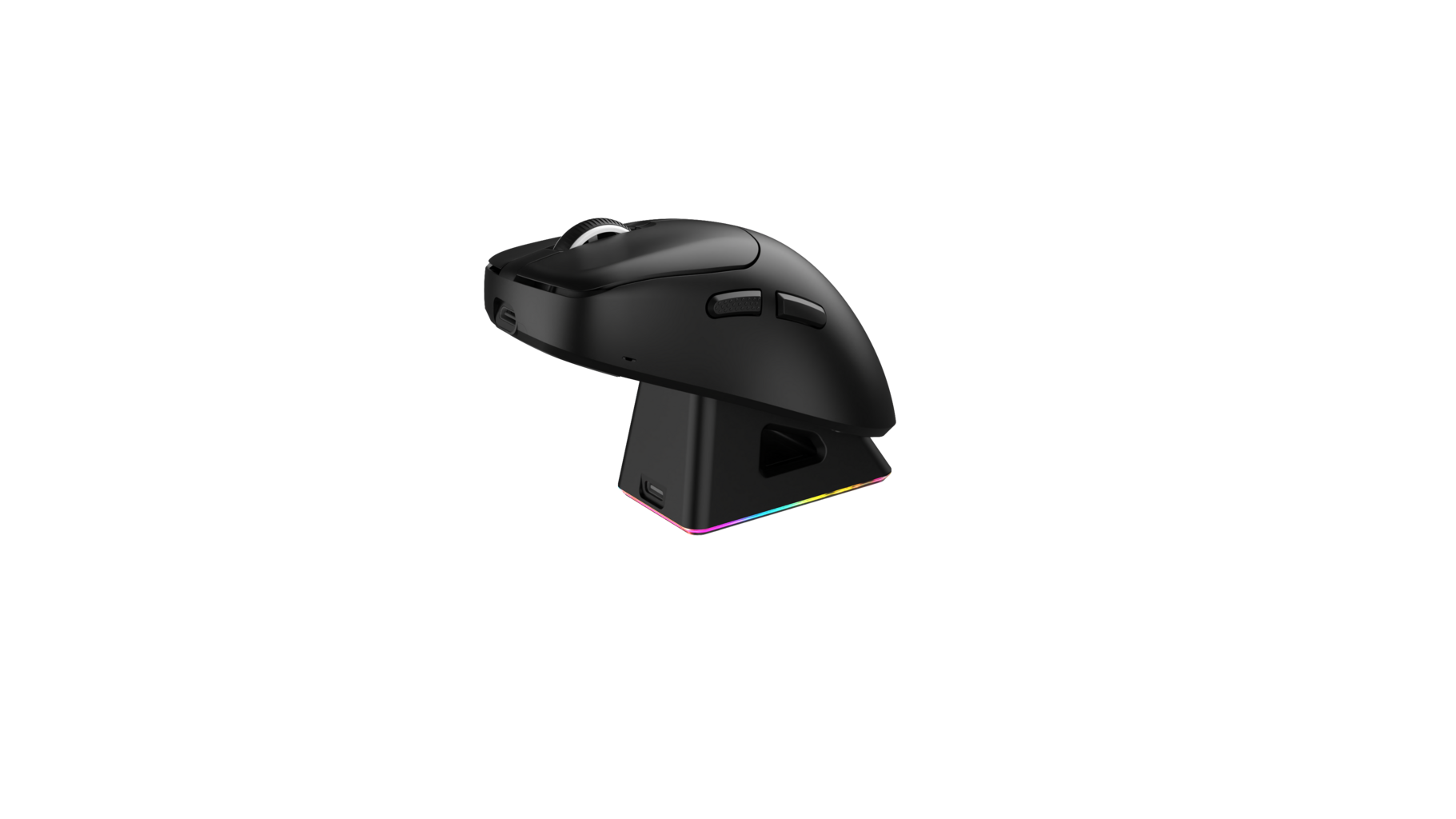

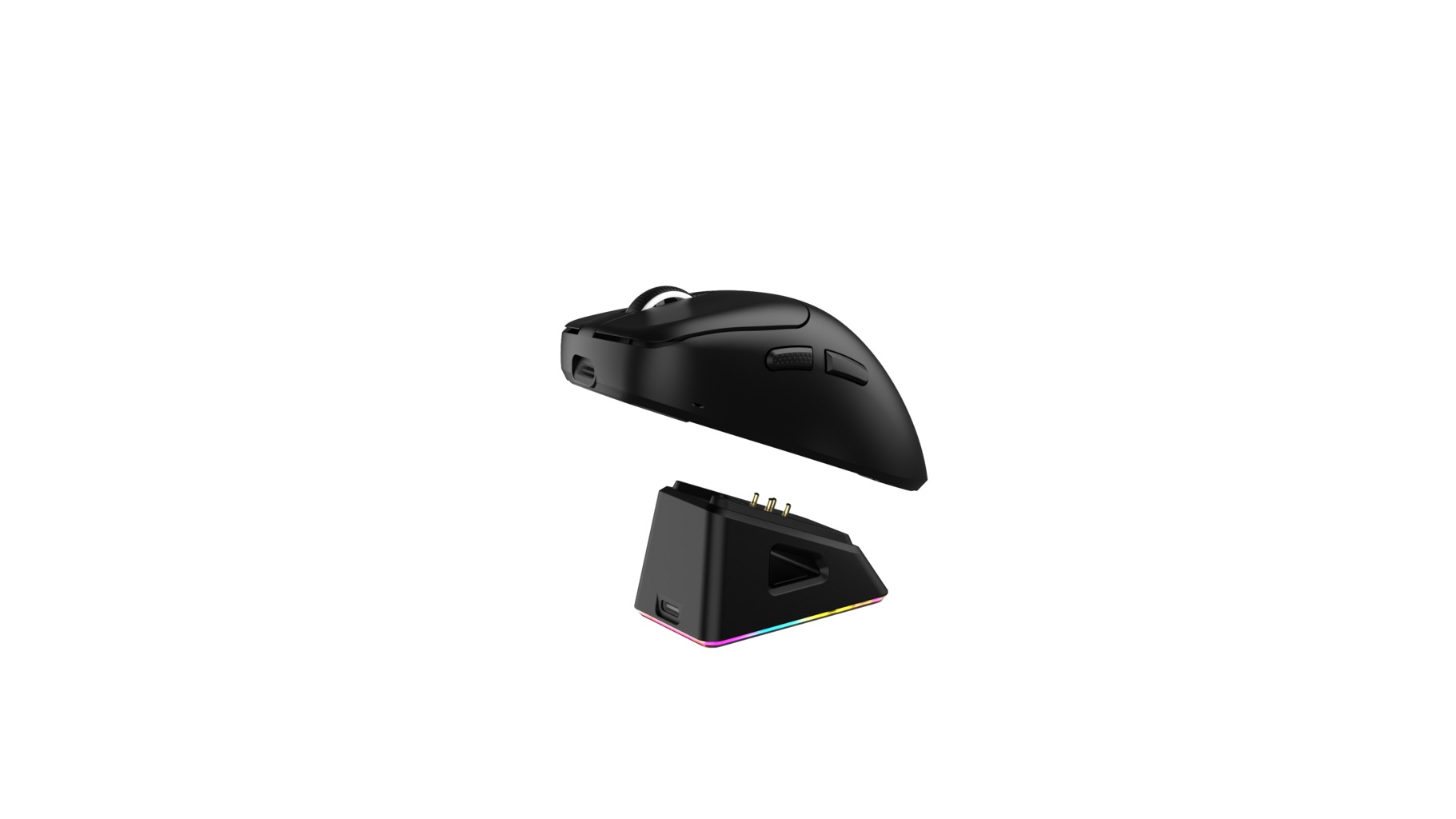

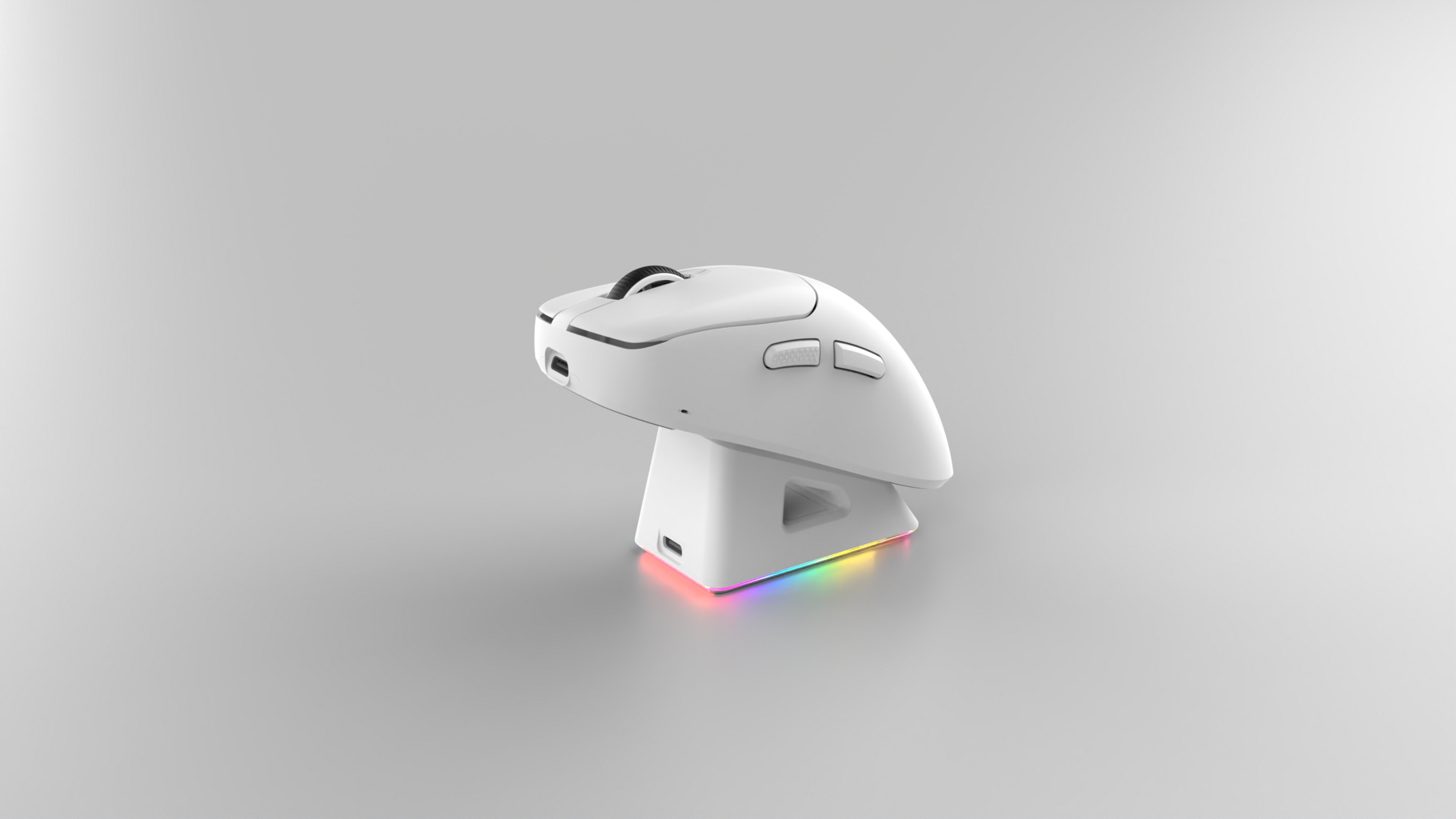

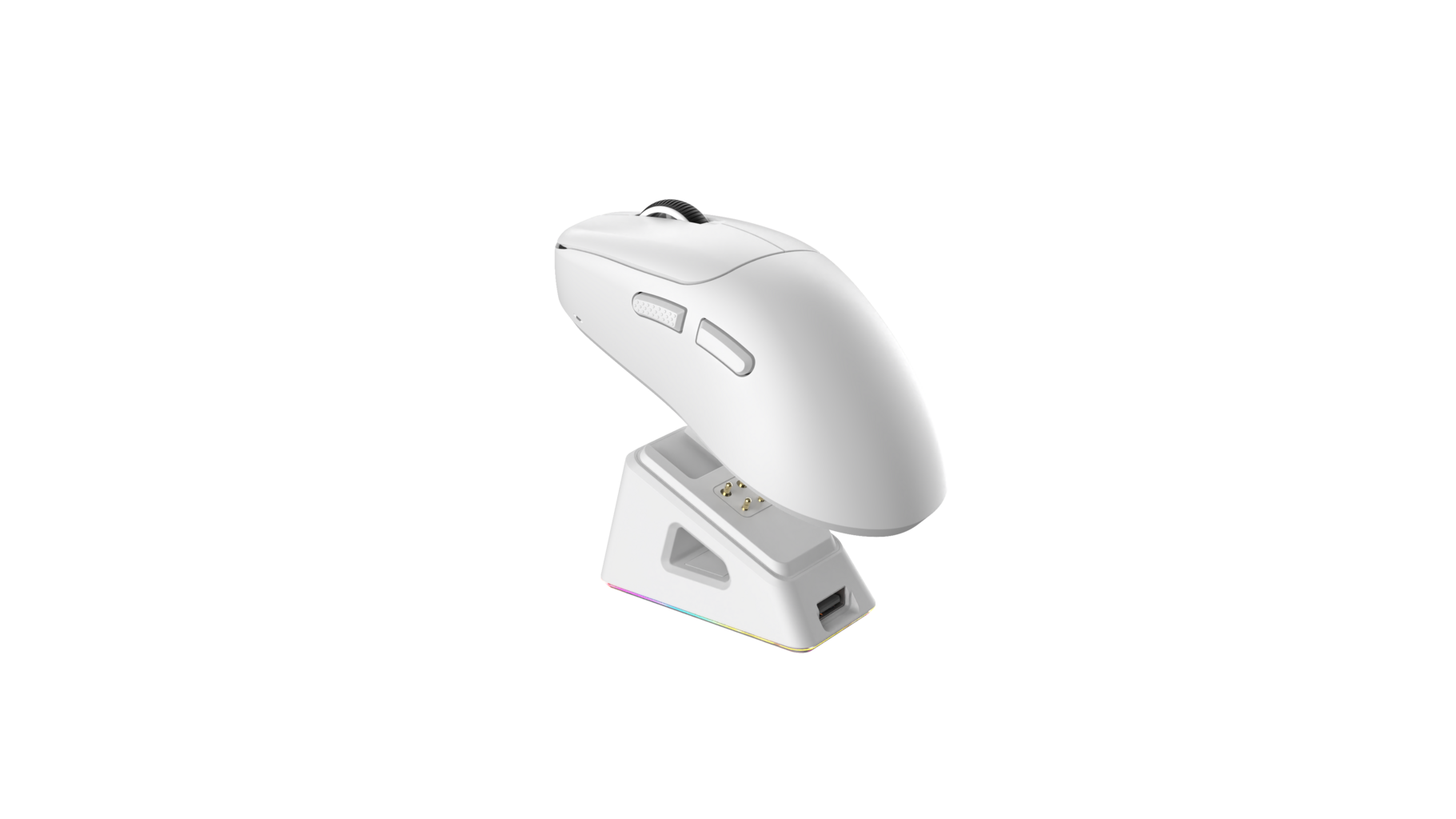

3311IC gaming mouse with a charging dock rechargeable mouse

PX506 Mouse Manual

I. Electrical Parameter Specifications

1. Type: 2.4G wireless + Bluetooth + Type-C wired

2. Sensor: Custom optical sensor, XC3335SE

3. MCU: Telink

4. Polling Rate: Wireless 1K, Wired 1K, Bluetooth 133Hz

5. DPI/CPI (dots/count per inch): Preset 800-1600 (default)-3200-6400, maximum range supports 100~30,000 DPI (100 DPI step)

6. Maximum Speed: 300 IPS (inches per second)

7. Acceleration: 60g

8. Left/Right Buttons: Omron 60 million clicks mechanical micro switches

9. Encoder: TTC pink wheel, 600,000 clicks

10. Cable: 1.5-meter paracord

11. Battery Capacity: 500mAh

12. Battery Life: 70 hours
II. Function Description

1. Wired mode takes priority, plug and play;

2. Mode switch: upward for 2.4G, middle for OFF, downward for Bluetooth.

3.The DPI button cycles through 800 - 1600 (default) - 3200 - 6400, with a maximum supported range of 100 to 30,000 DPI (adjustable via driver, 100 DPI steps).

4. Indicator Light Description

5. Pairing Instructions

2.4G Mode: Switch to 2.4G mode, press and hold the <Left + Middle + Right> buttons for over 3 seconds to enter pairing mode (indicator light flashes green rapidly). Within 1 minute, insert the receiver into the host USB port to complete automatic pairing. Note: During pairing, keep the mouse and receiver within 30 cm of each other.

BT Mode: Switch to BT mode, press and hold the <Left + Middle + Right> buttons for over 3 seconds to enter pairing mode (indicator light flashes blue rapidly). Within 1 minute, search for "MS504" in the host device's Bluetooth settings and click to connect to complete the pairing.
