Product Information
Key Specifications/ Special Features

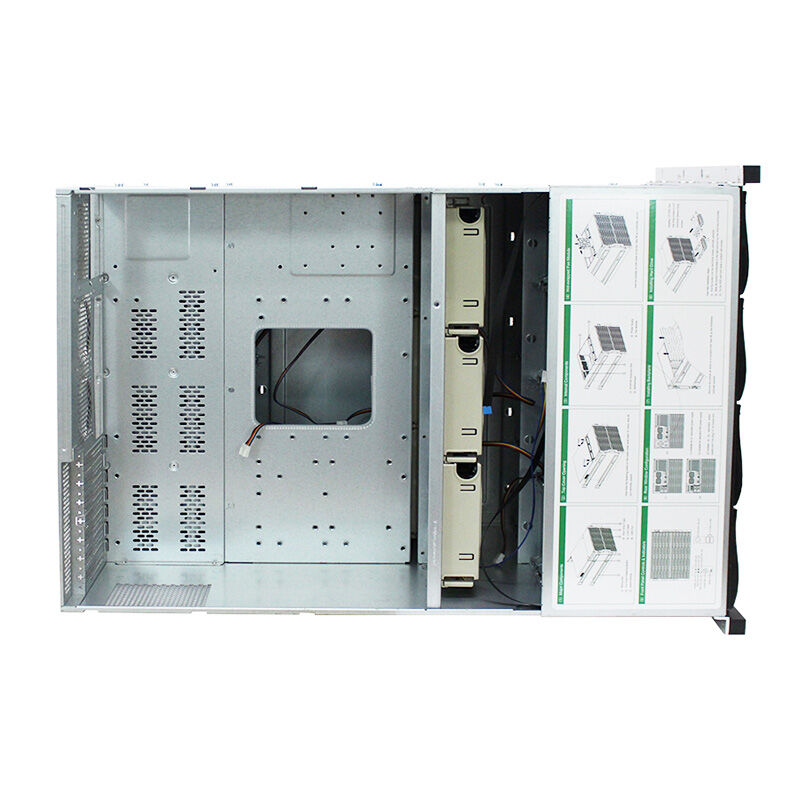

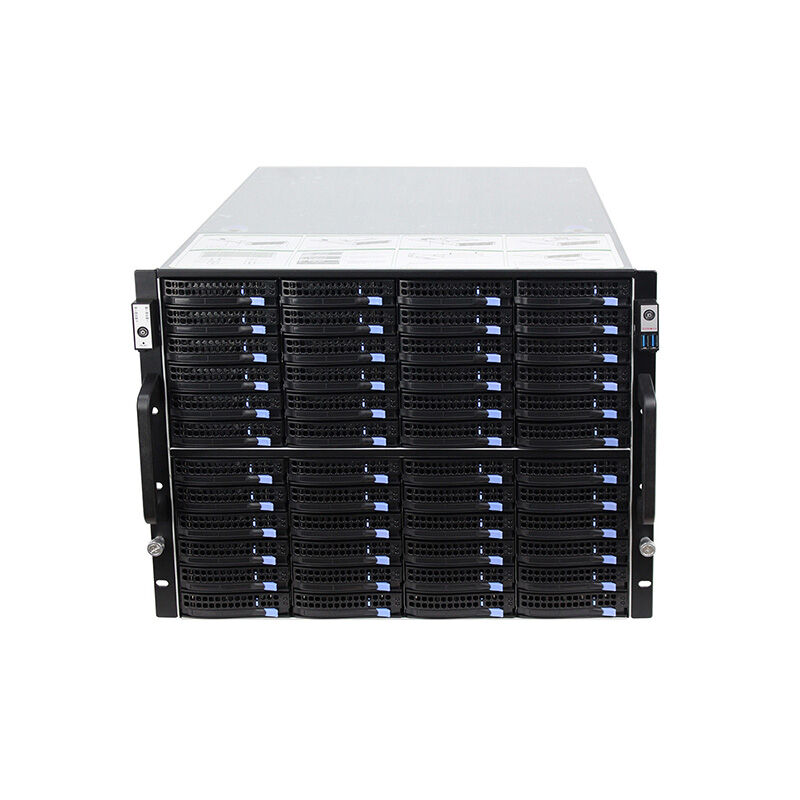

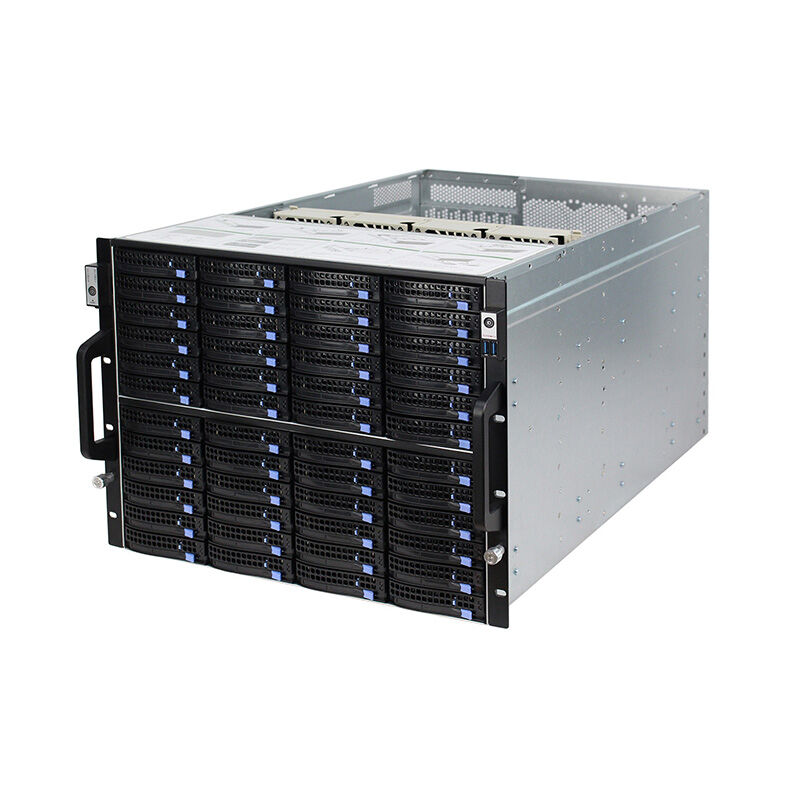

This is 8U server chassis and the model of product is "S865-72.
8U Rackmount Case is an easy-to-use enclosure for housing servers and networking and telecommunications equipment mounted in a 19-inch rack. Its characteristics are large internal components, good cooling, and ease of service, making it suitable for data
centers.
Standard 72pcs drivers bays.
The server chassis drivers bays comes standard with 72x 3.5" HDD/SSD drive bays.
The motherboard of chassis supports of MAX 12" x 13" motherboard.
S865-72 8U server chassis widely used in Cloud storage, cloud computing, big data, security monitoring, LOTetc.
| ponents | Specification |
| Dimensions(w*D*H) | 437.5mm x 650mm x 354mm, standard 19" rackmount chassis. |
| Materials | 1.0mm SGCC Zinc-Coated Steel. |
| Color | Grey. |
| HDD bay | 72 x 3.5' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays. |
| M/B | Support MAX 12" x 13" motherboard. |
| Epansion space | 7 full-height PCI/PCIE expansion slots. |
| System Control | Power LED*1，Reset*1，Power SW*1，HDD LED*1，NIC LED*2，UID LED*1，UID SW*1，OH/FAN Fail LED*1，Power Fail LED*1. |
| Applicarion | Cloud storage, cloud computing, big data, security monitoring, LOTetc. |
This is 8U server chassis and the model of product is "S865-72.
8U Rackmount Case is an easy-to-use enclosure for housing servers and networking and telecommunications equipment mounted in a 19-inch rack. Its characteristics are large internal components, good cooling, and ease of service, making it suitable for data
centers.
Standard 72pcs drivers bays.
The server chassis drivers bays comes standard with 72x 3.5" HDD/SSD drive bays.
The motherboard of chassis supports of MAX 12" x 13" motherboard.
S865-72 8U server chassis widely used in Cloud storage, cloud computing, big data, security monitoring, LOTetc.
| ponents | Specification |
| Dimensions(w*D*H) | 437.5mm x 650mm x 354mm, standard 19" rackmount chassis. |
| Materials | 1.0mm SGCC Zinc-Coated Steel. |
| Color | Grey. |
| HDD bay | 72 x 3.5' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays. |
| M/B | Support MAX 12" x 13" motherboard. |
| Epansion space | 7 full-height PCI/PCIE expansion slots. |
| System Control | Power LED*1，Reset*1，Power SW*1，HDD LED*1，NIC LED*2，UID LED*1，UID SW*1，OH/FAN Fail LED*1，Power Fail LED*1. |
| Applicarion | Cloud storage, cloud computing, big data, security monitoring, LOTetc. |
