Barcode Image Scanner With USB Interface

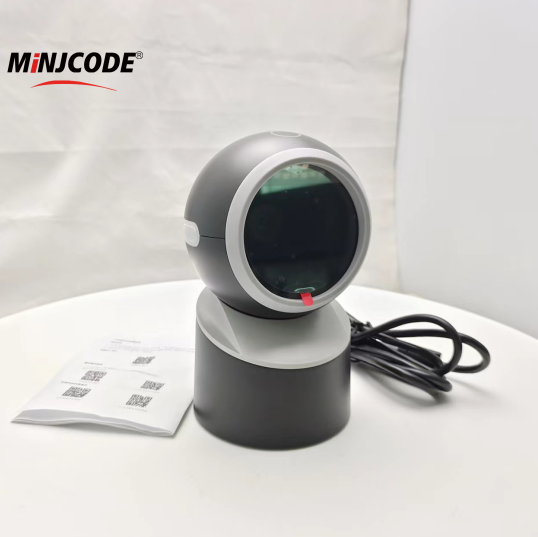

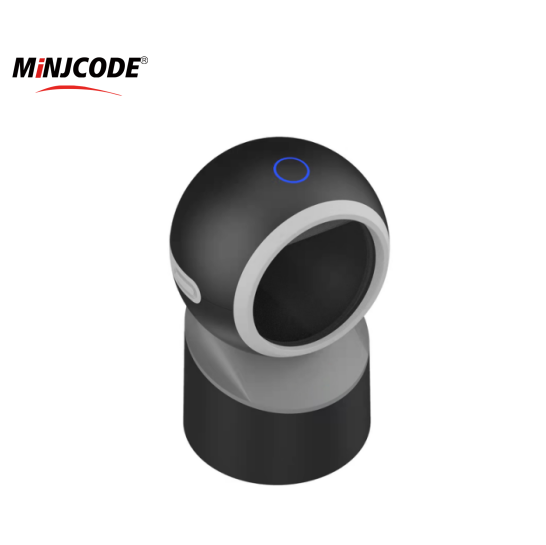

Barcode image scanner
Excellent performance,fashionable and exquisite appearance.
Strong reading performance, quickly read the mainstream one-dimensional code, two-dimensional code on paper, computer or mobile phone screen.
Support USB and Virtual Serial Port communication.
Be adaptable to a variety of demanding and complex environments,such as total darkness,high temperature and humidity,impact,vibration and ,strong exposure etc.
Support mainstream Windows ,Android and Linux system.

Specification Parameter

Type：2D wired barcode scanning platform MJ3870

Barcode reading mode：Image-based barcode reading

Data transfer method：USB data transfer

Interface：USB (HID-KBW, virtual serial port)

Sensor：CMOS sensor (640*480 pixel,100fps)

Light source：624nm red LED

Operating Voltage：5V; DC±5%

Operating Current：400mA(Max.)

Compatible system：Android/ IOS/ Windows system

Basic code type：

1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、 Code93、CodaBar 、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、 Code11、MSI Plessey、RSS-14、RSS-Expand、RSS-Limited、 Standard 2 of 5、Code 16K、Plessey、ChinaPost、Code49

2D: QR Code、PDF417、DataMatrix（ECC200）、Micro QR 、Chinese Sensible（HanXin）Code、Micro PDF417、Maxi Code、Aztec
