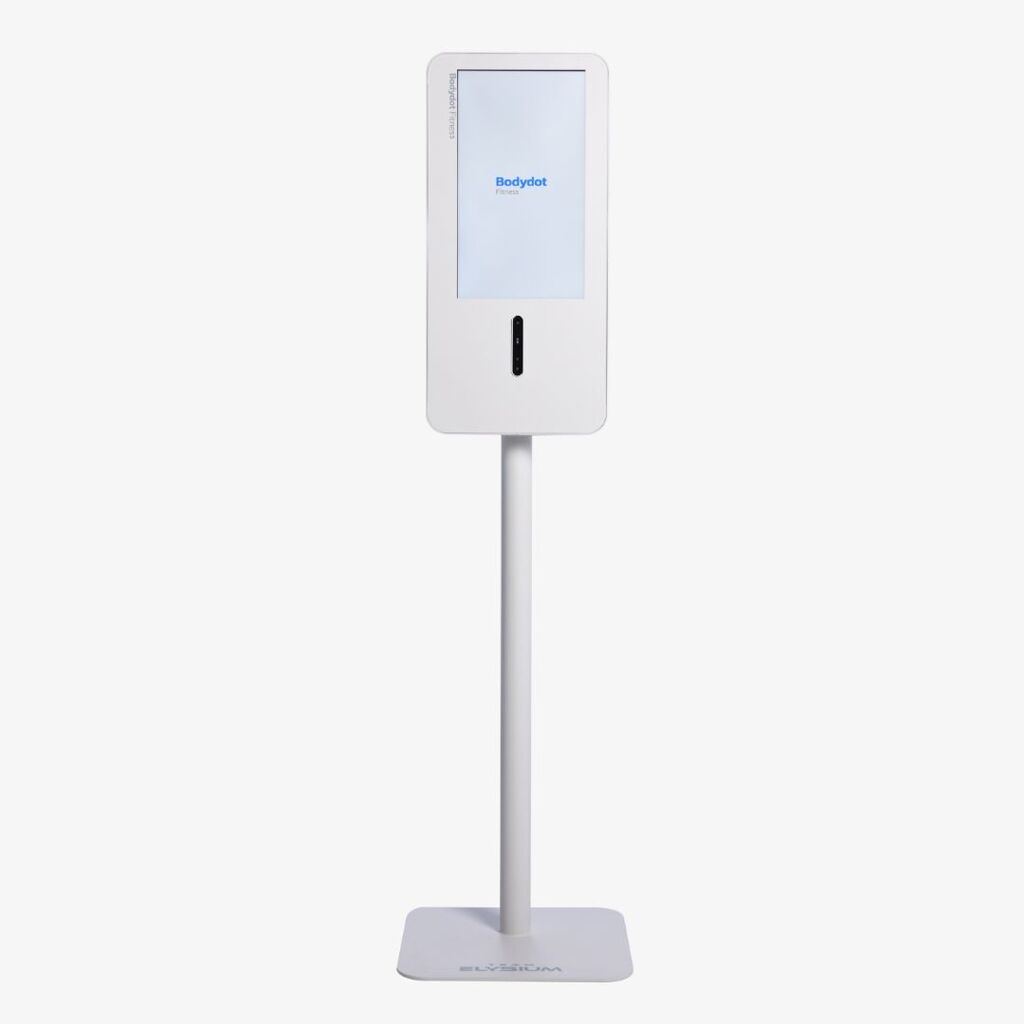

Bodydot BDF1000 Interactive AI-Powered Full-Body Tracking & Physical Assessment System

[Product Overview]

Bodydot Fitness (Model: BDF1000) is a next-generation AI-powered 3D body shape and posture analyzer engineered for high-precision musculoskeletal health assessments. Developed in South Korea by Team Elysium, Bodydot integrates proprietary clinical musculoskeletal (MSK) AI algorithms, advanced 3D optical vision, and interactive web architecture to deliver rapid, markerless, and highly accurate physical evaluations in under 1 minute.

[Proprietary Core Technology & Software Capabilities]

1. Clinically Validated AI & Peer-Reviewed Research

Backed by 12 peer-reviewed scientific publications worldwide (including 9 international journals), validating the precision, test-retest reliability, and clinical utility of its body tracking algorithms. Built upon proprietary MSK analysis models developed through collaborative clinical validation with leading domestic tertiary medical institutions.

2. Markerless 3D Vision & Landmark Tracking (40+ Body Points)

High-precision 3D depth sensor tracks more than 40 anatomical landmarks automatically in live view without manual markers or tight-fitting attire. Advanced AI shoulder structure recognition accurately separates Forward Head Posture (FHP: C7–Ear angle) from Rounded Shoulders (C7–Acromion angle) for pinpoint anatomical diagnosis.

3. Dynamic Movement & High-Utility Functional Assessment

Features built-in movement analysis protocols, including Overhead Squat, Apley’s Scratch Test, and Toe-Touch assessments, all completed within 1 minute. Continuous algorithmic updates introduce expanded functional motion tracking and evaluation metrics.

4. Dynamic 3D Muscle Simulation & Imbalance Visualization

Renders detailed, interactive 3D musculoskeletal models illustrating muscle tension, shortening, and joint stress in real time. Visually highlights postural imbalances across left-right and front-back axes, simplifying consultations and enhancing user comprehension.

5. Personalized Exercise Prescription & Data-Driven Tracking

Automatically generates customized corrective exercise routines and targeted stretching programs based on diagnostic results. Cloud-backed historical tracking allows side-by-side visual and quantitative comparison to monitor physical progress over time.

6. Web-Based Multi-Device Sync (Zero App Installation)

Fully web-compatible via Google Chrome across PCs, laptops, and tablets without requiring separate software installation. Supports simultaneous connection of up to 100 tablets with zero additional license fees, enabling consultations anywhere away from the kiosk.

[Hardware Specifications]

- Product Type: AI Body & Posture Analyzer

- Brand Name: Bodydot Fitness

- Model Number: BDF1000

- Display: 15.6-inch Full HD (1920 x 1080) Interactive Touchscreen

- Main 3D Sensor: RGB Camera (1980 x 1080) & 3D Depth Sensor (1280 x 720)

- Minimum Depth Distance: ~45 cm

- Device Dimensions: 35 cm x 35 cm x 134 cm / 13.7 x 13.7 x 54 inches (Head: 27.2 x 57.4 cm / Height: 137 cm)

- Compact Space Requirement: Operational within just 1.5㎡ (1.5 m x 1.0 m space)

- Net Weight: Approx. 13 kg (26.5 lbs)

- Power Supply: AC 100~240V, ~1.7A, 50/60Hz

- Operating System & Server: High-Security AWS Cloud-Connected Backend - Connectivity: 2.4GHz Wi-Fi / RJ45 Ethernet Port

- Language Support: Korean (KR), English (EN), with multi-language customization available based on MOQ

- Country of Origin: Republic of Korea (Team Elysium Inc.)
