DC 12-36V 4 Channels Lighting Control Barriers Adjustable Mode RF Remote Control Switch Universal RF Remote Control Switch

Industral Garage Door Barriers 4 channels RF Remote Controller

Remote Control (Transmitter):

Product Name: 4 Buttons Universal Wireless Remote Control

Model Number: AK-JD01A

Function: Remote Control

Working Votage: DC 9V

Transmit Distance: 50meter

Frequency: 315/433.92MHz

IC: EV1527

Size: 69.5*36.5*15.5mm

Weight: 13g

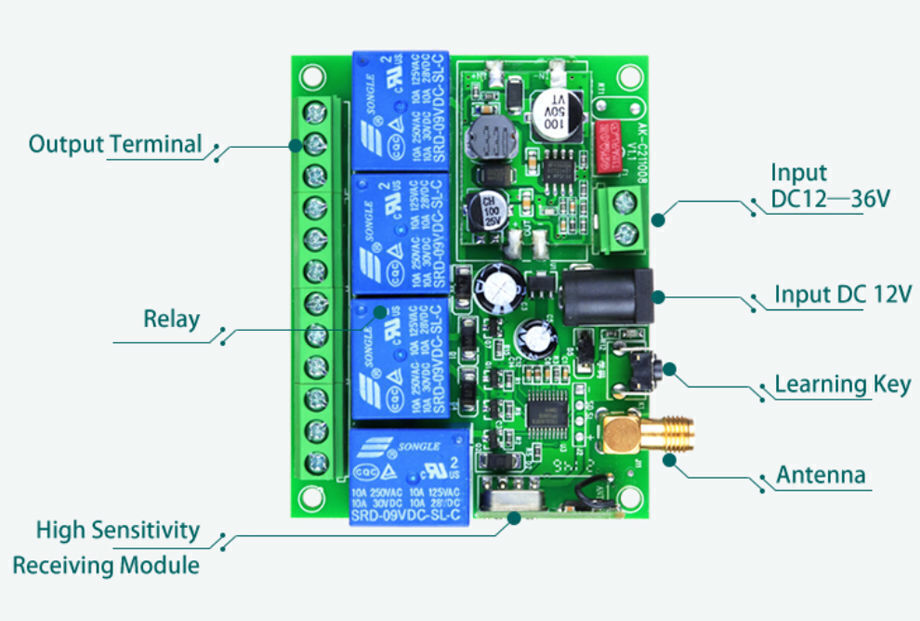

Receiver:

Model Number: AK-C211008

Working Voltage: DC12-36V

Working Current: 37mA

Receiving Sensitivity: -105 dBm

Frequency: 315MHZ/433MHZ

Working Temperature:-20-70℃

Working Mode: Momentary/Toggle/Latched

Modulation: ASK

Size: 94.7*61.8*28.2mm

Weight: 94g

Instruction

Learning Methods:

Momentary: Press the learning key on the controller once, the LED indicator flashes once and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. All buttons on the remote control are in momentary mode.

Toggle: Press the learning key on the controller twice, the LED indicator flashes twice and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. All buttons on the remote control are in Toggle mode.

Latched: Press the learning key on the controller 3 times, the LED indicator flashes 3 times and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. All buttons on the remote control are in Latched mode.

2 Momentary & 2 Latched: Press the learning key on the controller 4 times, the LED indicator flashes 4 times and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. Two buttons on the remote control are in Momentary mode and two buttons are in Latched mode.

2 Momentary & 2 Toggle: Press the learning key on the controller 5 times, the LED indicator flashes 5 times and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. Two buttons on the remote control are in Momentary mode and two buttons are in Toggle mode.

2 Toggle & 2 Latched: Press the learning key on the controller 6 times, the LED indicator flashes 6 times and then turns off, then press any button on the remote control, the controller LED indicator flashes three times and then turns off, indicating that the code is successfully paired. Two buttons on the remote control are in Toggle mode and two buttons are in Latched mode.

Notes:

* The input voltage cannot exceed the working voltage range.

* Keep it out of reach of children.

* In an environment with strong wireless interference, the control distance may be reduced.

* It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
