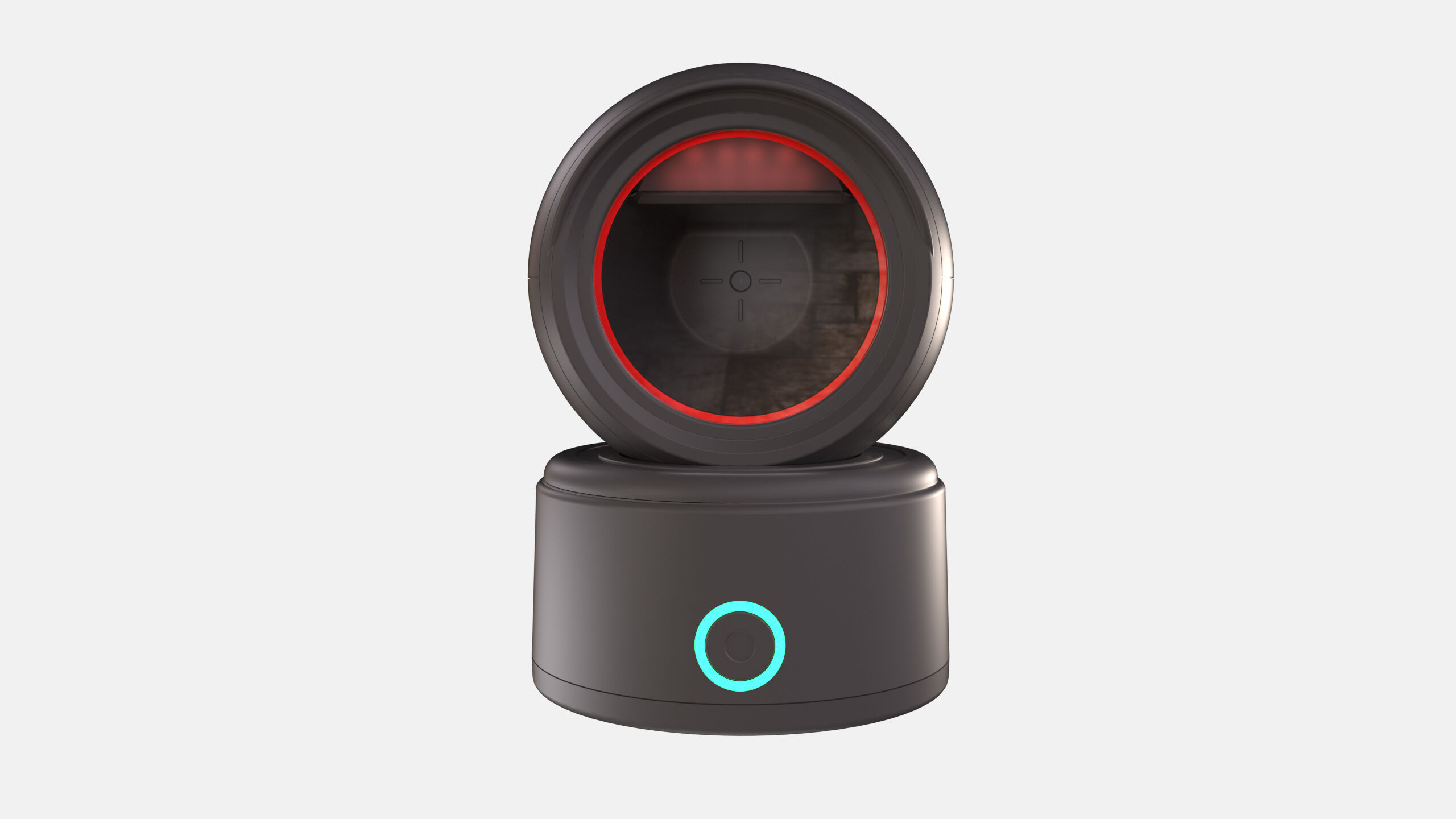

Desktop 2D Barcode Scanner USB New Design 300scans/sec

Product Information

Model Number
T-D5
Brand Name
TEKLEAD
Origin
China
Small Orders
Accepted

Key Specifications/ Special Features

Product Parameters


Weight (scanner)About 280g (without cable)
SizeL85mm * W92.5mm * H125mm
Cable length1.8 meters
Interface type10PIN Crystal head
Working VoltageDC 5V
Electric current280mA (WORK)
Communication modesUSB (USB-KBW,USB-COM), RS232
SensorCMOS
Resolution640*480
Resolution≥4mil/0.1mm (PCS90%, CODE 39)
Scan depth0mm~380mm(different codes scan range)
Scan speed300scans/sec
Reading modeContinuous
IndicatorBuzzer
Field of view angle48° * 36°
Scan AngleTest Conditions:CODE39,10mil/0.25mm, PCS90%                                                                             Roll: ±360°, Pitch:±65°, Skew: ±60°
Print Contrast≥20%
Environment LightDark environment, indoor natural light,
Decode Capabilities1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Codabar (NW-7), MSI, GS1 Databar, etc.
2D: QR Code, Data Matrix, PDF417, Hanxin, etc.
Working temperature-20℃ to 50℃
Storage temperature-40℃ to 60℃
Working humidity5% to 95% (No condensation)
Transport vibration test10H@125RPM



for more information, contact us for more details: aileen.shao (at) gzteklead (dot) com


Details Images







Product Parameters


Weight (scanner)About 280g (without cable)
SizeL85mm * W92.5mm * H125mm
Cable length1.8 meters
Interface type10PIN Crystal head
Working VoltageDC 5V
Electric current280mA (WORK)
Communication modesUSB (USB-KBW,USB-COM), RS232
SensorCMOS
Resolution640*480
Resolution≥4mil/0.1mm (PCS90%, CODE 39)
Scan depth0mm~380mm(different codes scan range)
Scan speed300scans/sec
Reading modeContinuous
IndicatorBuzzer
Field of view angle48° * 36°
Scan AngleTest Conditions:CODE39,10mil/0.25mm, PCS90%                                                                             Roll: ±360°, Pitch:±65°, Skew: ±60°
Print Contrast≥20%
Environment LightDark environment, indoor natural light,
Decode Capabilities1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Codabar (NW-7), MSI, GS1 Databar, etc.
2D: QR Code, Data Matrix, PDF417, Hanxin, etc.
Working temperature-20℃ to 50℃
Storage temperature-40℃ to 60℃
Working humidity5% to 95% (No condensation)
Transport vibration test10H@125RPM



for more information, contact us for more details: aileen.shao (at) gzteklead (dot) com
