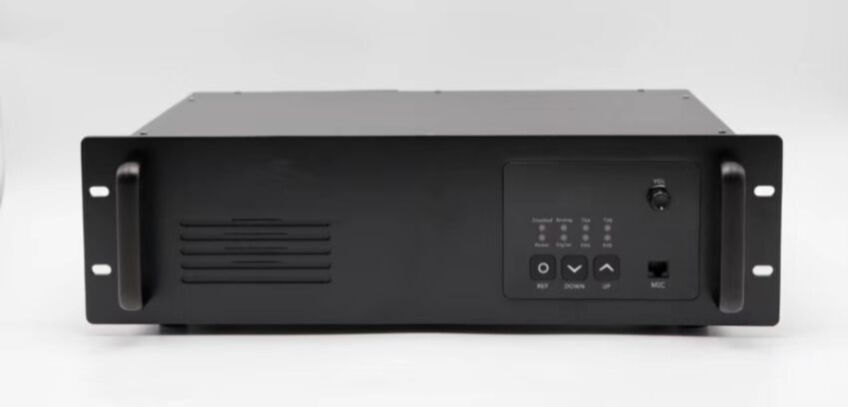

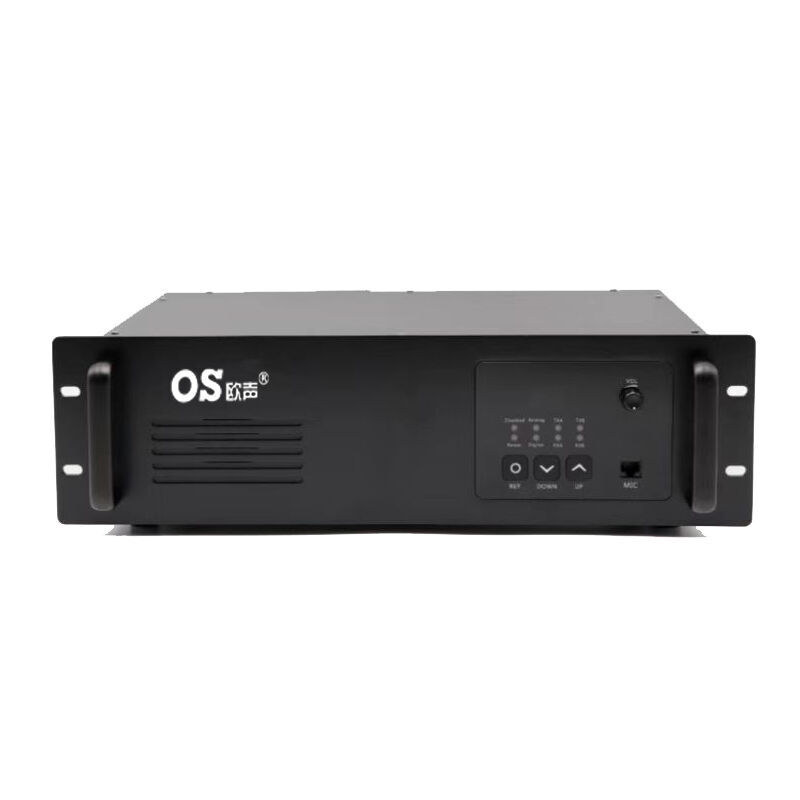

DMR /Analog Repeater Professional

General indicators

Frequency range: 400 ~ 520Mhz or PMR  446mHZ / 462mHZ .

Number of channels: 55

Channel spacing: 12.5KHz/25KHz.

Frequency stability: ±2.5ppm.

Antenna impedance: 50Ω.

Working voltage: Rated DC7.4V.

Battery capacity:10000mAh (lithium battery).

Receiver

Receiver sensitivity: ≤0.2μV

Adjacent channel selectivity: 60dB

Clutter response: ≥60dB

Rated audio power: 0.8W

Rated audio distortion: <5%

Audio output:≥500mW

Environmental indicators

Working temperature: -30°C~+60°C

Storage temperature: -40°C ~ +85°C

Transmitter

Transmit power: 1-30W

FM modulation method: F3M

Adjacent channel power:  60dB

Max Frequency Deviation: ±5KHz

Audio distortion: <5%
