Durable HDMI 4X2 MATRIX SWITCHER WITH AUDIO EXTRACTION

INTRODUCTION:

This switch is a true 4K60 4:4:4 4x2 HDMI matrix switch. Supporting HDMI 2.0,

HDCP 2.2, HDR and up to 18 Gbps bandwidth. This switch allows any source

(Blu-ray,UHD Blu-ray, satellite receiver, game consoles, PCs, etc...) to be shown

on any of the connected displays. Support 2 way audio extraction and ARC

function, it can provide independent Analog audio output by 3.5mm phone jack

and digital audio output by Optical&Coaxial. Support the EDID management

function for better compatibility.

FEATURES:

● Supports uncompressed audio such as LPCM.

● Supports Ultra HD 4Kx2K@60Hz.

● Supports 3D.

● Supports Standard Audio,DSD Audio, and HD(HBR) Audio.

● Supports HDMI2.0, HDCP2.2, HDR Signal format

● Supports compressed audio such as DTS Digital, Dolby Digital, DTS-HD,

and Dolby TrueHD.

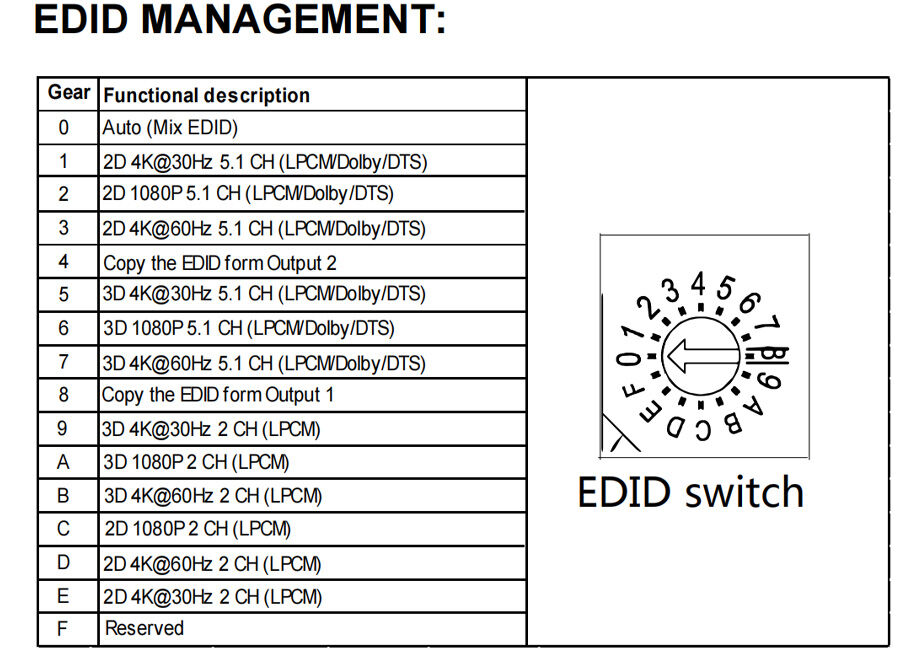

● Supports EDID management

● Supports 2 way audio extraction

● Support the 2 way ARC (Audio Return Channel).

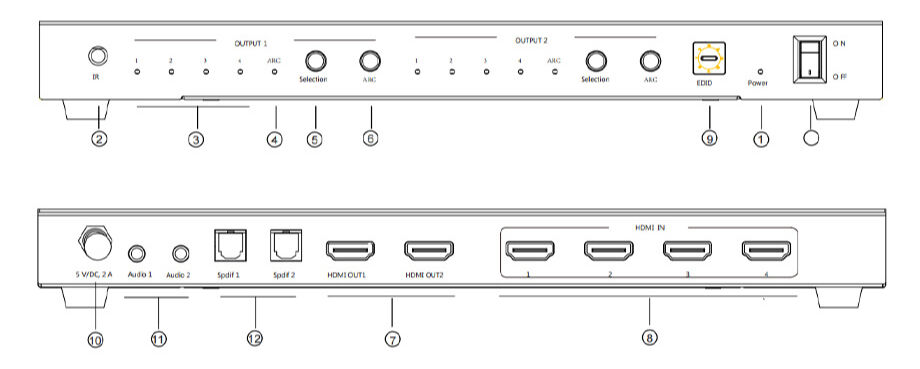

PRODUCT OVERVIEW:

1. Power LED

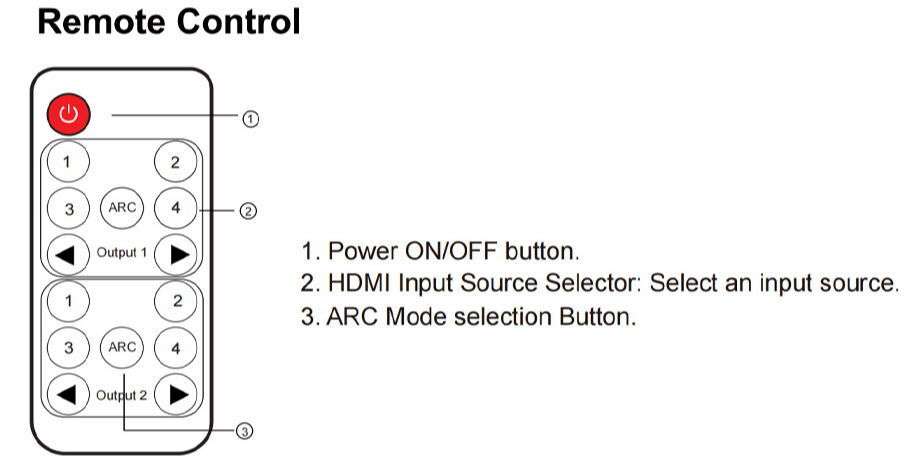

2. Infrared for Remote Control

3. HDMI Input LED Indicators

4. Audio Return Channel(ARC) LED Indicator

5. Input Port selection Button

6. ARC Mode selection Button

7. HDMI Output Port

8. HDMI Input Port

9.EDID management Switsh

10. Power Input Port

11. Analog audio output port

12. Digital audio output port

PACKAGE CONTENTS:

● 1x Main unit

● 1x Remote Control

● 1x User Manual

● 1x Power adapter
