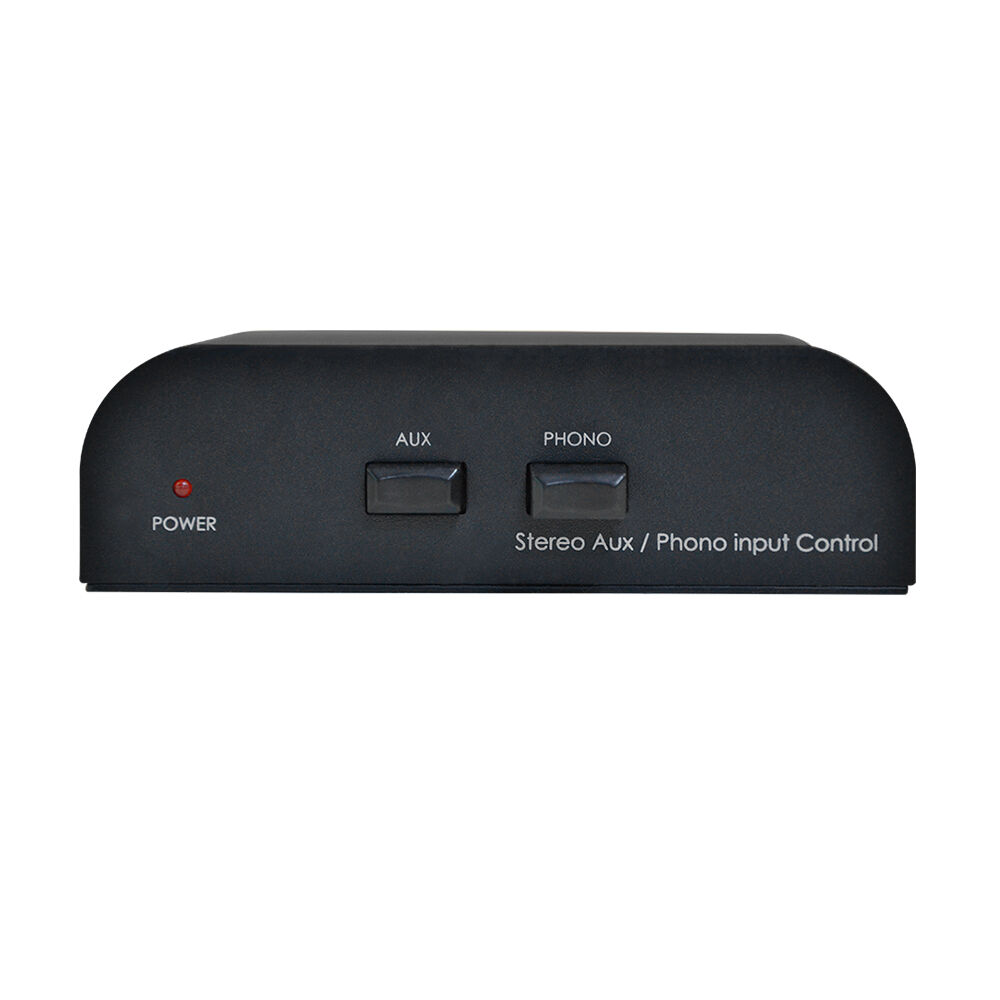

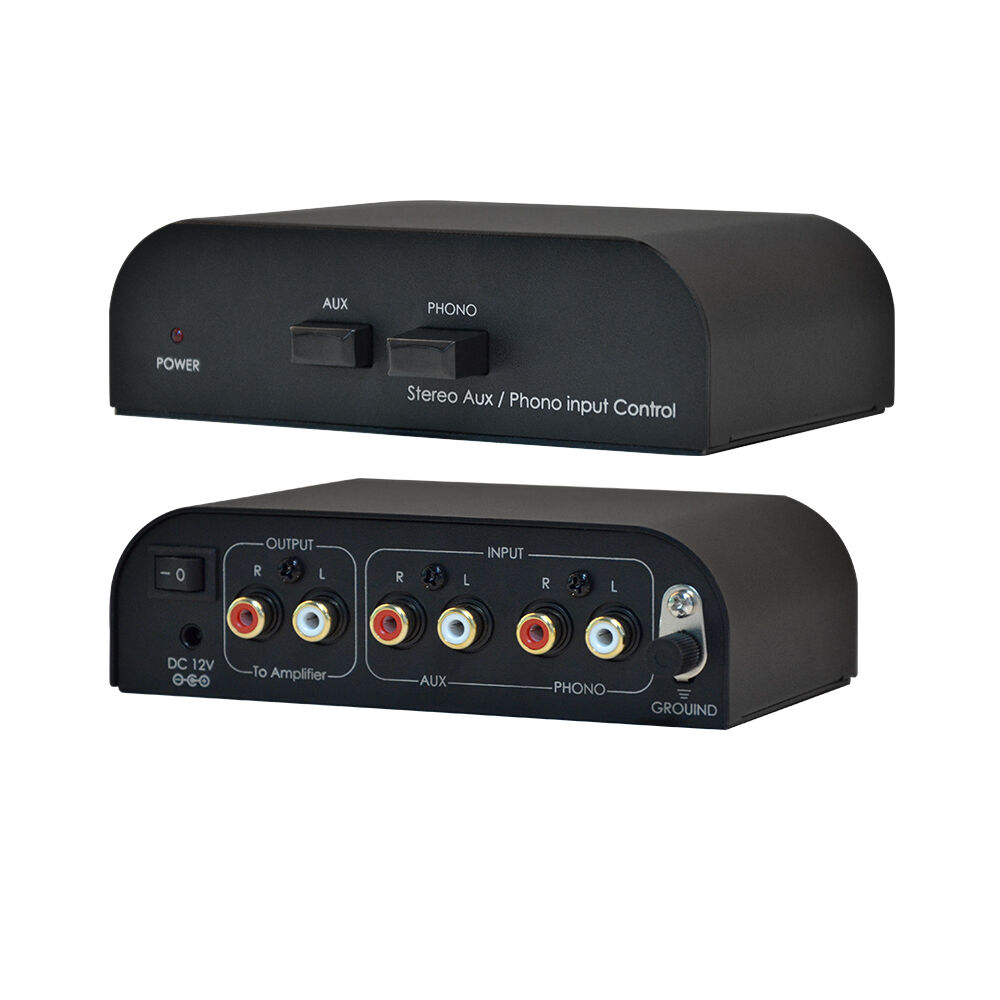

Durable STEREO AUX/PHONO INPUT CONTROL

INTRODUCTION:

This a pre-amplifier that you can use to connect an (extra) turntable

to your speakers.

The product is intended for indoor use only.

The product is not intended for professional use.

Any modification of the product may have seq

uences for

safety, warranty and proper functioning.

Using the ground wheel:

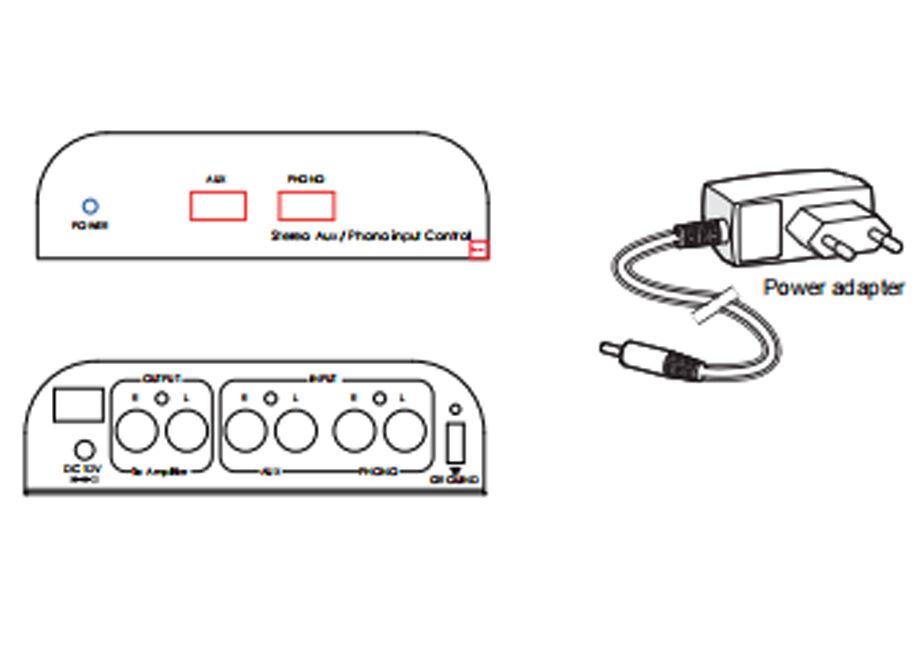

PACKAGE CONTENTS:

● 1x Main unit

● 1x User Manual

● 1x DC Power Adapter

PACKAGE CONTENTS:

● Check if your turntable got a built-in amplifier.

If you have got a built-in amplifier, you do not have to use the

ground wheel A 5 , but if you want to use the pre-amplifier,

switch off your built-in amplifier.

Follow these steps to connect earth to ground:

- Do not use any tools.

1. Turn A 5 counter clockwise.

2. Insert a ground cable (not included) from your turntable into

A 5 .

3. Turn A 5 clockwise to fix A 5 back in place.

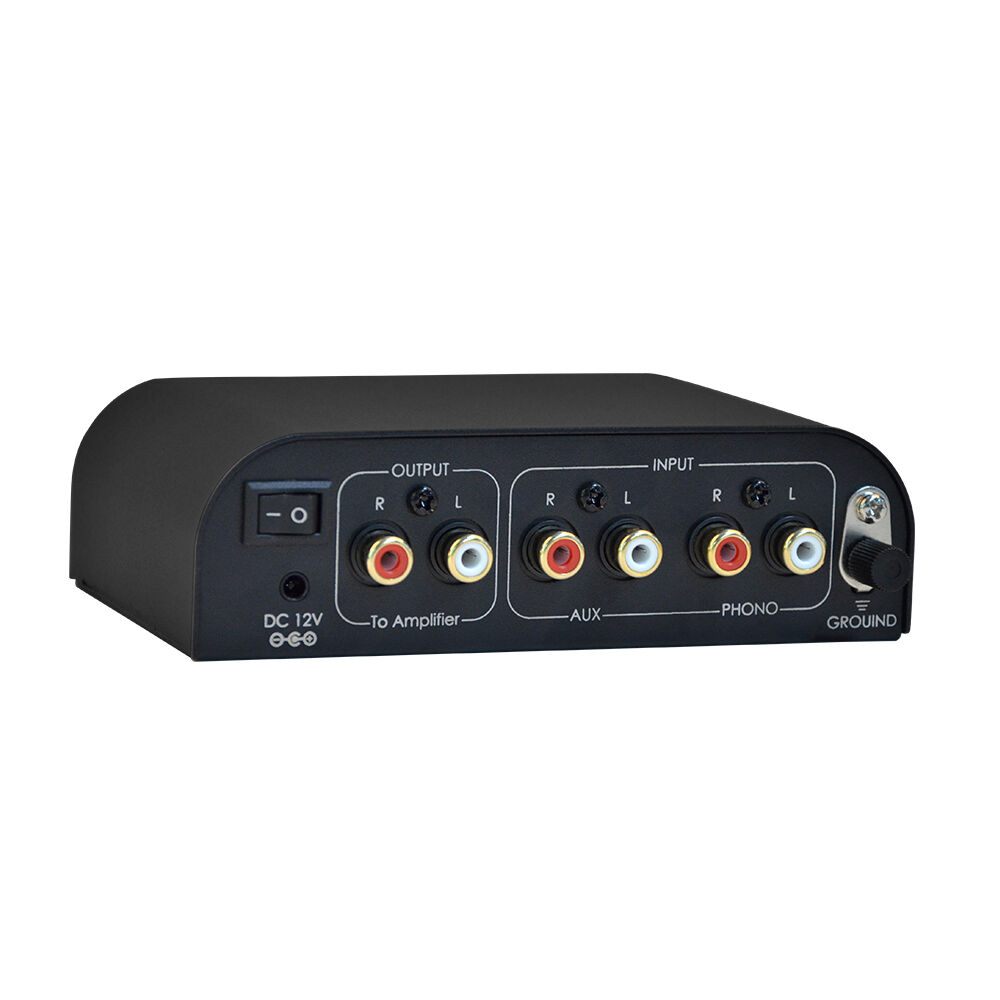

Connecting the product

4 Make sure all the devices are switched off before

connecting the product.

1. Plug a turntable into the RCA input A 3 using a twin RCA

cable (not included).

2. Plug the speakers into the RCA output A 4 using a twin RCA

cable (not included).

3. Plug the power adapter A 7 into the power input A 6 .

4. Plug the power adapter into a power outlet.

Using the product

● Use the power switch A 2 to switch the product on or off.

The power indicator LED A 1 lights up.

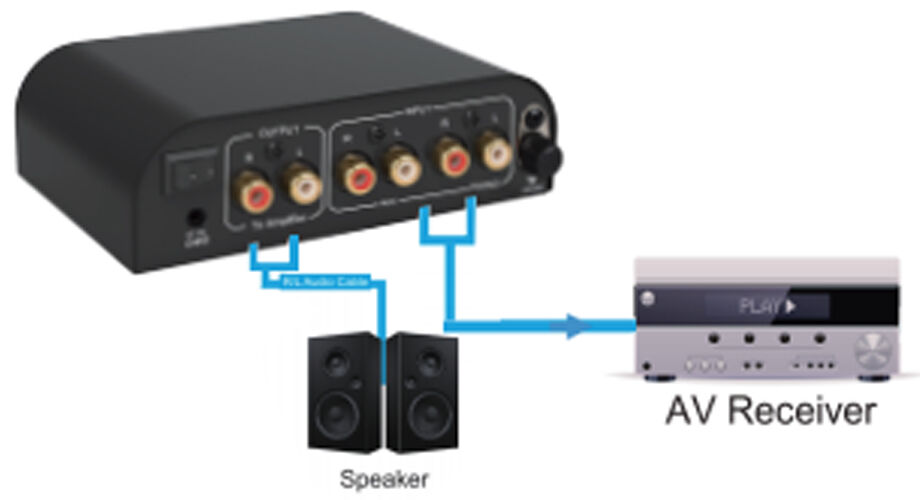

CONNECTION DIAGRAM:

PACKAGE CONTENTS:

Colour: Black

Sound output : Stereo

Weight: 320 g

Input current : 0.2 A

                         0.20 A

Input voltage: 100 - 240 VAC 50/60Hz

Number of channels: 2 Channels

Max. output: 2.6 V / 1 KHz

Input overload margin: 39 dB

RIAA deviation response: 20 Hz - 20 kHz (± 0,5dB)

Nominal output: 330 mv / 1 kilo-ohm

Total harmonic distortion (THD): Less than 0.006%

Output impedance : 1 kOhm

Connection input: 2x (2x RCA)

Connection output: 1x (2x RCA)

Device power input connection(s) : DC Power Plug

Input control : Phono

                         AUX

                         Turntable

Function control : Manual

Input impedance: 47 kOhm
