Product Information
Key Specifications/ Special Features
Working principle
The optical switch adopts infrared optical sensing technology, uses infrared tubes (infrared emission tubes and infrared receiving tubes) to replace the metal reed of the traditional mechanical switch, converts the traditional mechanical signals into optical signals, and drives the light blocker by pressing to cut off or conduct infrared light, and then generates signals.
Advantages
It can be triggered as fast as lightning, the switch response time can reach the extreme speed of 0.2ms. When the switch is working, there is no metal contact, no wear, no conduction jitter, no noise, but with stable function and service life of more than 100 million times; Its action is sensitive, the rebound is smooth, the switch is matched with the infrared tube, and the dustproof and waterproof grade is IP: 58, and the environmental adaptability is strong; The color of switch body can be customized.

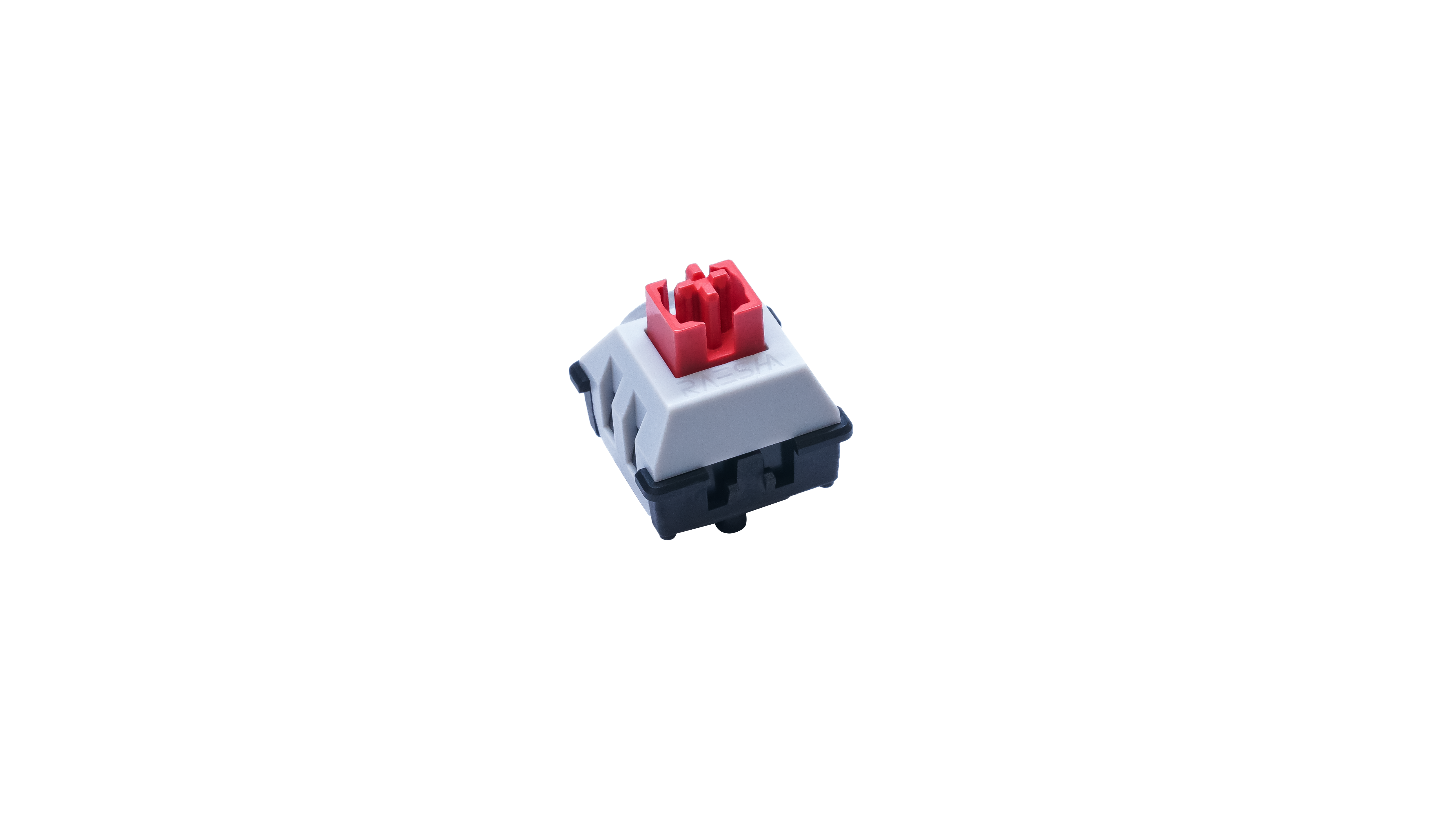

Fire switch-Linear
The hand feeling of flame is full of the permeated intense passion, with strong press hand feeling and soft key sound
Total travel： 4.0±0.5mm
Operating force：35±10gf
Type：Linear
Working principle
The optical switch adopts infrared optical sensing technology, uses infrared tubes (infrared emission tubes and infrared receiving tubes) to replace the metal reed of the traditional mechanical switch, converts the traditional mechanical signals into optical signals, and drives the light blocker by pressing to cut off or conduct infrared light, and then generates signals.
Advantages
It can be triggered as fast as lightning, the switch response time can reach the extreme speed of 0.2ms. When the switch is working, there is no metal contact, no wear, no conduction jitter, no noise, but with stable function and service life of more than 100 million times; Its action is sensitive, the rebound is smooth, the switch is matched with the infrared tube, and the dustproof and waterproof grade is IP: 58, and the environmental adaptability is strong; The color of switch body can be customized.

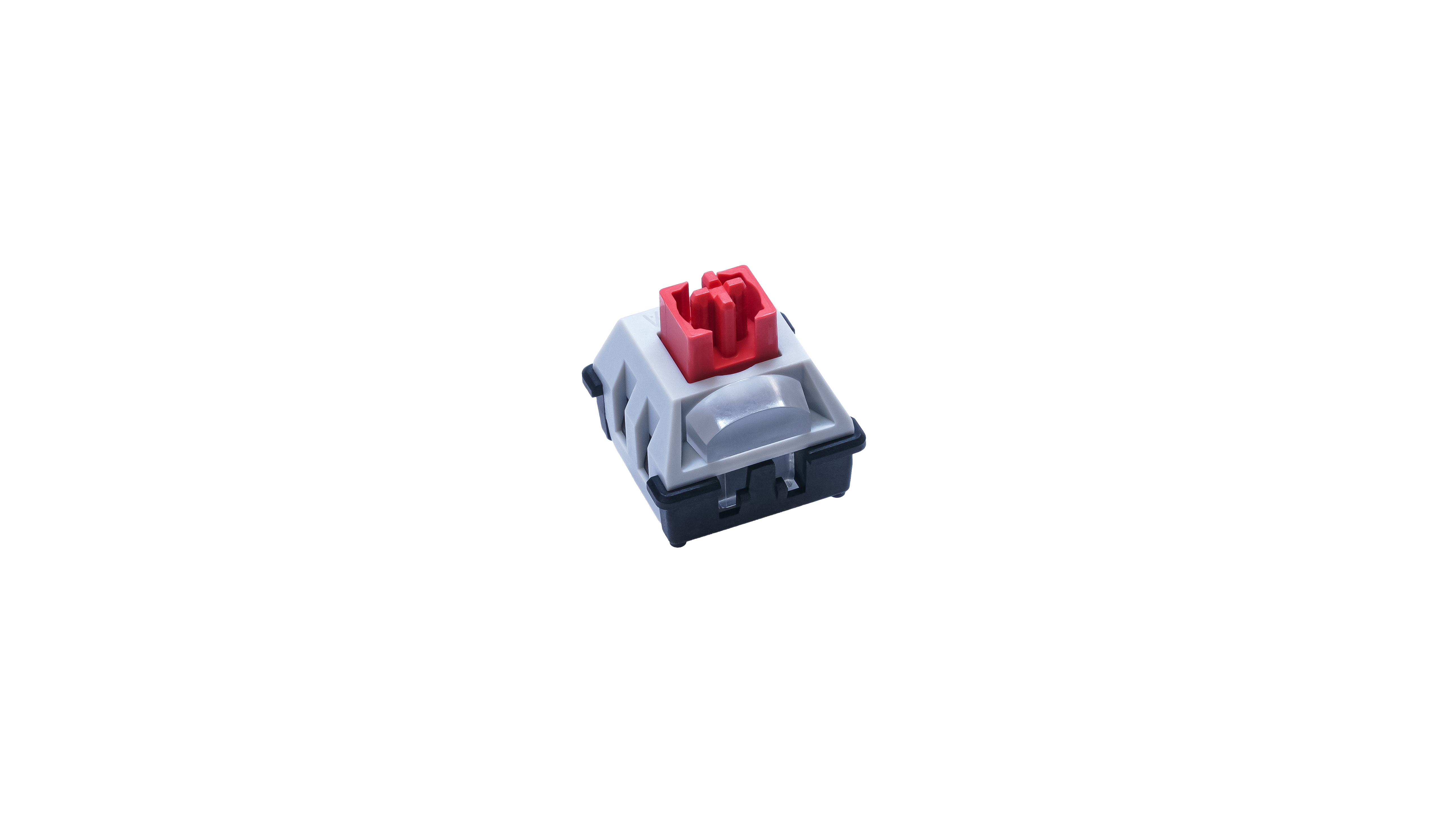

Fire switch-Linear
The hand feeling of flame is full of the permeated intense passion, with strong press hand feeling and soft key sound
Total travel： 4.0±0.5mm
Operating force：35±10gf
Type：Linear
