Product Information
Key Specifications/ Special Features

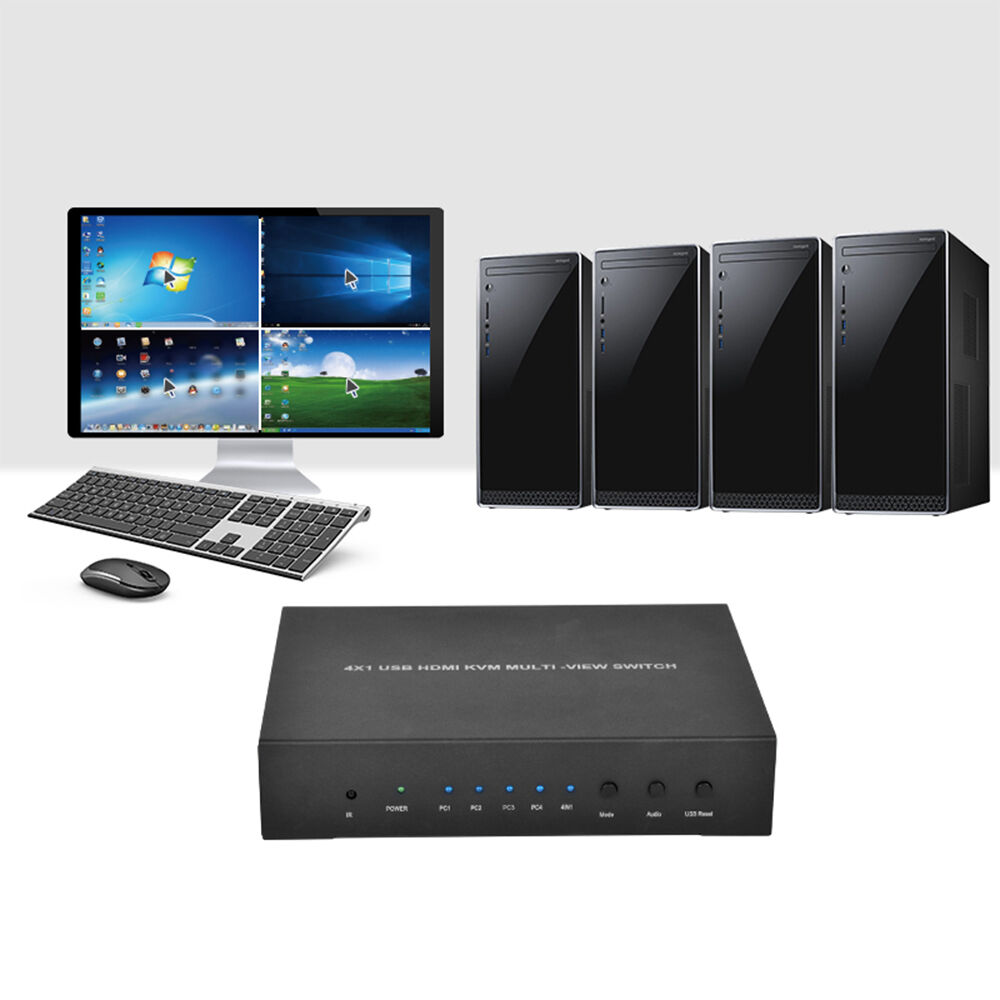

INTRODUCTION:
The KVM switcher allows 4 PCs with HDMI ports to share one display and
one keyboard&mouse, allowing the display to switch seamlessly between 4
PCs. In addition, it supports the unique 4-in-1 Multi-Viewer mode, which
allows you to operate 4 PCs with a keyboard&mouse on the same screen
without switching.It provides 2 additional USB 2.0 sharing ports,allow 4 PCs
to share one printer or other USB2.0 device
It supports resolutions of up to 1080p@60Hz . Also, It is fully compatible
with a wide variety of Windows and Mac OS operating systems
The product can be controlled by various ways, through the mouse

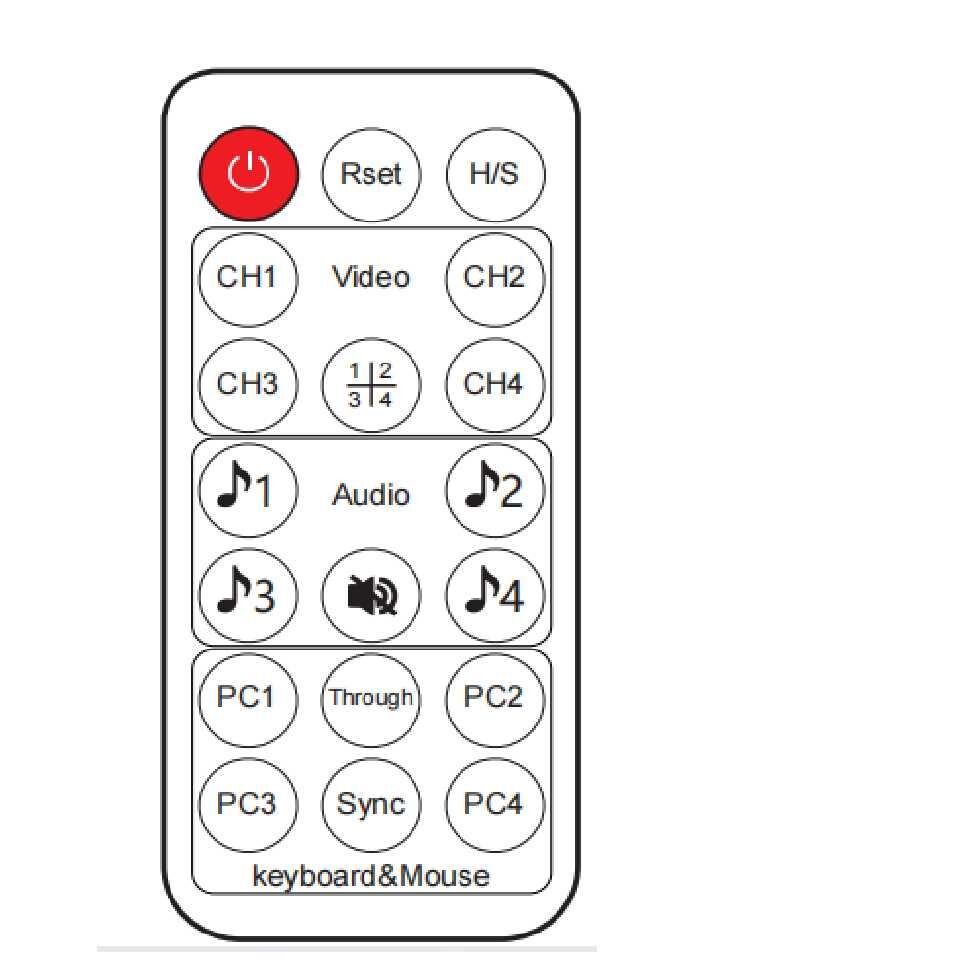

button,keyboard Hot key,front panel button, IR control, etc.
APPLICATION:
● Video Switcher
● Surveillance for multi camera
● Car quad monitor
● Video format converter
● Multimedia panel
FEATURES:
● Compliant with HDMI 1.3a, HDCP 1.2
● Supports multiplexed HDMI 4-input and 1-output
● Supports up to 1080p@60Hz High Definition resolution
● Support 4 by 1 Quad Multi-viewer and seamless switch(with same
resolution)
● Support seamless switch
● Supports the unique 4-in-1 Multi-Viewer mode, which allows you to
operate 4 PCs with a keyboard&mouse on the same screen without
switching
● Support mouse button,keyboard hot keys,front panel button, IR control
● Support multi output resolution

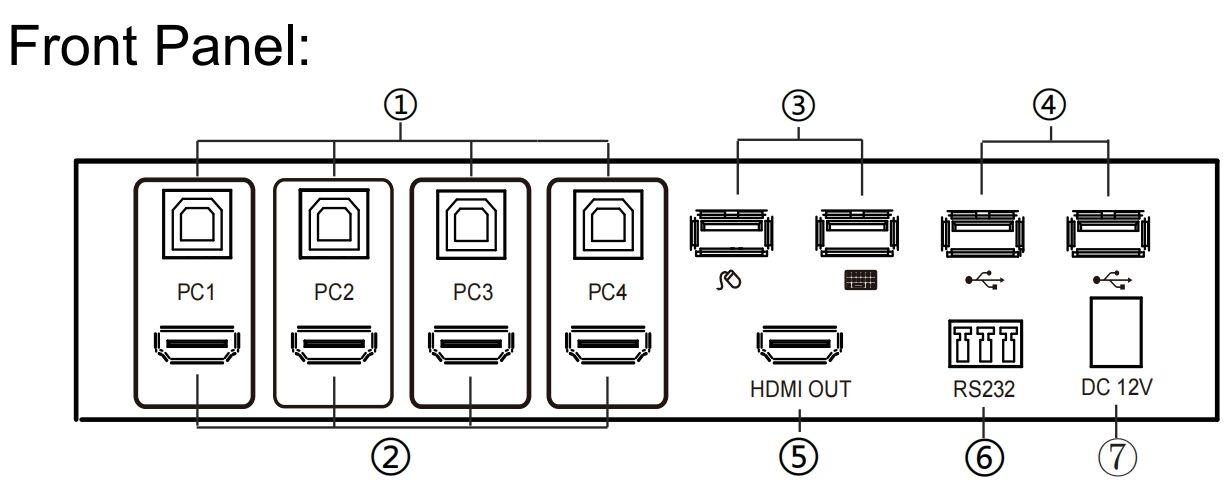

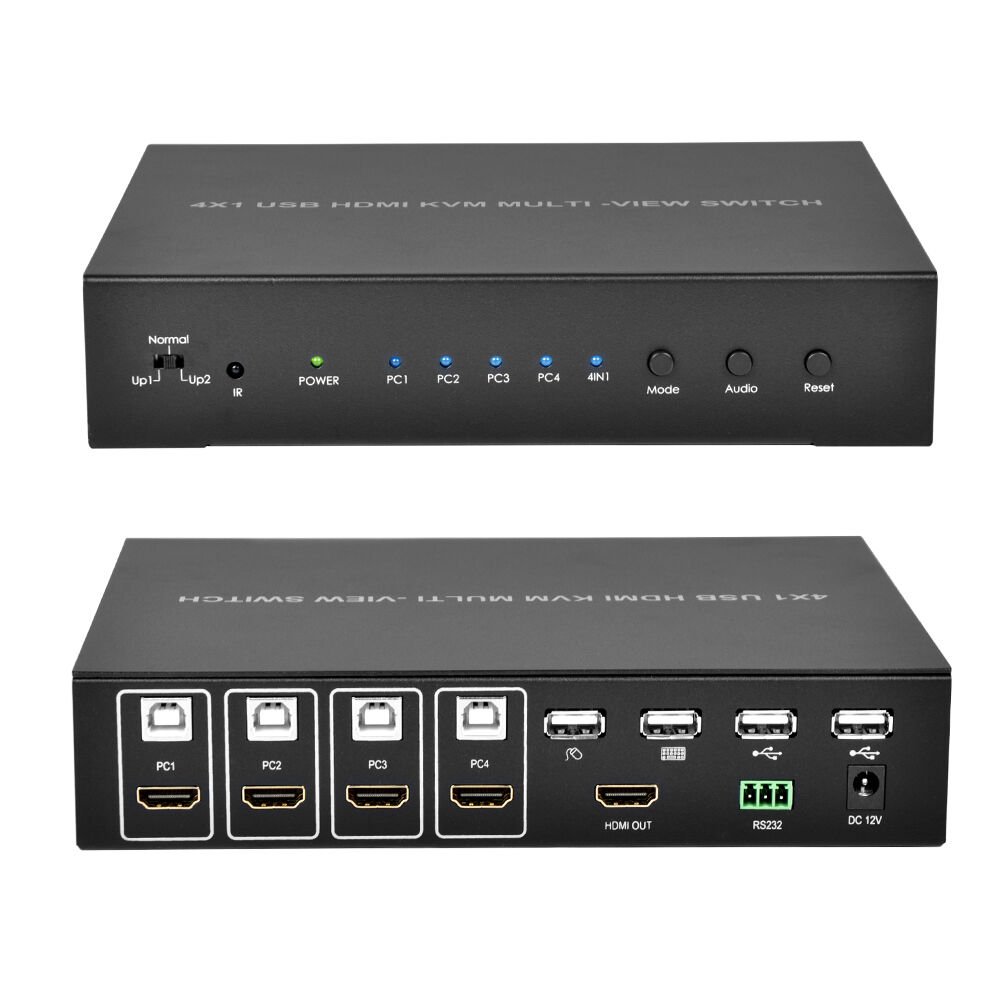

OVERVIEW: HDMI SWITCH
1. Connect to USB ports of 4 PCs respectively
2. Connect to HDMI ports of 4 PCs respectively
3. Connect the keyboard&mouse
4: Provides 2x additional USB 2.0 sharing ports,connect the US B2.0 devices
(such as U-Disk, Printer..)
5: HDMI OUTPUT: The HDMI is where you connect the HDTV or monitor with
HDMIcable for input source display

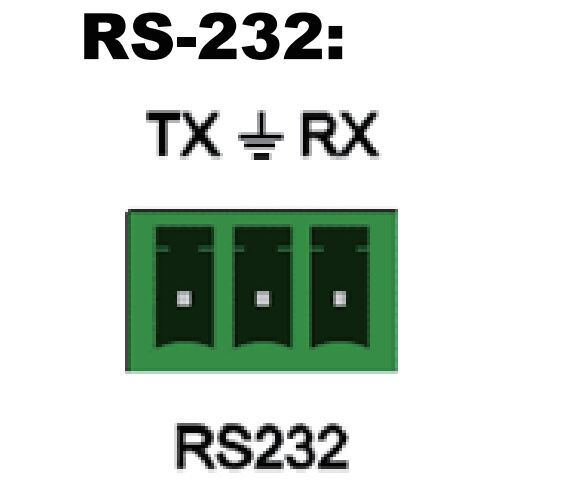

6: RS232: Upgrade data
7: DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor
to AC wall outlet

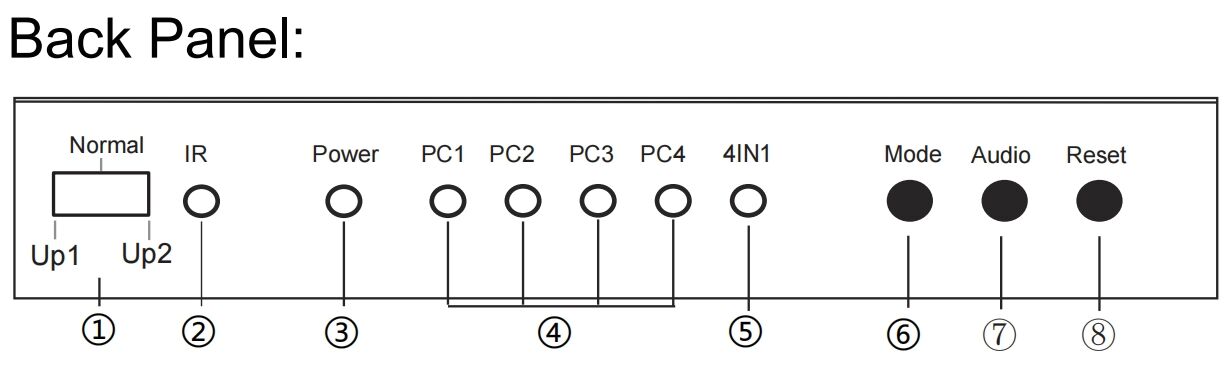

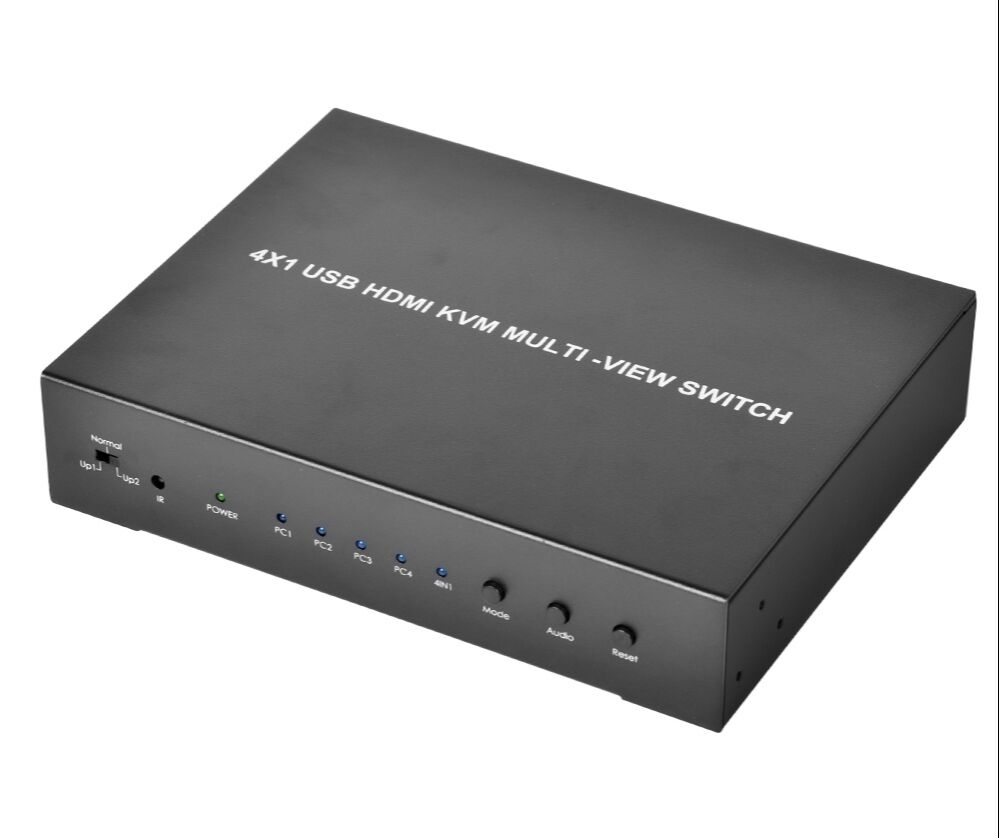

1. Updata function select switch
Normal : This is where you must dial for normal use
Up_1: Upgrade data for MCU_1 via RS232
Up_2: Upgrade data for MCU_2 via RS232
2. IR :Remote control receiver windo w.
3. POWER LED: This blue LED illuminates when the device is connected with
power supply.
4. Input Mode LED: Indicate which Input Mode is selected

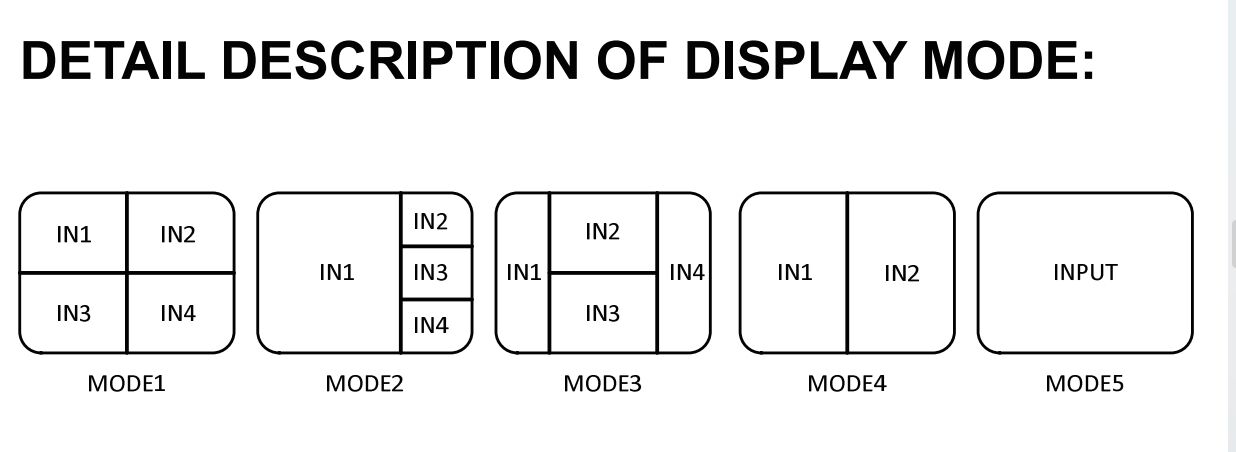

5. 4-in-1 Mode LED:Indicate which 4-in-1 Mode is selected
5. Mode Button: Press this button to select the Input Mode.
7. Audio Button: At the 4-in-1 Mode ,Press this button to select the audio from
the input sources
8. Reset Button: Press this button to Reset the KVM Switcher

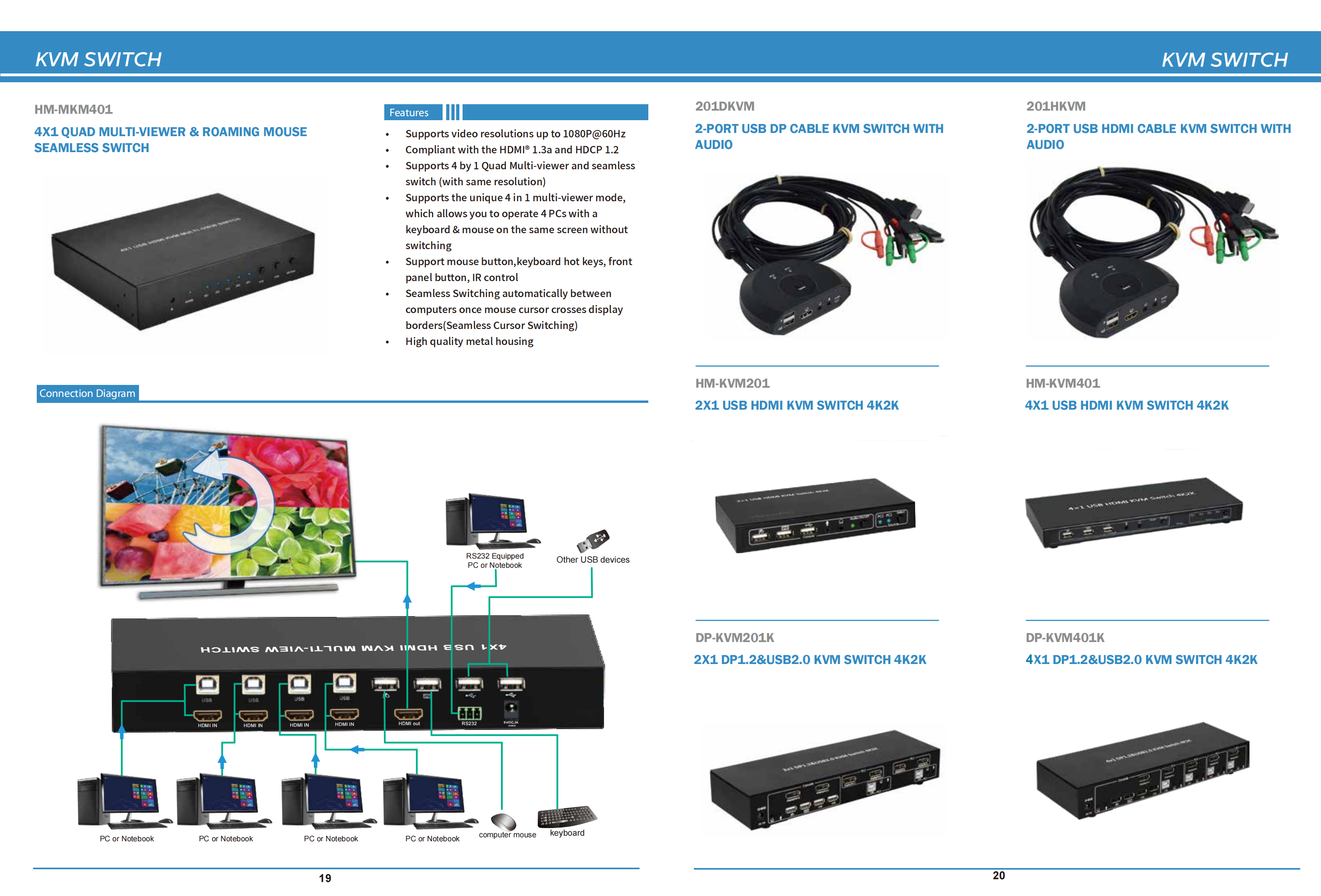

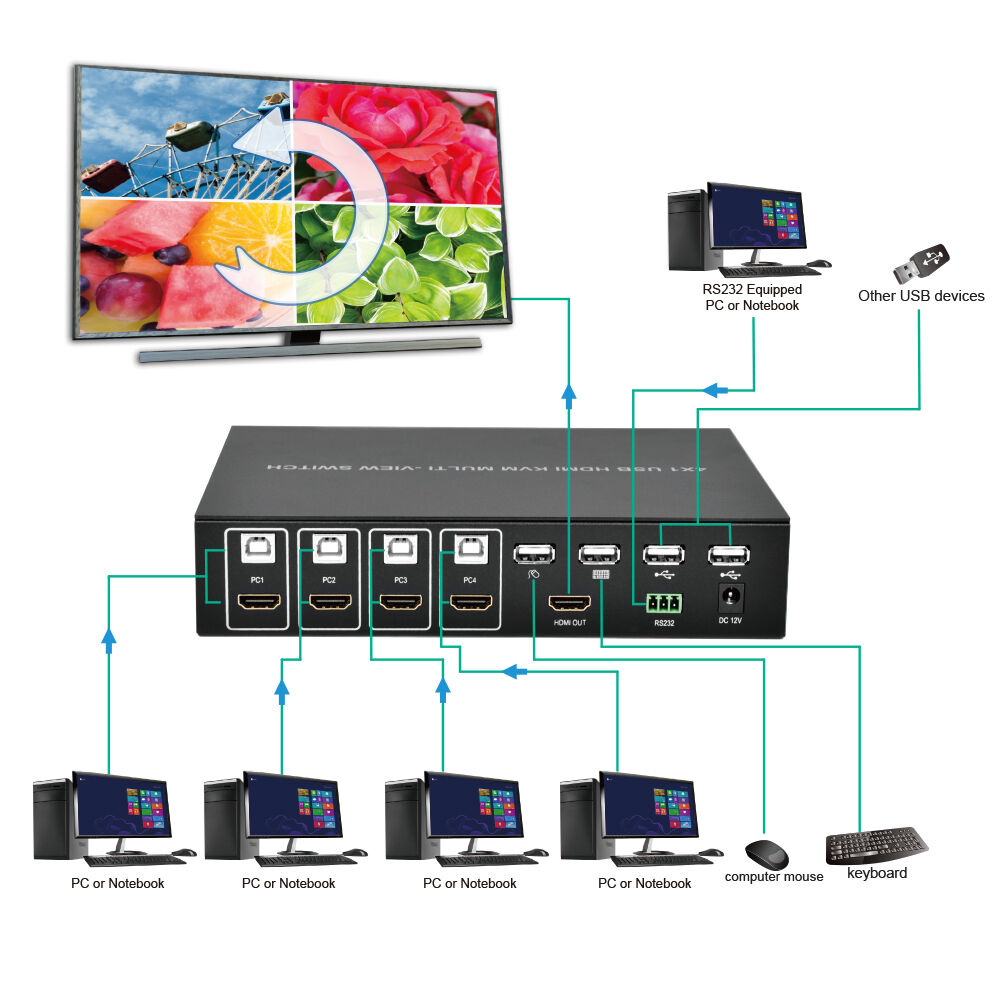

CONNECTION DRAWING: HDMISWITCH
SPECIFICATION: HDMI SWITCH
| Maximum Single Link Range | 1920x1080@60 |
| HDMI Input/Output Connector | Type A 19 pin |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.25Gbps |
| Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p24/25/30/50/60Hz |
| Output Resolution | 720p,1080p |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5~90% RH (no condensation) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| External Power Supply | 12V DC@2A |
| Power Consumption(max) | 24 W |

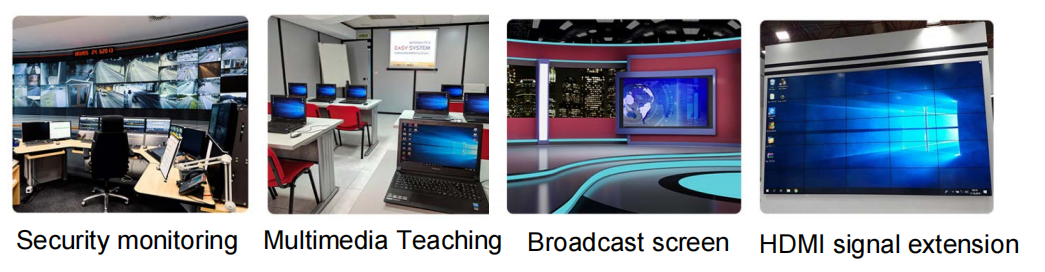

APPLICATION: HDMI EXTENDER
We believe that KVM SWITCH offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering KVM SWITCH. We look forward to the opportunity to work with you and help you achieve success.

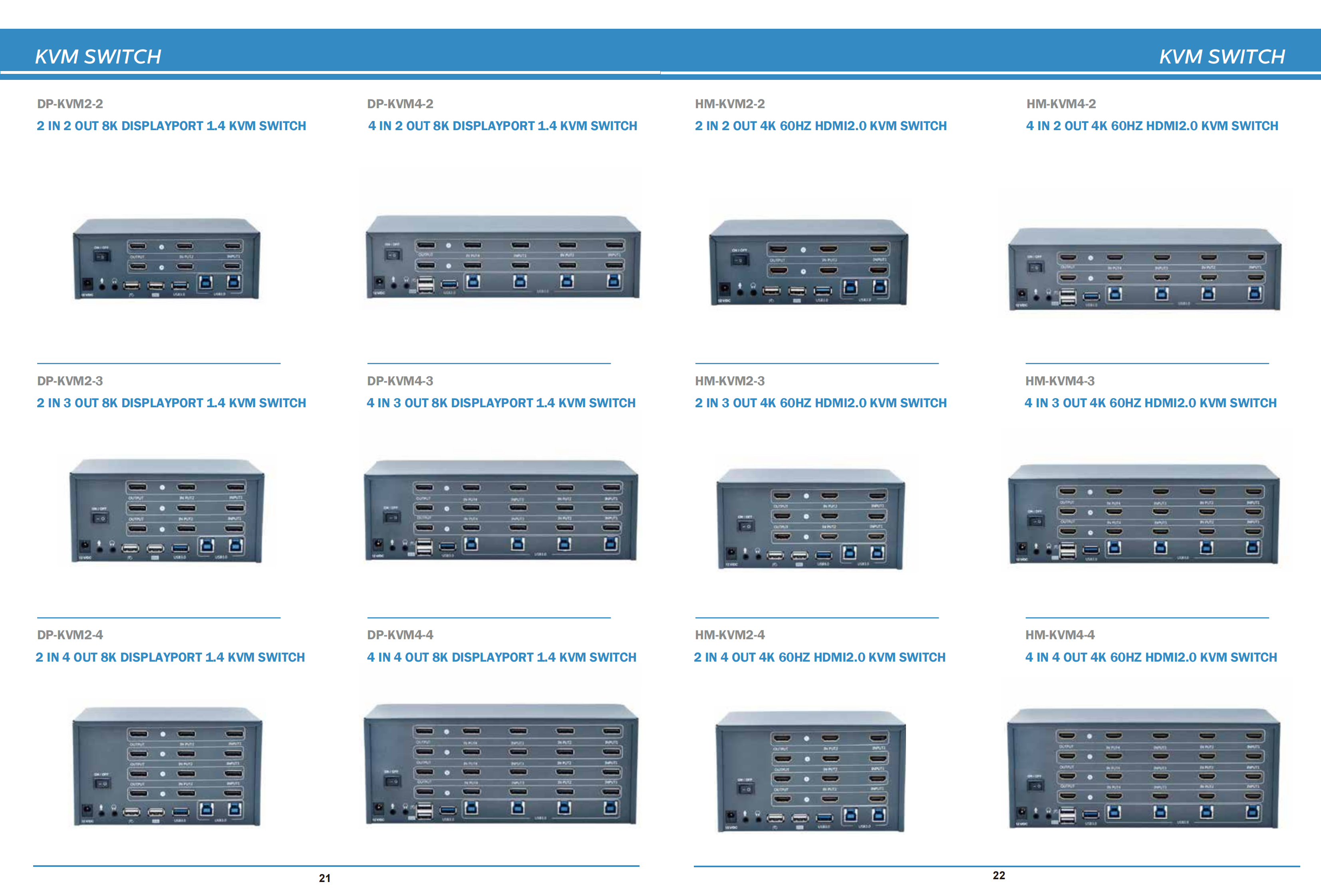

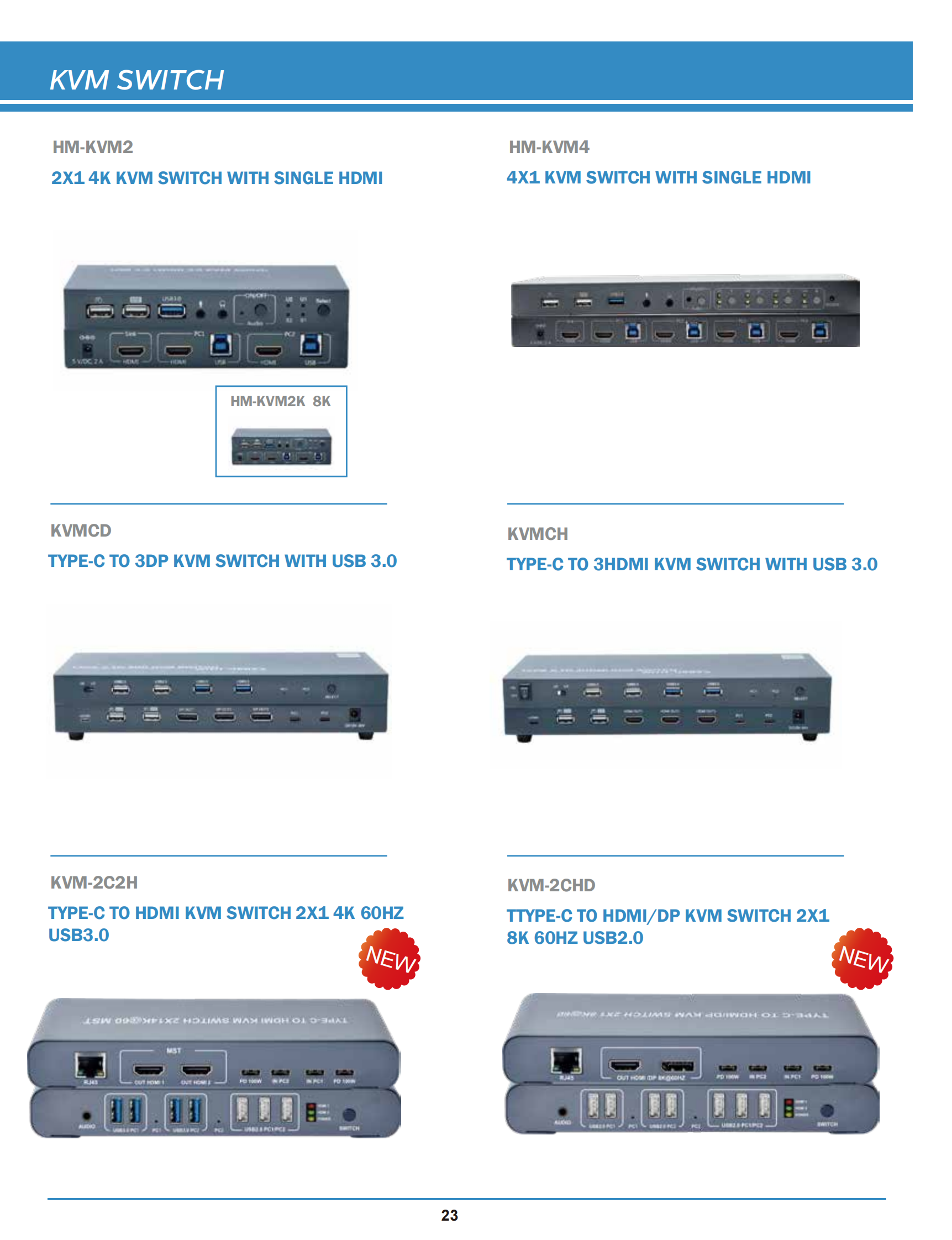

Other related hot products of KVM SWITCH that may be of interest to you.
1. Q: What is your company's experience and reputation in the industry?
A: Our company has been in hdmi extender / hdmi splitter / hdmi switch / kvw switch / hdmi converter / audio serier business more than 20 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
2. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD, Reach.
3. Q: Have your factory pass any company inspection?
A: Yes, Gmax technology have passed the ISO-9001 and amfori BSCI certification.
