Product Information
Key Specifications/ Special Features

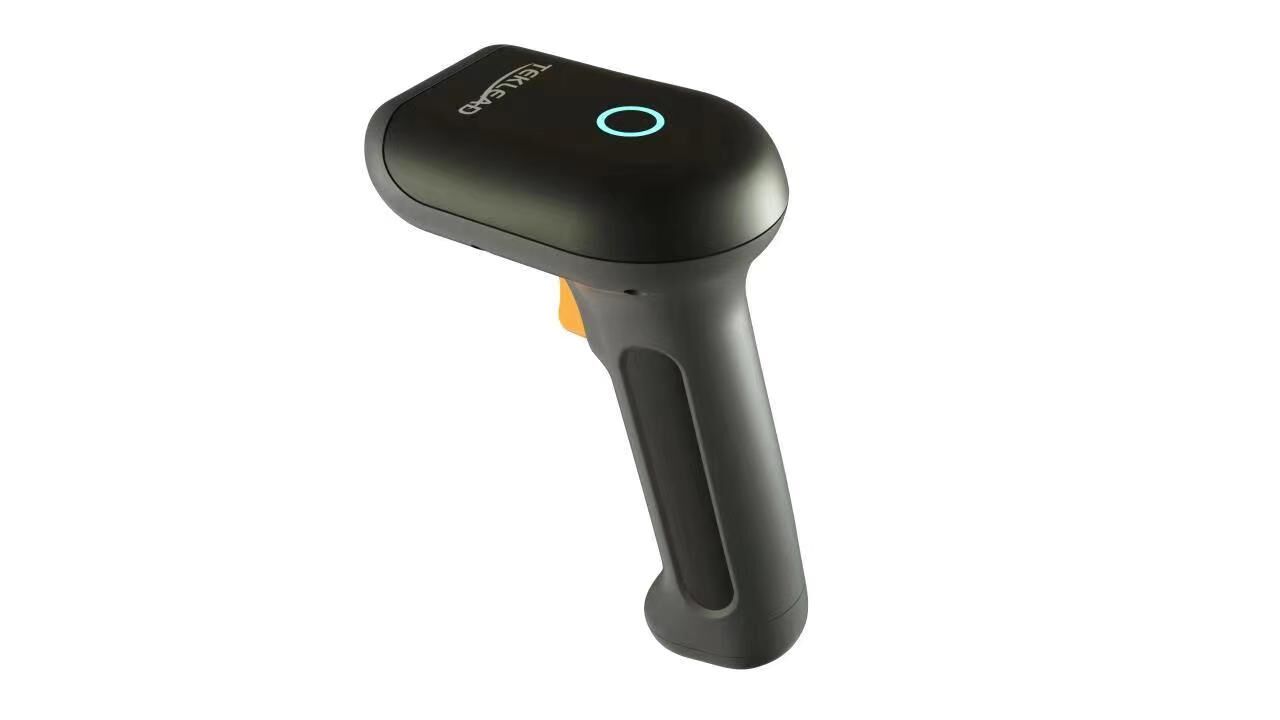

T-2009 is a stylish handheld 2D wired barcode scanner. It uses advanced CMOS image recognition technology, intelligent image recognition system, and is equipped with a 300,000-pixel global exposure camera and warm white lighting. It has good reading performance and can easily read the bar code on different media such as paper and goods and screens. It can be mainly used in mobile phone payment, commodity bar code scanning, etc.
| Communication Mode | Standard Configuration：USB（USB-KBW、USB-COM）、Order：RS232 |
| Sensor | CMOS global shutter |
| Pixel | 300,000(640*480) |
| Reading Precision | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Sighting Lamp | Red line aim light |
| Illumination | Warm white LED |
| Depth of Field | 40mm~330mm（Different bar code range） |
| Decoding Speed | 65CM/S |
| Reading Mode | Manual, Induction |
| Prompt Mode | LED, Buzzer |
| Reading Perspective | 43° * 33° |
| Reading Angle | Test Conditions：CODE39,10mil/0.25mm,PCS90% |
| Roll: ±360°，Pitch:±60°，Skew: ±55° | |
| Print Contrast | ≥20% |
| Ambient Illumination | Dark Environment, Indoor Natural Light |
| Code System | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Febraban，GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, etc. |
| Wire Length | 1.8 meters |
| Interface Type | USB male，DB9 female |
| Power Input | DC 5V 1A |
| Current | 180mA（Average Work）, 60mA(Standby) |
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Working Humidity | 5% to 95%（Non-Condensing） |
| Transportation Vibration | 10H@125RPM |
for more information, pls contact: aileen.shao (at) gzteklead.com
T-2009 is a stylish handheld 2D wired barcode scanner. It uses advanced CMOS image recognition technology, intelligent image recognition system, and is equipped with a 300,000-pixel global exposure camera and warm white lighting. It has good reading performance and can easily read the bar code on different media such as paper and goods and screens. It can be mainly used in mobile phone payment, commodity bar code scanning, etc.
| Communication Mode | Standard Configuration：USB（USB-KBW、USB-COM）、Order：RS232 |
| Sensor | CMOS global shutter |
| Pixel | 300,000(640*480) |
| Reading Precision | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Sighting Lamp | Red line aim light |
| Illumination | Warm white LED |
| Depth of Field | 40mm~330mm（Different bar code range） |
| Decoding Speed | 65CM/S |
| Reading Mode | Manual, Induction |
| Prompt Mode | LED, Buzzer |
| Reading Perspective | 43° * 33° |
| Reading Angle | Test Conditions：CODE39,10mil/0.25mm,PCS90% |
| Roll: ±360°，Pitch:±60°，Skew: ±55° | |
| Print Contrast | ≥20% |
| Ambient Illumination | Dark Environment, Indoor Natural Light |
| Code System | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Febraban，GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, etc. |
| Wire Length | 1.8 meters |
| Interface Type | USB male，DB9 female |
| Power Input | DC 5V 1A |
| Current | 180mA（Average Work）, 60mA(Standby) |
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Working Humidity | 5% to 95%（Non-Condensing） |
| Transportation Vibration | 10H@125RPM |
for more information, pls contact: aileen.shao (at) gzteklead.com
