Product Information
Key Specifications/ Special Features
Product Name
High-Speed Data Communication Cable Assemblies for Networking and Industrial Systems
Search Keywords
data communication cable, network cable assembly, Ethernet cable harness, signal transmission cable
Model Number
EDG-DCC-150
| Parameter | Specification |
|---|---|
| Application | Networking, industrial Ethernet, routers, IoT gateways, and communication devices |
| Connector Type | RJ45 / RJ12 / RJ11 / M12 / USB / D-sub / Custom |
| Cable Type | Twisted pair shielded Cat5e / Cat6 / Cat7 / RS-232 / RS-485 / CAN / J1939 |
| Transmission Speed | Up to 10 Gbps (Cat6A / Cat7) |
| Impedance | 100 ±15 Ω |
| Conductor Material | Stranded or solid copper, tinned or bare |
| Insulation Material | HDPE / PVC / TPE / LSZH |
| Shielding | Aluminum foil + braided copper mesh for EMI protection |
| Operating Voltage | 5V / 12V / 24V DC (signal and power hybrid optional) |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP67 / IP68 (optional waterproof M12 connectors) |
| Standards Compliance | ISO9001, UL, TIA/EIA-568, IEC11801, RoHS, REACH |
| Testing | Continuity, impedance, signal integrity, and crosstalk testing |

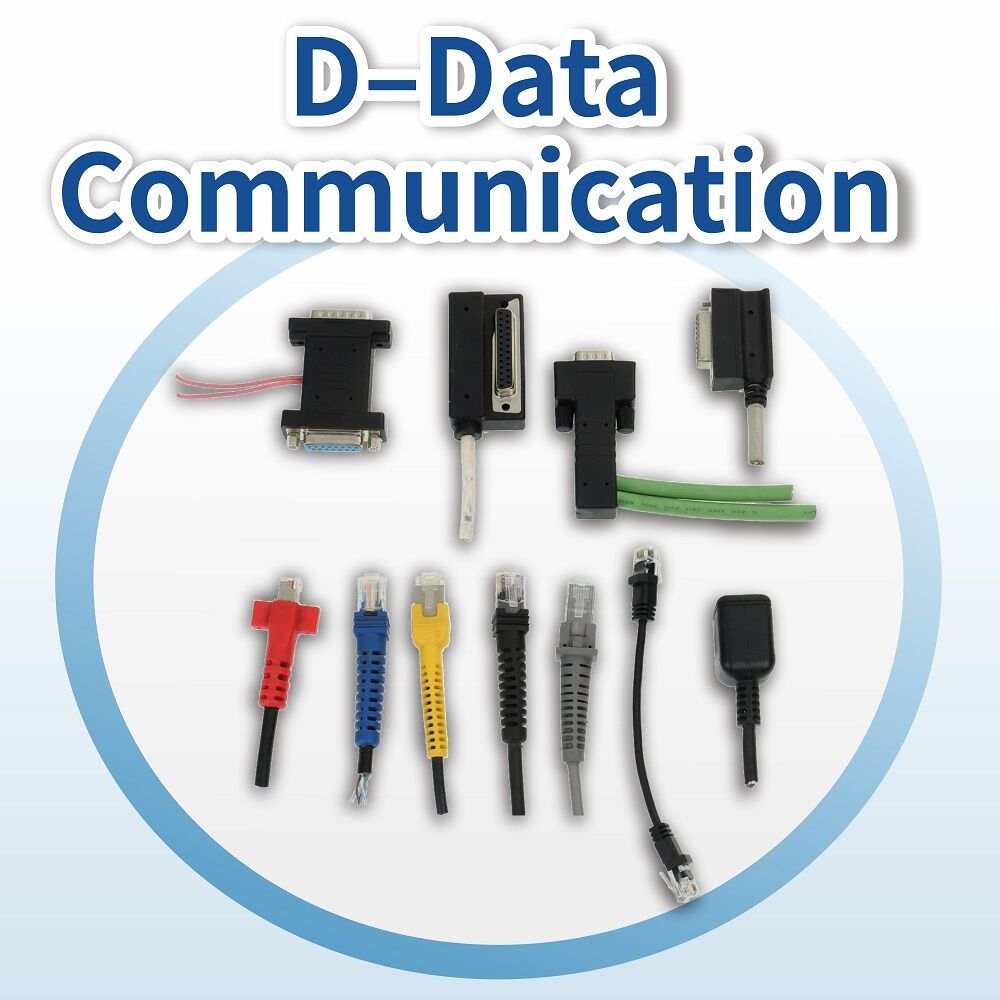

The data communication cable assembly is engineered to provide high-speed and stable data transmission across industrial, commercial, and IT networking systems. Designed for reliability and signal integrity, each cable harness uses high-quality twisted-pair conductors and precision-molded connectors to minimize interference and maintain consistent performance.
Our data communication cable assemblies include standard Ethernet (Cat5e, Cat6, Cat7), RS-232/RS-485 serial communication, CAN bus, and J1939 protocol cables. With optimized impedance and advanced shielding (foil + braid), these assemblies ensure minimal signal loss and excellent EMI/RFI protection even in high-frequency environments.
Edgar Auto Harnesses Ltd offers both standard and custom cable assemblies with connector options such as RJ45, M12, USB, D-sub, and circular connectors. Hybrid versions integrating both data and power lines are available for smart devices, cameras, and IoT modules.
Each assembly is tested for continuity, impedance matching, and signal integrity, complying with ISO9001, UL, and TIA/EIA-568 standards. Waterproof IP67/IP68 versions with molded connectors are ideal for outdoor or industrial applications requiring reliability under moisture and vibration.
Whether for office networks, industrial control systems, or communication equipment, our data communication cable assemblies deliver high performance, flexibility, and long-term durability.
Edgar Auto Harnesses Ltd
OEM / ODM • IPC/WHMA-A-620 Class 3 • ISO9001 • IATF16949 • UL • RoHS
Product Name
High-Speed Data Communication Cable Assemblies for Networking and Industrial Systems
Search Keywords
data communication cable, network cable assembly, Ethernet cable harness, signal transmission cable
Model Number
EDG-DCC-150
| Parameter | Specification |
|---|---|
| Application | Networking, industrial Ethernet, routers, IoT gateways, and communication devices |
| Connector Type | RJ45 / RJ12 / RJ11 / M12 / USB / D-sub / Custom |
| Cable Type | Twisted pair shielded Cat5e / Cat6 / Cat7 / RS-232 / RS-485 / CAN / J1939 |
| Transmission Speed | Up to 10 Gbps (Cat6A / Cat7) |
| Impedance | 100 ±15 Ω |
| Conductor Material | Stranded or solid copper, tinned or bare |
| Insulation Material | HDPE / PVC / TPE / LSZH |
| Shielding | Aluminum foil + braided copper mesh for EMI protection |
| Operating Voltage | 5V / 12V / 24V DC (signal and power hybrid optional) |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP67 / IP68 (optional waterproof M12 connectors) |
| Standards Compliance | ISO9001, UL, TIA/EIA-568, IEC11801, RoHS, REACH |
| Testing | Continuity, impedance, signal integrity, and crosstalk testing |
The data communication cable assembly is engineered to provide high-speed and stable data transmission across industrial, commercial, and IT networking systems. Designed for reliability and signal integrity, each cable harness uses high-quality twisted-pair conductors and precision-molded connectors to minimize interference and maintain consistent performance.
Our data communication cable assemblies include standard Ethernet (Cat5e, Cat6, Cat7), RS-232/RS-485 serial communication, CAN bus, and J1939 protocol cables. With optimized impedance and advanced shielding (foil + braid), these assemblies ensure minimal signal loss and excellent EMI/RFI protection even in high-frequency environments.
Edgar Auto Harnesses Ltd offers both standard and custom cable assemblies with connector options such as RJ45, M12, USB, D-sub, and circular connectors. Hybrid versions integrating both data and power lines are available for smart devices, cameras, and IoT modules.
Each assembly is tested for continuity, impedance matching, and signal integrity, complying with ISO9001, UL, and TIA/EIA-568 standards. Waterproof IP67/IP68 versions with molded connectors are ideal for outdoor or industrial applications requiring reliability under moisture and vibration.
Whether for office networks, industrial control systems, or communication equipment, our data communication cable assemblies deliver high performance, flexibility, and long-term durability.
Edgar Auto Harnesses Ltd
OEM / ODM • IPC/WHMA-A-620 Class 3 • ISO9001 • IATF16949 • UL • RoHS
