Product Information
Key Specifications/ Special Features

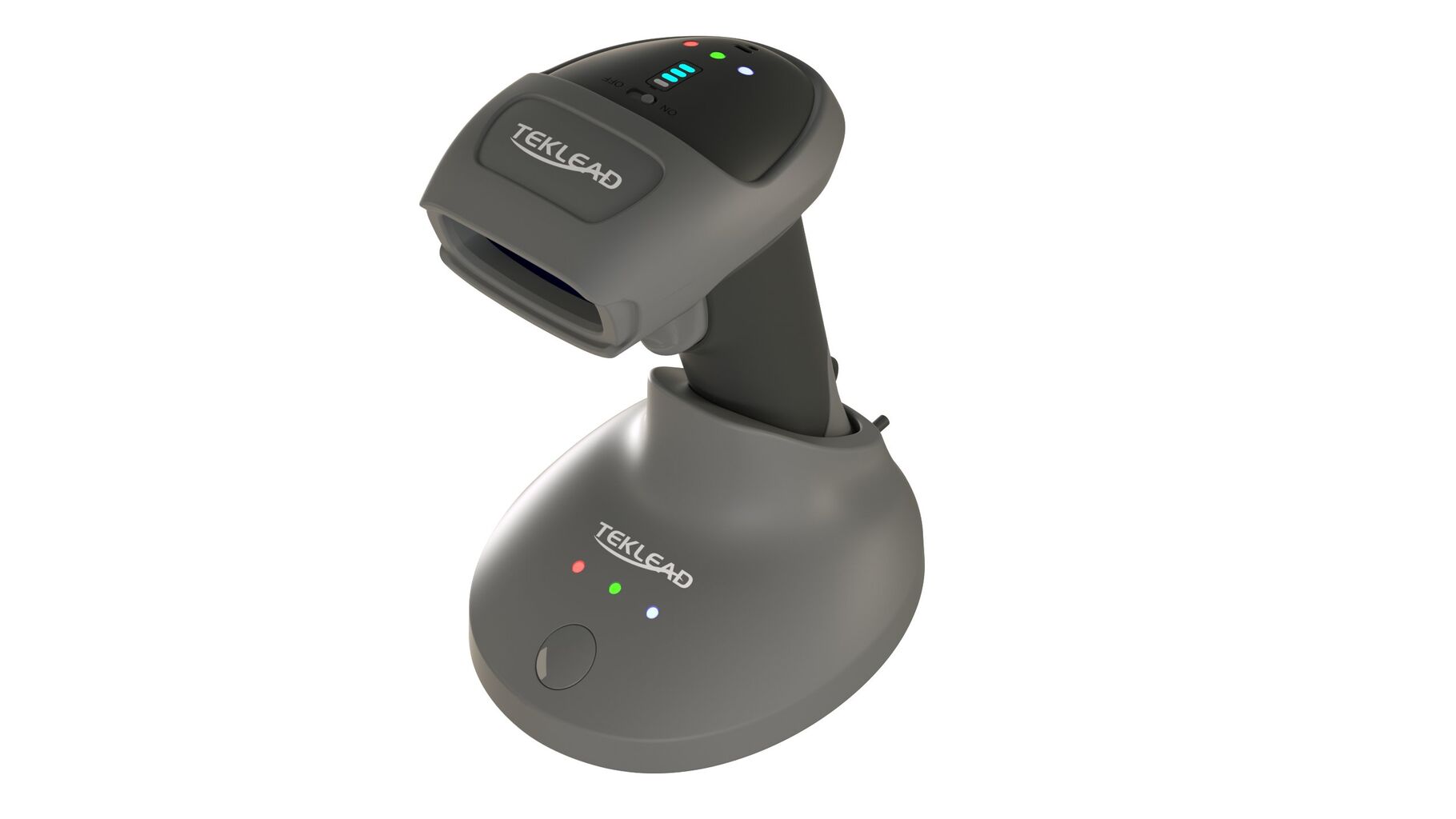

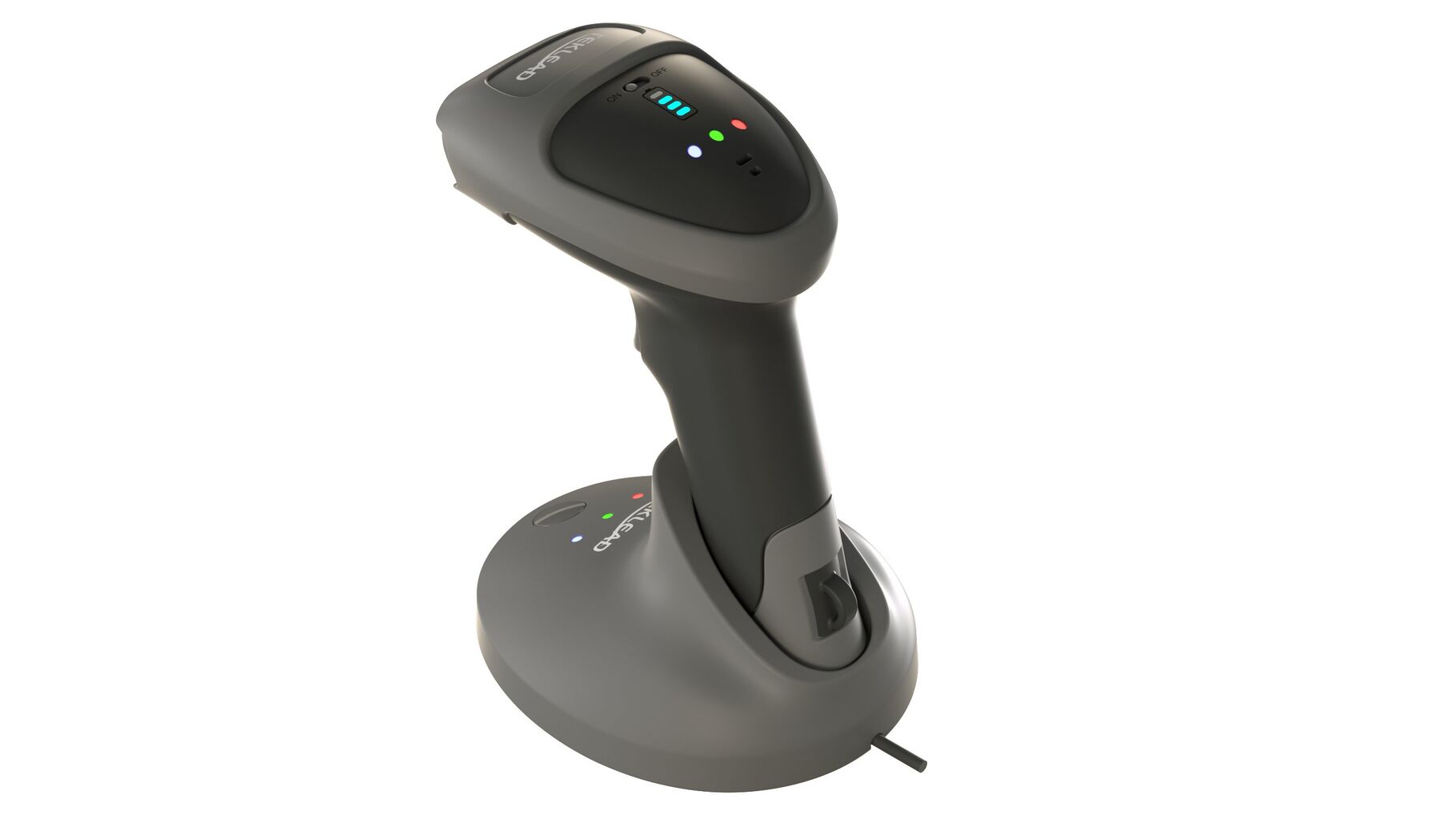

The T-3010B is a stylish handheld 2D wireless barcode scanner for both commercial and industrial use. It employs advanced CMOS image recognition technology and an intelligent image recognition system, equipped with a 1.3-megapixel global shutter high-definition camera and a built-in laser crosshair. It can read barcodes on various media and surfaces, including paper, products, screens, and DPM (Direct Part Marking). The product utilizes enhanced wireless 2.4G transmission technology, with an effective range of over 60 meters in open outdoor environments. It supports both wired and wireless transmission modes simultaneously. It is primarily applicable to industrial production, DPM scanning, inventory counting, etc.
>Integrated 2D module structure, resistant to drops and shocks.
>Utilizes a high-performance MCU, easily decoding mainstream 1D and 2D barcodes.
>2D imaging technology capable of reading barcodes on various media and surfaces like paper, print, plastic, screens, DPM, etc.
>High-definition camera module for reading smaller, higher-density 1D and 2D barcodes.
>Supports multiple working modes (trigger, auto sense) to meet different reading needs.
>Laser aiming with strong penetration, providing clear targeting day or night.
>Enhanced wireless 2.4G transmission technology, reliable outdoor open-space transmission distance up to 60 meters or more, simultaneously supports wired transmission without switching.
>Supports wireless Bluetooth communication mode, supporting HID, SPP, and BLE protocols.
>Supports instand mode and storage mode (large capacity, can store over 20,000 product codes).
>Configured with a charging case and removable battery for uninterrupted scanning scenarios.
>Includes a wireless charging base for charging and data transmission, convenient and reliable.
>Vibration alert for clearer scan confirmation.
| Communication Methods | USB (USB-KBW, USB-COM), Wireless 2.4G, Bluetooth |
| Image Sensor | CMOS ,Global Shutter |
| Pixel | 1.3 Megapixel |
| Resolution | ≥3mil/0.076mm（PCS90%,CODE 39） |
| Depth of Field | 40mm~720mm |
| Decoding Speed | 65CM/S |
| Reading Mode | Trigger, Auto-Sense |
| Indicators | LED Indicator, Buzzer, Vibration |
| FOV | 40° * 30° |
| Reading Angles | Test Conditions：CODE39,10mil/0.25mm,PCS90% |
| Roll: ±360°，Pitch:±60°，Skew: ±55° | |
| Print Contrast | ≥20% |
| Ambient Illumination | Dark environments, indoor natural light |
| Supported Barcodes | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)， etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， Aztec，etc. |
Wireless Parameters
| Wireless Mode | Instand Mode, Storage Mode |
| Communication Method | Wireless 2.4G，Bluetooth (HID, SPP, BLE) |
| Wireless Standard | 2.4GHZ（ISM Band）, Bluetooth 4.2 |
| Transmission Distance | ≥60meters 2.4G; 30meters Bluetooth（Open distance） |
| Storage Capacity | 350KB（over 20,000 Product code） |
| Battery Capacity | 2500mAh |
| Charging Time | About 5 hours(5V@1000mA) |
| Continuous Scanning Time | ≥12hours |
| Standby Time | ≥4 Weeks |
| Supported Systems | Windows，Mac OS，IOS, Linux，Unix，Android |
For more information, pls contact aileen.shao (at) gzteklead (dot) com
