Product Information
Key Specifications/ Special Features
Product Name

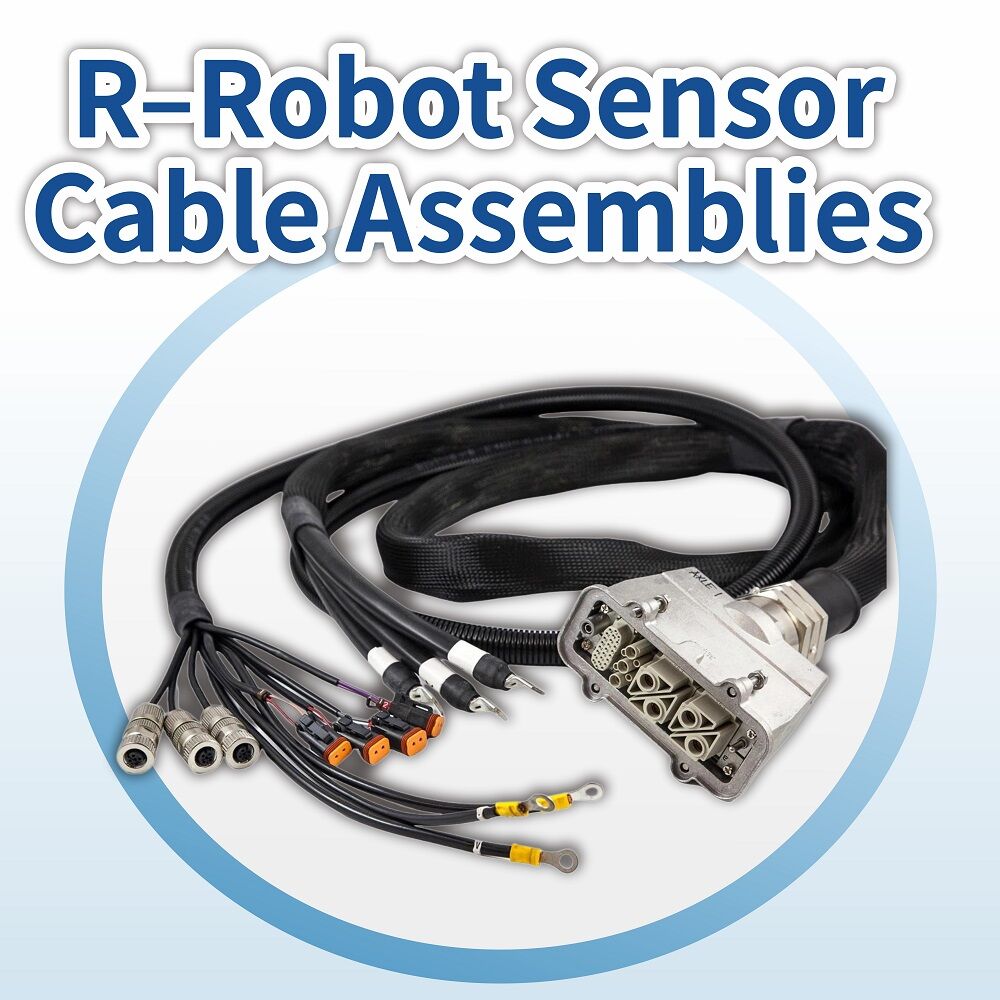

Robot Sensor Cable Assembly for Industrial Automation and Motion Control Systems
Search Keywords
robot sensor cable, robotic wiring harness, automation cable assembly, industrial robot connector
Model Number
EDG-RSC-170
| Parameter | Specification |
|---|---|
| Application | Industrial robots, automation systems, sensors, actuators, and motion control |
| Connector Type | M5 / M8 / M12 / JST / TE / Mo lex / Custom circular connectors |
| Cable Type | Shielded twisted-pair, multi-core flexible cable |
| Conductor Material | Tinned copper / silver-plated copper |
| Wire Gauge | AWG 28 – AWG 16 (0.08mm² – 1.5mm²) |
| Voltage Rating | 12V / 24V / 48V DC (signal and power) |
| Bending Radius | Minimum 10× cable outer diameter |
| Flex Life | >10 million cycles (robotic chain test) |
| Jacket Material | PUR / TPE / TPU (oil-resistant and abrasion-proof) |
| Waterproof Rating | IP67 / IP68 (molded connectors available) |
| Operating Temperature | -40°C to +125°C |
| Standards Compliance | ISO9001, IATF16949, UL, RoHS, REACH, CE |
| Testing | Continuity, insulation, shielding, vibration, and torsion test |
The robot sensor cable assembly is designed for dynamic industrial applications that demand flexibility, durability, and high signal integrity. Each cable assembly provides reliable connectivity between sensors, actuators, and controllers within robotic and automated systems.
Manufactured with high-flex life PUR or TPE jacket materials, our robotic wiring harnesses are resistant to oil, abrasion, and continuous bending stress — capable of over 10 million motion cycles in cable chain applications. Shielded twisted-pair construction ensures low signal noise and stable data transmission in environments with heavy electrical interference.

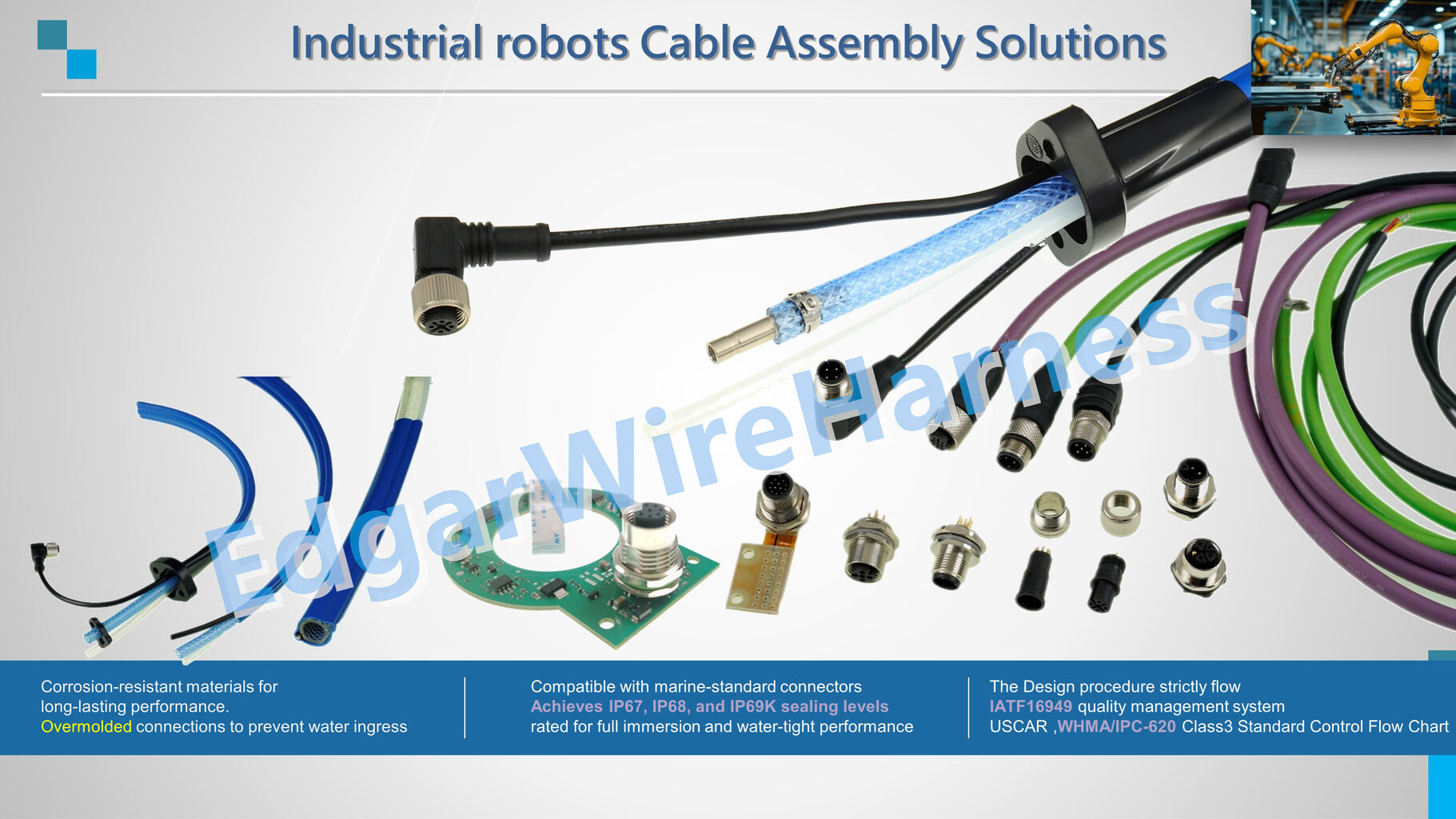

These robot sensor cables are available with M5, M8, or M12 circular connectors, supporting standard configurations for automation sensors and IO modules. Each connector can be overmolded for IP67/IP68 waterproof protection, ensuring dependable operation under vibration, oil exposure, and temperature variations.
Edgar Auto Harnesses Ltd manufactures every cable assembly under IPC/WHMA-A-620 Class 3 and ISO9001/IATF16949 standards, ensuring Class-A performance for robotic and industrial systems. We provide OEM and ODM design services, including custom connector pinouts, overmold shapes, and cable length configurations.
Whether for collaborative robots, conveyor systems, or factory automation equipment, our robot sensor cable assemblies guarantee stable signal transmission, long flex life, and superior mechanical durability.
Edgar Auto Harnesses Ltd
OEM / ODM • IPC/WHMA-A-620 Class 3 • ISO9001 • IATF16949 • UL • RoHS
