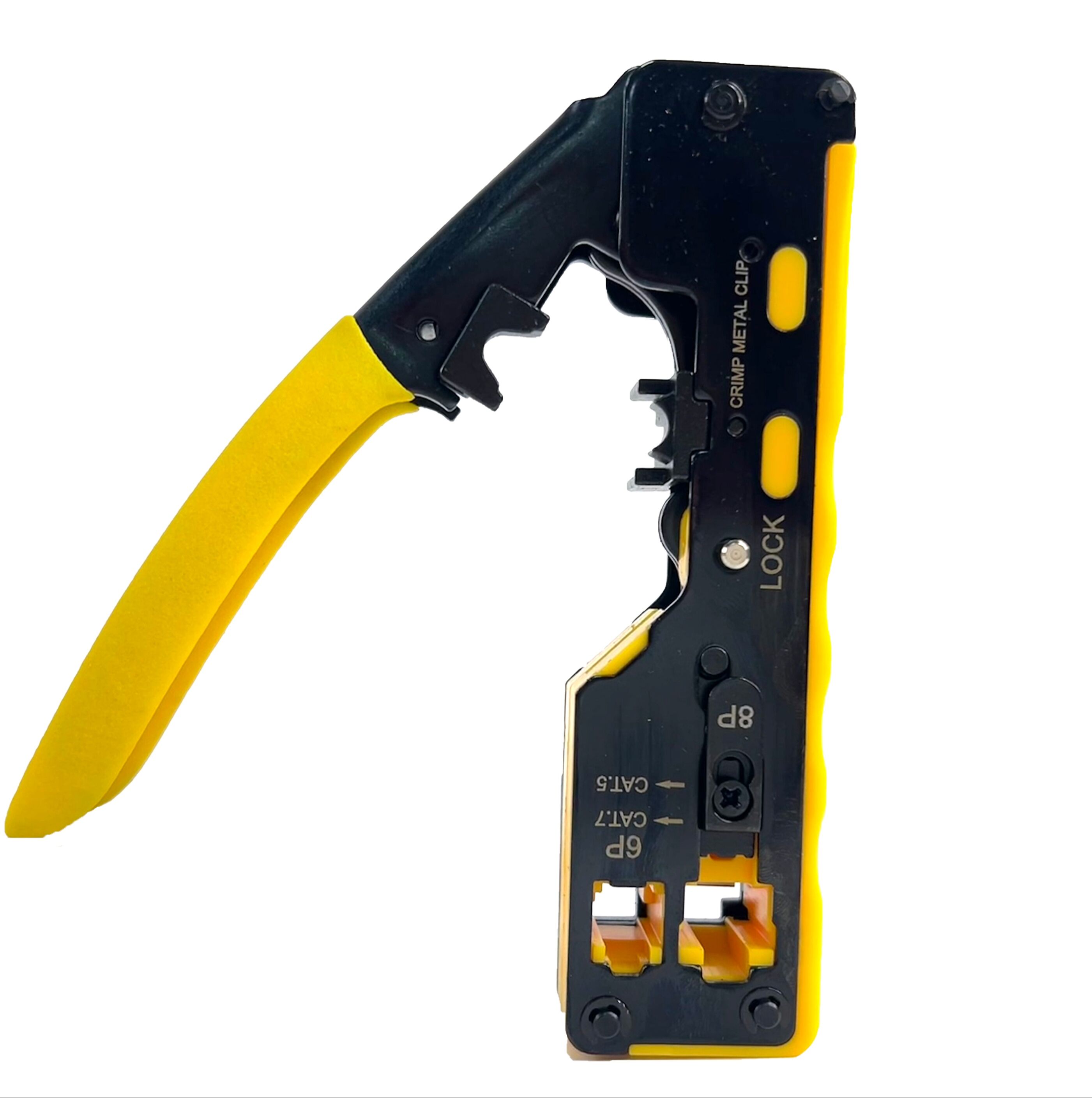

Multi-function crimping pliers

Equipped with Communication Link Editor Development

Founded in 2011, Dongguan Fangbei Electronic Co. Ltd is located inDongguan city, Dalingshan Town. Our company is equipped withcommunication link editor development, design, production,

manufacture, sales and service.

Supplying Major Buyers in Europe and North America

Instructions

Non-Ratchet Type tomove the closed lock to open the handles.

Ratchet Type: Squseze handles untilit stops to open the handles.

1. Insert cable between stripper blades.

1a.Insert 4P or 6P cable from the top end of the stripper black until it

touches the stop guide (stripping length 6mm)

1b.Insert 8P cable between stripper blades and let it extend a little past

the lower cutter blade.

2. Squeeze handles, cable must be kept perpendicular and then pull from

the tool.

3. Remove the outer jacketinsert the stripped cable into the plug make

sure the left wire at one end matches the right wire at the other end.

4. Place modular plug with cable into the tool's holder. Make sure the

stripped wire is between the tab and gold contacts. Squeeze handles

until it stops.

5. Remove the crimped plug from the tool.

6. During the crimping process, you may turn the screw on the ratchet in

counterclockwise directionto stop the incorrect operation. (RATCHET

RELEASED)

7. To crimp "DEC" plug, followstep1 to step 3.

Remove the screw on the left side of the 6P holder, insert the "DEC"

plug and cable into the 6P holder and squeeze handles tillit stops.

HT-

FOR CRIMPING MODULAR PLUG

200

10P10C, AMP 8P8C/RJ-45, 6P6C/RJ-12,6P4C/RJ-11,

200R

4P4C & 4P2C PLUGS & DEC/OFF SET PLUG-6P6C

2008

8P8C/RJ-45, 6P6C/RJ-12, 6P4C/RJ-11, 4P4C & 4P2C

2008R

PLUGS & DEC/OFF SET PLUG-6P6C

I HT-200R & HT-2008R with ratchet mechanism

Replacement Blade: HT-200C for cutter, HT-20961 for stripper
