One stop ODM OEM customized led aluminum substrate pcb

Product Information

Model Number
PCB-217
Brand Name
Xing Da
Origin
China
Small Orders
Accepted

Key Specifications/ Special Features

One-stop service OEM high power Aluminum LED pcb board



Welcome to XingDa Electric Technology Co.,Ltd

Xindaxing Electric Technology Co.,LTd

Our Services

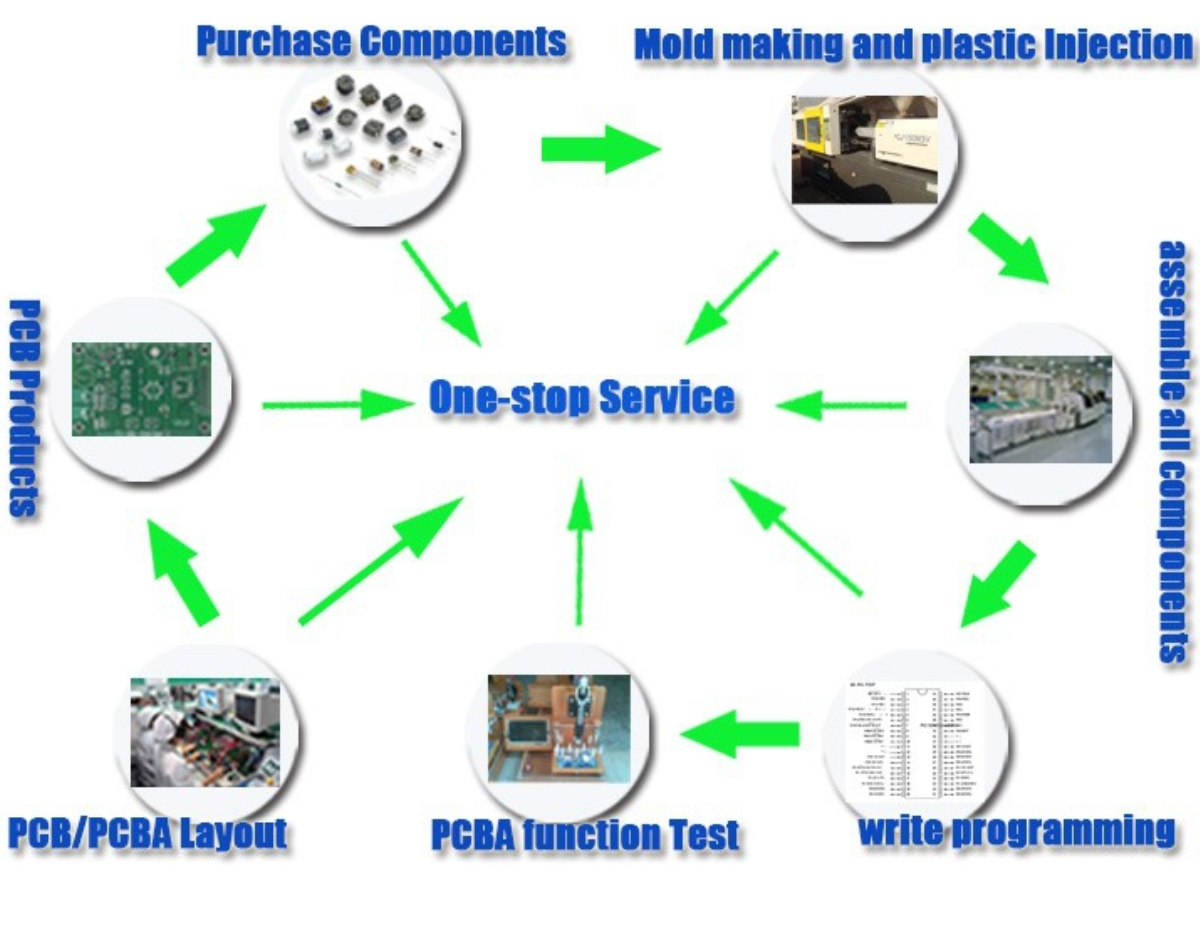

We can provide one-stop service:

1. PCB circuit boards.

2. E-test.

3.Electronic components purchasing.

4. PCB assembly: available on SMT, BGA, DIP.

5. PCBA function test.

6. Enclosure assembly.




PCB product Capacity

PCB Manufacture Capacity
ItemSpecification
MaterialFR-4, FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum Base, Copper Base,Ceramic, Crockery, etc.
RemarksHigh Tg CCL is Available(Tg>=170℃)
Finish Board Thickness0.2 mm-6.00mm(8mil-126mil)
Surface FinishGold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)
ShapeRouting,Punch,V-cut,Chamfer
Surface TreatmentSolder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)
Silkscreen(black, yellow, white)
Peel able-mask(red, blue, thickness>=300um)
Minimum Core0.075mm(3mil)
Copper Thickness1/2 oz min; 12oz max
Min Trace Width & Line Spacing0.075mm/0.075mm(3mil/3mil)
Min Hole Diameter for CNC Drilling0.1mm(4mil)
Min Hole Diameter for Punching0.6mm(35mil)
Biggest panel size610mm * 508mm
Hole Position+/-0.075mm(3mil) CNC Drilling
Conductor Width(W)+/-0.05mm(2mil) or +/-20% of original
Hole Diameter(H)PTHL:+/-0.075mm(3mil)
Non PTHL:+/-0.05mm(2mil)
Outline Tolerance+/-0.1mm(4mil) CNC Routing
Warp & Twist0.70%
Insulation Resistance10Kohm-20Mohm
Conductivity<50ohm
Test Voltage10-300V
Panel Size110 x 100mm(min)
660 x 600mm(max)
Layer-layer misregistration4 layers:0.15mm(6mil)max
6 layers:0.25mm(10mil)max
Min spacing between hole edge to circuitry pattern of an inner layer0.25mm(10mil)
Min spacing between board outline to circuitry pattern of an inner layer0.25mm(10mil)
Board thickness tolerance4 layers:+/-0.13mm(5mil)

Flexible PCB product Capacity

FPC Tech Specification
ItemsCapabilities
LayersFPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers
Regular Base MaterialsKapton,Polyimide(PI), Polyester(PET), FR4
Base Copper Thickness1/3 oz to 8oz
Regular Base Material Thickness12.5um to 50um(FPC)
0.1mm to 3.2mm(Rigid)
Regular Coverlay Thickness27um to 50um
Regular Adhesive Thickness12um to 25um
Blind or Buried ViasYes
Impedance ControlYes
Min.Line Width/Spacing0.04mm/0.04mm
Surface FinishingElectroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP
Outline FabricationDie cut, laser cut, CNC routing, V-scoring
Hole to edge(Hard tool/Die Cut)±0.1/±0.2mm
Edge to edge(Hard tool/Die Cut)±0.05/±0.2mm
Circuit to edge(Hard tool/Die Cut)±0.07/±0.2mm

PCB Assembly(SMT) Product Capacity

SMT Capacity
SMT ItemCapacity
PCB Max. size510mm*1200mm(SMT)
Chip component 0201, 0402, 0603, 0805, 1206 package
Min.pin space of IC0.1mm
Min. space of BGA0.1mm
Max.precision of IC assembly±0.01mm
Assembly capacity≥8 million piots/day
DIP capacity6 DIP production lines
Assembly testingBridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test)

FCT(Functional Circuit Test)		Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.

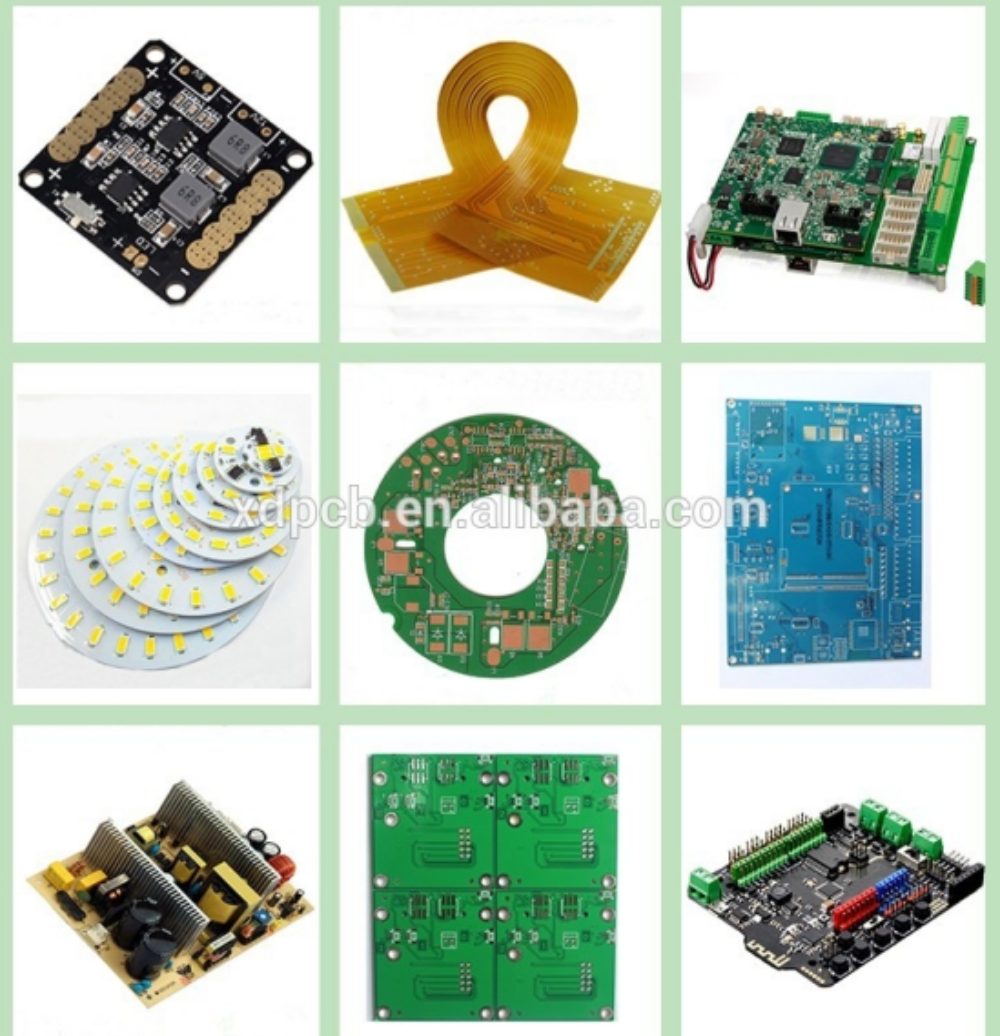

Related Products

High Quality PCB, FPC and PCBA!

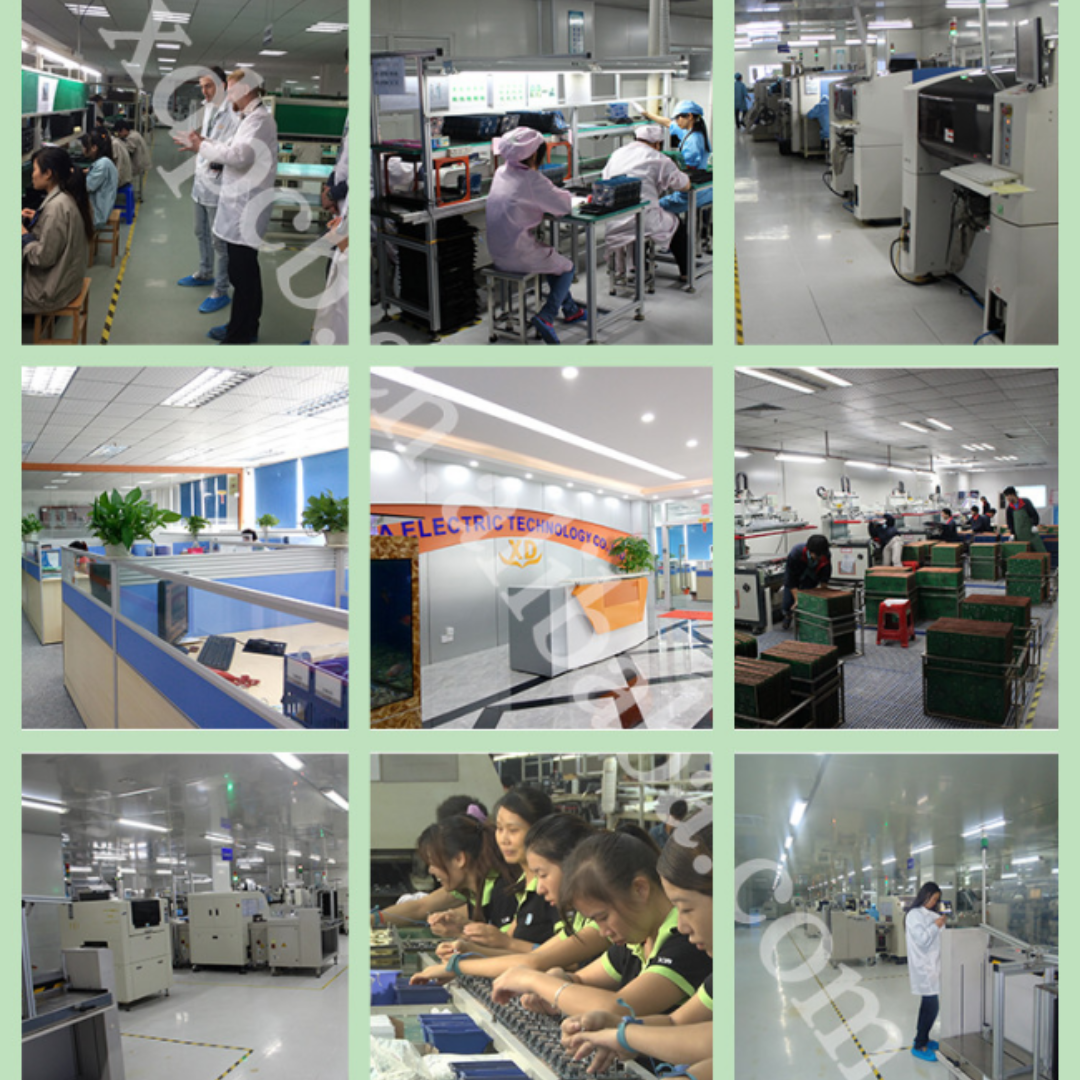

View of Factory
