Product Information
Key Specifications/ Special Features

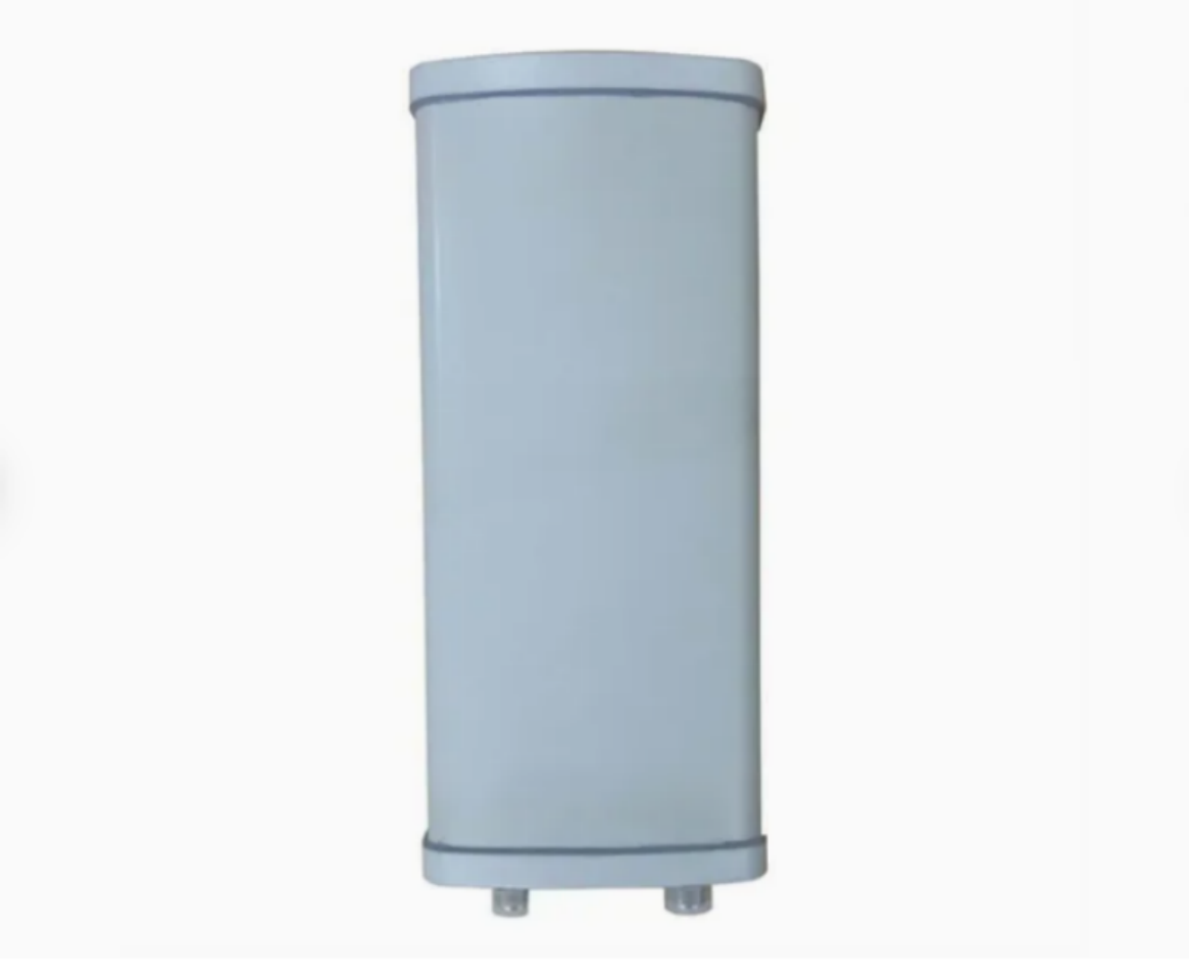

Panel Antenna L760PB071214FT
| Electrical Specifications | |||||||
| Fre.Range (MHz) | 700-900 | 900-950 | 1170-1280 | 1500-1620 | 2400-2483 | 5150-5350 | 5725-5850 |
| Horizontal 3dB Beamwidth (°) | 90±10 | 75±5 | 75±5 | 120±10 | 90±10 | 120±10 | 120±10 |
| Vertical 3dB Beamwidth (°) | 65±5 | 65±5 | 60±5 | 60±5 | 17±5 | 17±5 | 17±5 |
| Gain (dBi) | 7±1 | 7.5±1 | 8±1 | 7±1 | 14±1 | 13±1 | 13±1 |
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| VSWR | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Front to Back Ratio (dB) | ≥20 | ||||||
| Average Power, Maximum (W) | 100 | ||||||
| Impedance (Ω) | 50 | ||||||
| Mechanical Specifications | |
| Dimensions (mm) | 850×320×110 |
| Net Weight (kg) | 10 |
| Radome | UPVC |
| Radome Colour | Gray |
| Connector | 7×NK |
| Environmental Specifications | |
| Application | Outdoor |
| Operating Temperature (℃) | -40 to +70 (-40 to 158℉) |
| Humidity (%) | 5 to 95 |
| Survival Wind Velocity (m/s) | 60 |
| Mounting Specifications | |
| MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | |
| Mounting Mast Diameter (mm) | Φ 35 to 75 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
Zhengzhou LEHENG Electronic Technology Co., Ltd was established in the year 2016, it is located in Zhengzhou, Henan, China, which is the central plains, it is the largest logistics transportation and transit center in Asia. Our company passed QMS CERTIFICATE OF REGISTRATION: ISO9001:2015.
Our main products: GPS and GNSS Antennas, GPS Receiver Modules, Combo Antennas, 5G Antennas, GSM Antennas, 3G Antennas, 4G and LTE Antennas, 433MHz and 868MHz Antennas, WiFi Antennas, MIMO Antennas, Indoor Coverage Antennas, TV Antennas, Other cables and connectors.
Our principle of service: Service - First, Integrity-based, quality - Oriented, With the operation principle of innovation, pragmatic, efficient and win-win business philosophy, Zhengzhou LEHENG Electronic Technology Co, Ltd has made remarkable achievements through the extension of corporate culture and continue to expend new markets by our all staff's tireless efforts. We have partners all over the world, even has become the sole agent of many European and American traders in China, and enjoy a good reputation in the industry over the years.
To create value for customers, creating opportunities for staffs and for social responsibility is our final working goals.
We firmly believe that: Stable operation and continued to enhance corporate value, abide by its commitment, to provide customers with fist- rate service and high quality products is the code of conduct which we have to adhered.
Panel Antenna L760PB071214FT
| Electrical Specifications | |||||||
| Fre.Range (MHz) | 700-900 | 900-950 | 1170-1280 | 1500-1620 | 2400-2483 | 5150-5350 | 5725-5850 |
| Horizontal 3dB Beamwidth (°) | 90±10 | 75±5 | 75±5 | 120±10 | 90±10 | 120±10 | 120±10 |
| Vertical 3dB Beamwidth (°) | 65±5 | 65±5 | 60±5 | 60±5 | 17±5 | 17±5 | 17±5 |
| Gain (dBi) | 7±1 | 7.5±1 | 8±1 | 7±1 | 14±1 | 13±1 | 13±1 |
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| VSWR | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.5 | ≤1.5 | ≤1.5 |
| Front to Back Ratio (dB) | ≥20 | ||||||
| Average Power, Maximum (W) | 100 | ||||||
| Impedance (Ω) | 50 | ||||||
| Mechanical Specifications | |
| Dimensions (mm) | 850×320×110 |
| Net Weight (kg) | 10 |
| Radome | UPVC |
| Radome Colour | Gray |
| Connector | 7×NK |
| Environmental Specifications | |
| Application | Outdoor |
| Operating Temperature (℃) | -40 to +70 (-40 to 158℉) |
| Humidity (%) | 5 to 95 |
| Survival Wind Velocity (m/s) | 60 |
| Mounting Specifications | |
| MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | |
| Mounting Mast Diameter (mm) | Φ 35 to 75 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
Zhengzhou LEHENG Electronic Technology Co., Ltd was established in the year 2016, it is located in Zhengzhou, Henan, China, which is the central plains, it is the largest logistics transportation and transit center in Asia. Our company passed QMS CERTIFICATE OF REGISTRATION: ISO9001:2015.
Our main products: GPS and GNSS Antennas, GPS Receiver Modules, Combo Antennas, 5G Antennas, GSM Antennas, 3G Antennas, 4G and LTE Antennas, 433MHz and 868MHz Antennas, WiFi Antennas, MIMO Antennas, Indoor Coverage Antennas, TV Antennas, Other cables and connectors.
Our principle of service: Service - First, Integrity-based, quality - Oriented, With the operation principle of innovation, pragmatic, efficient and win-win business philosophy, Zhengzhou LEHENG Electronic Technology Co, Ltd has made remarkable achievements through the extension of corporate culture and continue to expend new markets by our all staff's tireless efforts. We have partners all over the world, even has become the sole agent of many European and American traders in China, and enjoy a good reputation in the industry over the years.
To create value for customers, creating opportunities for staffs and for social responsibility is our final working goals.
We firmly believe that: Stable operation and continued to enhance corporate value, abide by its commitment, to provide customers with fist- rate service and high quality products is the code of conduct which we have to adhered.
