Product Information
Key Specifications/ Special Features
Product Information
| Model Number | ZNW58/76/100 | Brand Name | OEM / UPTURN |
| origin | China | Small Orders | Accepted |
MIDRANGE SPEAKER(ZNW58)
SIZE:2" MIDRANGE SPEAKER
POWER: RMS 100W/MAX 200W
VOICE COIL: 2" TSV CCAW
MAGNET: 48*6 N45
WIDTH OF COPPER WIRE:6MM
IMPEDANCE:4 OHMS RE:3.4OHMS
FREQ.RESP:450HZ-16KHZ
SENSITIVITY:95 DB/W/M
DIMENSION: 112*65MM
Mounting hole：90mm
MIDRANGE SPEAKER(ZNW76)
SIZE:3" MIDRANGE SPEAKER
POWER: RMS 150W/MAX 300W
VOICE COIL: 3" TSV CCAW
MAGNET: 74*6 N45
WIDTH OF COPPER WIRE:6MM
IMPEDANCE:4 OHMS RE:3.4OHMS
FREQ.RESP:400HZ-10KHZ
SENSITIVITY:96 DB/W/M
DIMENSION: 149*90MM
Mounting hole：125mm
MIDRANGE SPEAKER(ZNW100)
SIZE:4" MIDRANGE SPEAKER
POWER: RMS 200W/MAX 400W
VOICE COIL: 4" TSV CCAW
MAGNET: 97*8 N45
WIDTH OF COPPER WIRE:8MM
IMPEDANCE:4 OHMS RE:3.4OHMS
FREQ.RESP:350HZ-9KHZ
SENSITIVITY:96 DB/W/M
DIMENSION: 186*110MM
Mounting hole：160mm

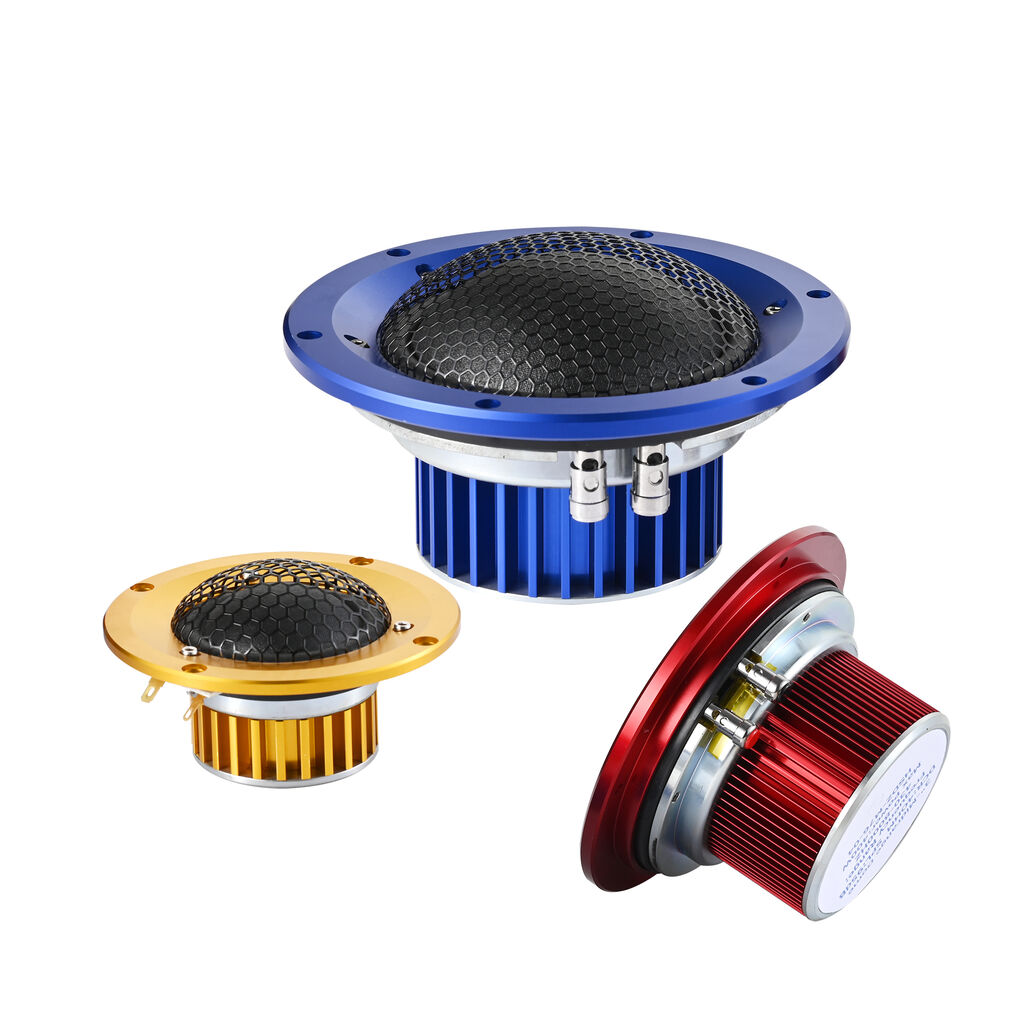

midrange speaker
Shipping Information
| FOB Port | Shanghai | Lead Time | 30–35 days |
Main Export Markets
| Main Export Markets | Western Europe, North America, Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, USA |
Payment Details
| Payment Method | Telegraphic Transfer (TT,T/T) |
Company Profile
| Total Capitalization | US$500,000 to 599,999 | Country / Region | China |
| Year Established | 2005 | Total Employees | 80 to 99 |
| Business Type | Exporter Manufacturer Wholesaler |
| Total Annual Sales | US$2,000,000 to 2,999,999 | Export Percentage | 95 percent to 99 percent |
| OEM Service | Yes | Small Orders Accepted | Yes |
| Brand Names | OEM/ODM | Payment Terms | Bank Transfer, L/C, Western Union or PayPal |
| Main Competitive Advantages | Buyer's Specifications Accepted, Experienced R&D Department, ODM (Original Designing & Manufacturing), OEM Capability, Reliability, Reputation | Other Competitive Advantages | NA |
| Major Customer | Asia, Hong Kong, China, India, Canada | Export Markets | Asia , Australasia ,Central/South America , Eastern Europe , NorthAmerica , Western Europe |

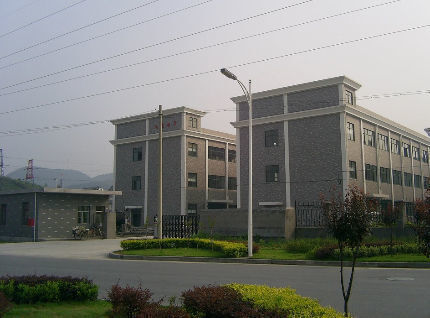

Our Factory Appearance

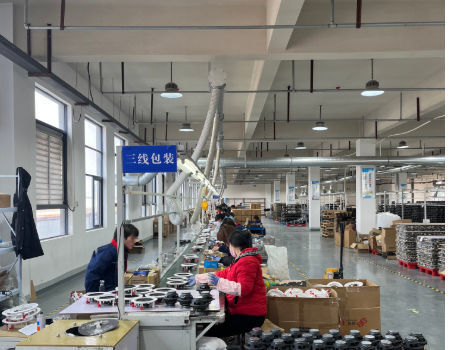

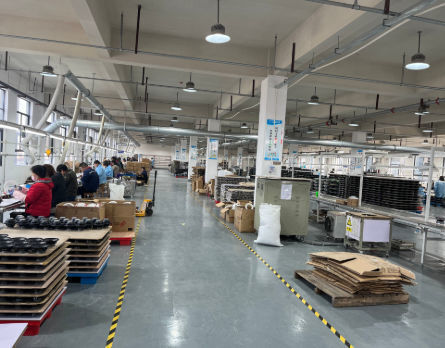

Our Working Drawing Our Production line 2
| Factory Size | 10000 Square Metre | No. of Production Lines | NA |
| Annual Output Value | NA | Number of Production Staff | 60 to 79 |
| Contract Manufacturing | NA | Number of QC Staff | 5 to 9 |
| Year Established | 2005 | Number of R & D Staff | 5 to 9 |
| Address | No. 15, Qihang Road, West District, Economic Development Zone, Shijie Town, Guangde, Anhui, China |
| Site Advantages | Now we have built a modern industrial plant of about 14,118 square meters, with five audio speaker production lines and one automatic production line, and an annual output of more than one million pieces of various products. |
| Description of Quality Control/Technical Support Department | An independent department is responsible for checking the safety and quality of all newly developed products as well as those that are mass-produced for buyers. | Quality Control Procedures | Quality control personnel who are all experts in their respective product assignments check the quality at every stage of production, from the incoming raw materials to the finished product. |
| Additional Information about the Quality Control Process | We are proud to announce our recently acquired DE. |
| Procedures and Practices | ABC Company Limited is backed by a strong R&D team, which is composed of creative and motivated professionals. Our experienced R&D department, provides new product designs by manipulating science and research functions to better serve our clients and promote our products. |
Contact Supplier
Supplier & product information updated August 22, 2025.
| Company Name | ANHUI HONGSHENG ELECTRONICS CO.,LTD. |
| Address | No. 7, Yufeng Road, Xianlin Town, Yuhang District,Hangzhou,Zhejiang,China |
| Homepage Address | https://www.ahhsdz.com/ |
| Other Homepage Address | http://www.globalsources.com/upturn.co |
