RF Remote Controller Switch AC 100-240V 1 Channel High Power 30A Relay Learning Code Universal Garage Control AK-C210911

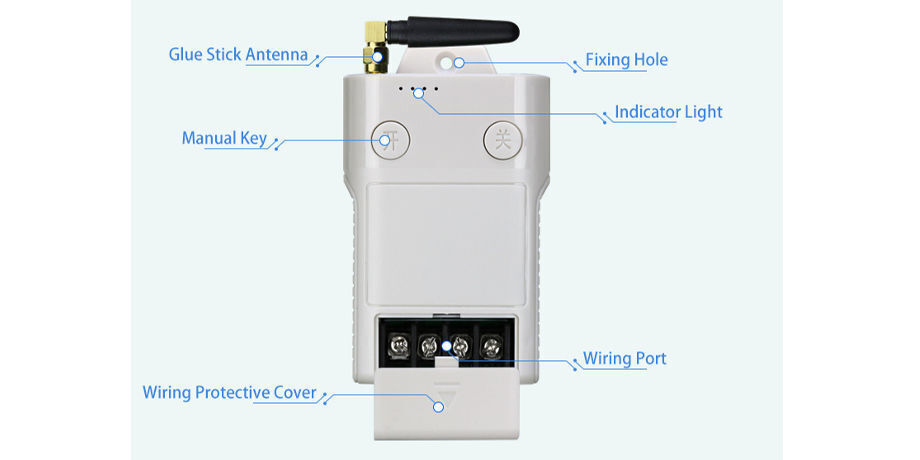

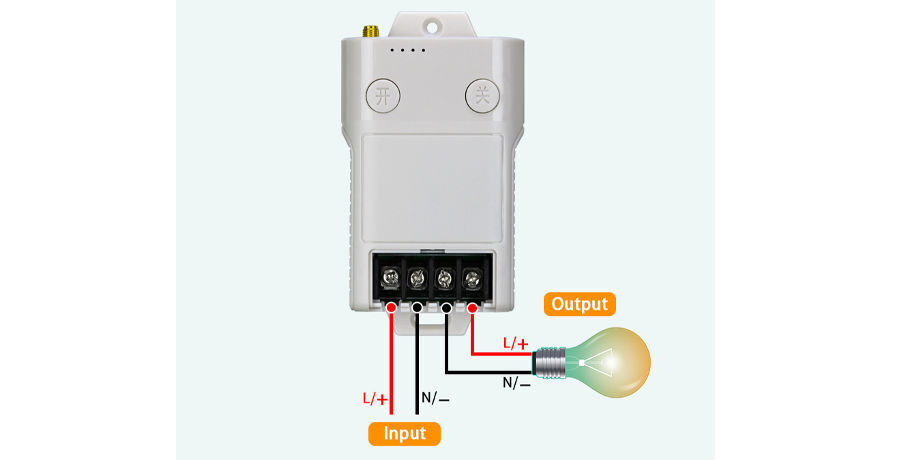

Receiver:

Product Name: AC 100-240V 1 Channel Remote Control Switch

Model Number:AK-C210911 AC

Working Voltage:AC100-240V

Max. Load Current:≤30A

Standby Power Consumption:<0.5W

Receiving Sensitivity:-105 dBm

Frequency:315/433.92 MHz

Working Temperature:-20-70℃

Working Mode:Momentary/Toggle/Latched

Modulation:ASK

Size:123.8*68*30mm (With Shell)

Weight:111.18g (With shell and antenna)

Operation Method

Learning Code: Press and hold the “off” button of the controller for 3 seconds, the controller indicator will light up and the buzzer will beep to indicate that you have entered the learning code state. At this time, press and hold the remote control button to transmit a signal. The controller receives the signal and the indicator light flashes to indicate the learning code is successful.

Clearing Code: Press and hold the “off” button of the controller for 3 seconds, the buzzer on the controller will beep three times, indicating that the code has been cleared successfully. Note: Once the code is cleared, it cannot be restored. Please operate with caution.

Switch Working Mode:

1. Momentary Mode:

Continuously and quickly press the “ON” button of the controller twice, the indicator light flashes twice to indicate that the switch is successful, and the work mode is momentary. The working logic is: Press the remote control button, the controller relay will be connected, release the remote control button, the controller relay will be disconnected.

2. Toggle Mode:

Continuously and quickly press the “ON” button of the controller 3 times, the indicator light flashes 3 times to indicate that the switch is successful, and the work mode is Toggle.

The working logic is: Press the “A” button of the remote control, the controller relay will be connected, press the “A” button of the remote control again, the controller relay will be disconnected.

3.Latched Mode:

Continuously and quickly press the “ON” button of the controller 4 times, the indicator light flashes 4 times to indicate that the switch is successful, and the work mode is Latched.

The working logic is: Press the “A” button of the remote control, the controller relay will be connected, press the “B” button of the remote control again, the controller relay will be disconnected.
