RF Wireless Remote Switch DC12-24V 18 Channels Universal Long Range Multi-function Security alarm/alart RF Controller AK-18S-24

Receiver:

Product Name: Universal Electric door RF Wireless Remote Controller Switch

Product Model: AK-18S-24 V1.0

Frequency: 315/433MHz(Other frequency could be customized)

Working Voltage: DC12-24V

Working Mode: Momentary/Latched/Toggle

Size: 170*86*17.3mm

Weight: 300g

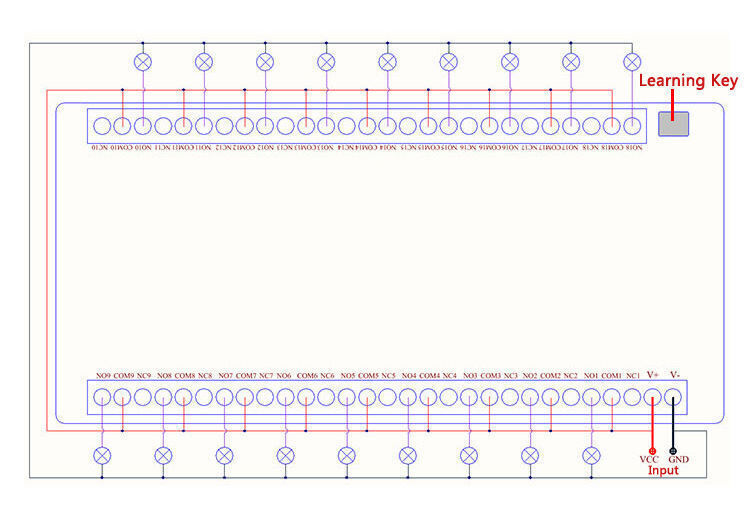

Wiring diagram:

Instruction

Output Method

Signal Momentary——Press the remote control key 1 to learn

Signal Latched——Press the remote control key 2 to learn

Signal Toggle——Press the remote control key 3 to learn

1-9 Momentary, 10-18 Toggle——Press the remote control key 4 to learn

1-9 Momentary, 10-18 Latched——Press the remote control key 5 to learn

1-9 Latched, 10-18 Toggle——Press the remote control key 6 to learn

Learning/Clearing Code Methods

(1) Learning code method:

Press the learning button of the controller, the buzzer will sound; Release the learning button, and press the remote control button that needs to be learned for 2S; The buzzer will ringing quickly eight times and then stop, indicating that the code learning is successful.

(2) Clearing code method:

Keep pressing the controller learning button, the buzzer changes from ringing to stop, indicating that the code clearing is successful.

Notes:

* The input voltage cannot exceed the working voltage range.

* Keep it out of reach of children.

* In an environment with strong wireless interference, the control distance may be reduced.

* It is forbidden to use it in a humid environment, otherwise it may cause damage to the controller.
