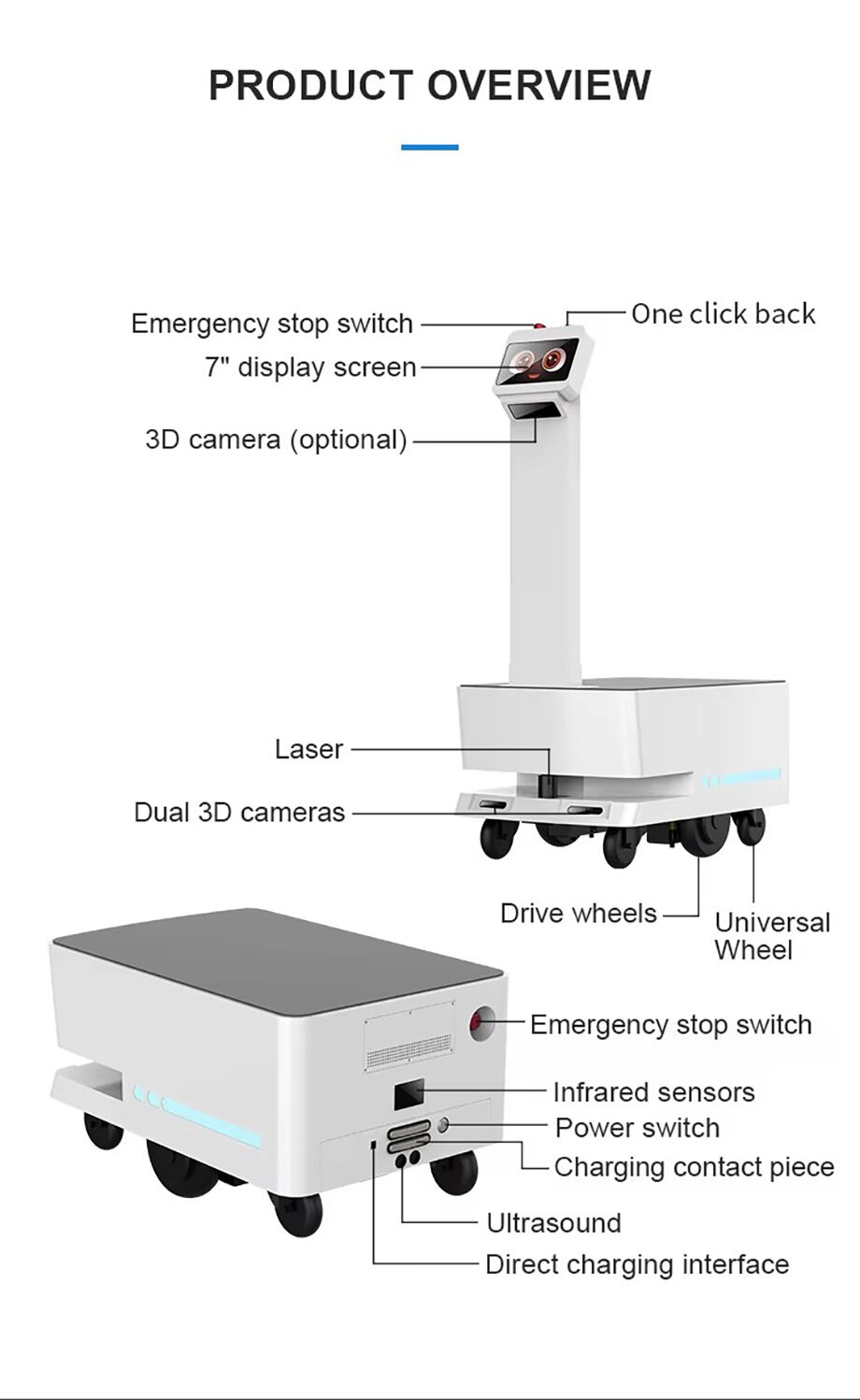

Secondary Development Robot Agv Chassis Open Sdk Robot Base Developers

Model:FBOT23D-S

Length and width dimensions: 700 * 470mm

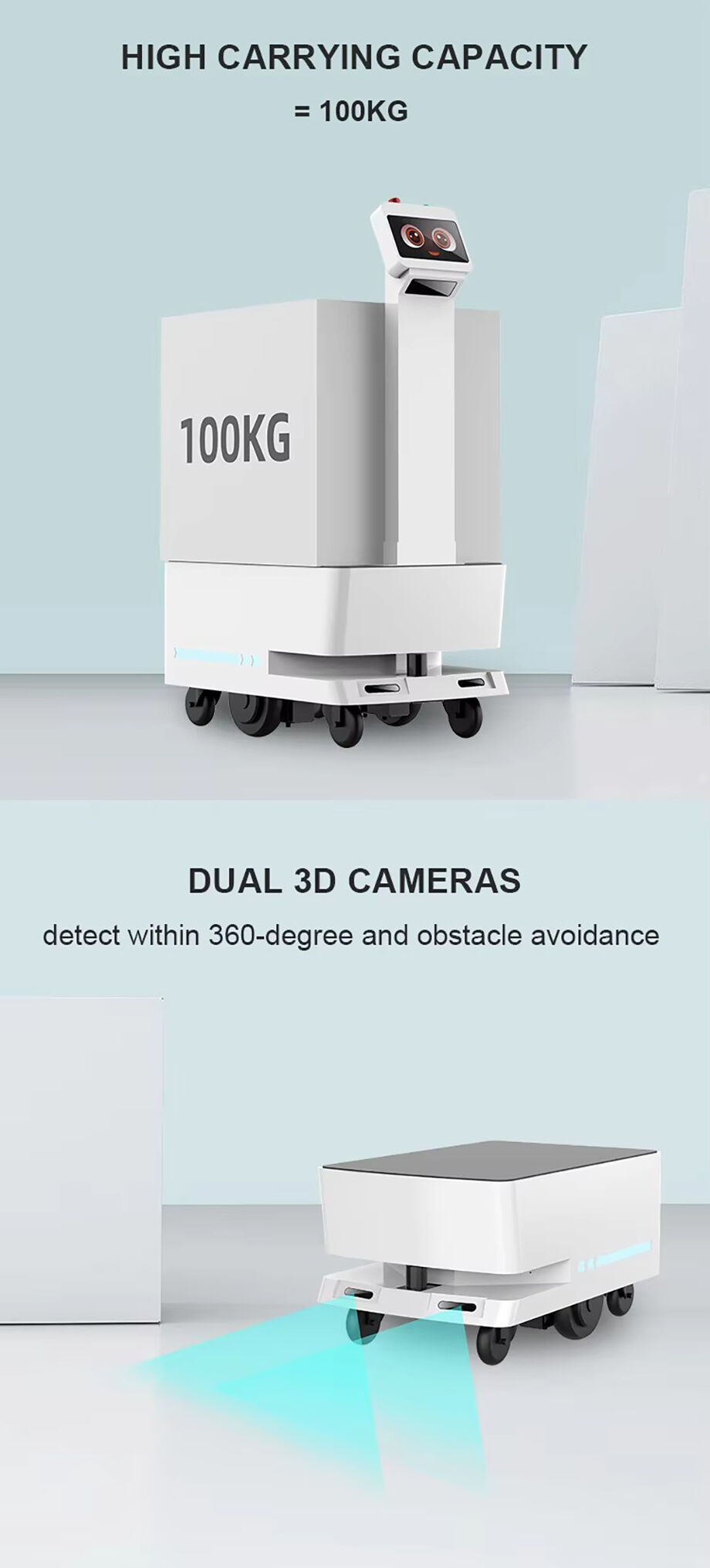

Load capacity: 100KG

Sports ability: Able to walk horizontally and in any direction.

Positioning navigation: LiDAR indoor navigation and obstacle avoidance.

Control board motherboard: Cortex-A7. Android 5.1; Main chip: RK3128

Navigation motherboard: i5 LINUX industrial computer motherboard

Assist in obstacle avoidance: Configure a set of 3D cameras to provide visual assistance in obstacle avoidance;

Charger: A 43.2V 5A charger.

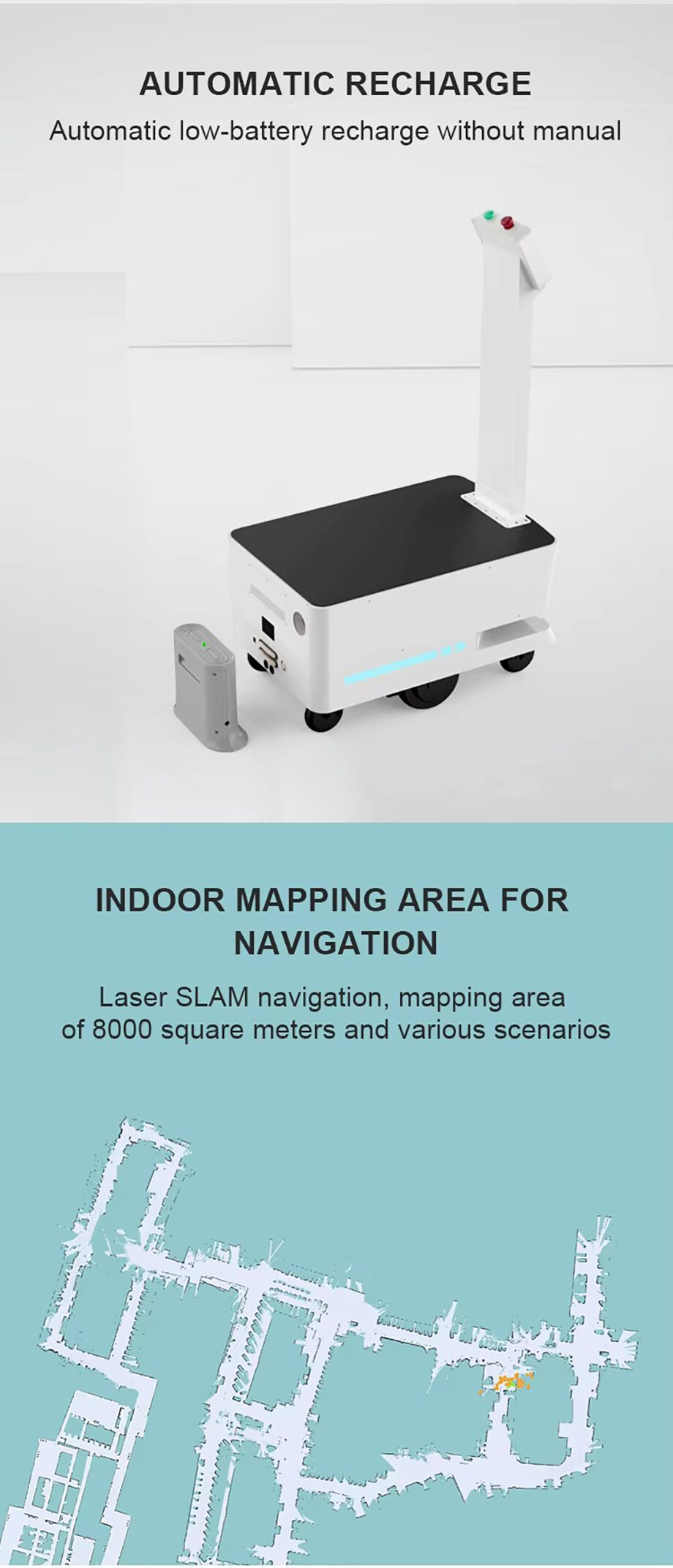

Charging station: an automatic charging station;

Wheels: 4 universal wheels, 2 6.5 inch driving wheels;

Display screen: 7-inch display screen optional; Capacitive full touch panel; Resolution 1024 * 600;

Shell material: ABS board

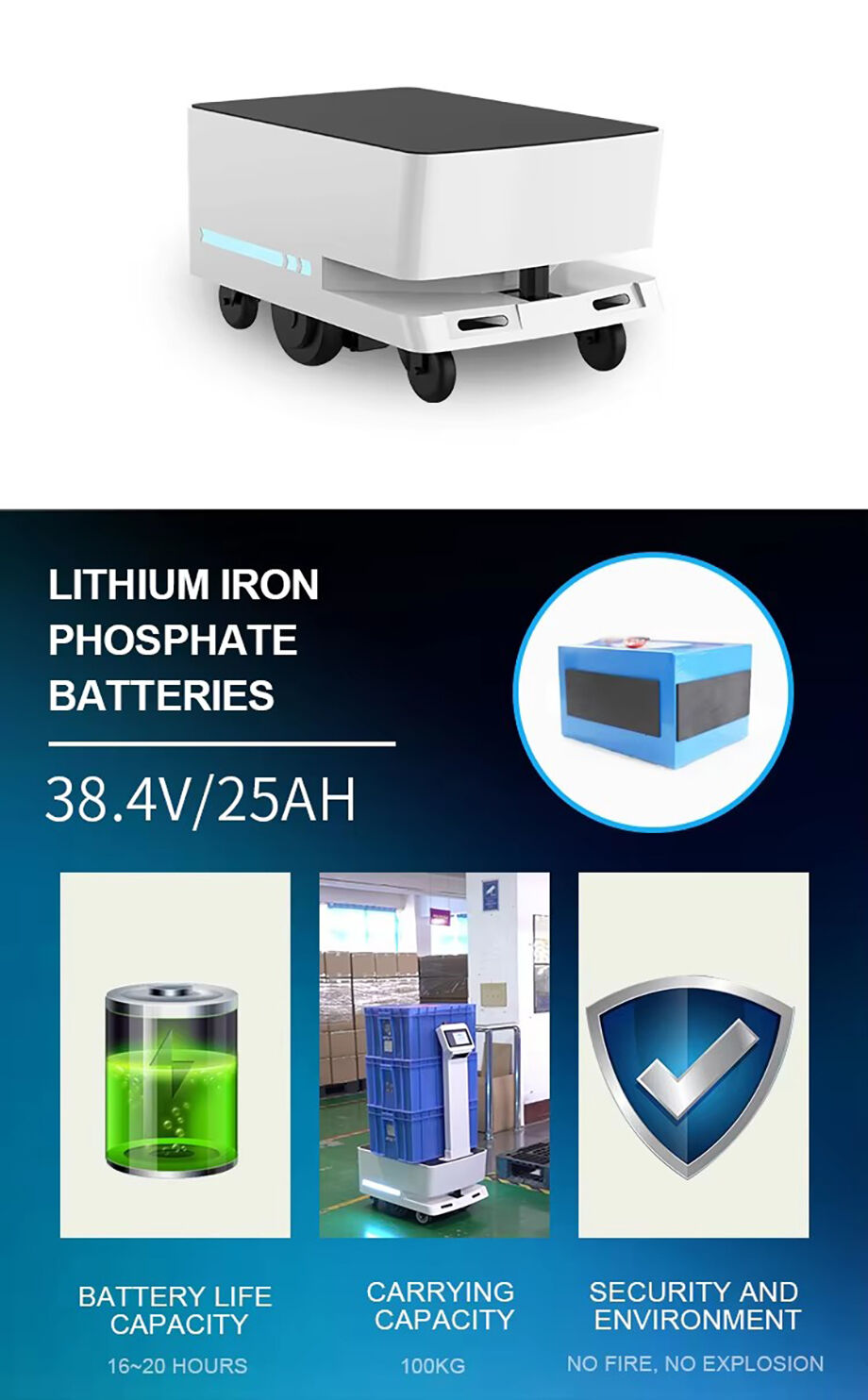

Battery capacity: 38.4V25AH, total capacity 960W;

Battery material: lithium iron phosphate battery;

Battery life: A single battery has a cycle life of over 2000 times when fully charged/discharged.
