Smart USB Sharing Box (EPC515)

EPC515 Smart USB Sharing Box

About this item

This HDMI to USB Share video capture board with HDMI bypass can support resolutions up to 4K@60 (via the bypass path) while simultaneously streaming the audio and video signal at 1080p@60 to a USB connected PC for capture or re-broadcast. Also with add up input special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop.

USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.1 Gen1 port so an external power supply is not required. Availability and access to the controllable features of the unit depend on the capture software used.

EPC515 Advantages

✔ Hardware-level keyboard & mouse control across two computers (no network required, stable and real-time)

✔ 4K60 screen sharing (higher resolution than Logitech Flow and Synergy)

✔ Plug & Play with minimal setup, ideal for normal users

✔ Built-in file transfer, clipboard sharing, and file manager for enhanced productivity

✔ Supports Windows & macOS, covering over 90% of Personal Computer users

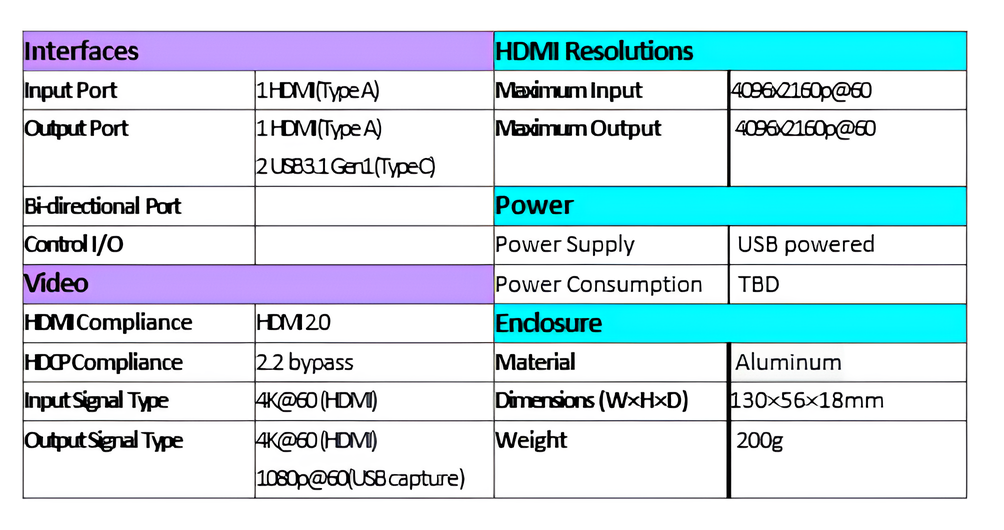

Key Features

1.1 input (input resolution up to 4K@60), 1 bypass output (Follow source up to 4K@60)

2.Max. video capture resolution up to 1080p/60Hz

3.USB3.1 Gen1 connected to 2 PC for data transmission

4.Support USB Share HID Control

5.Supports UVC 1.0 and UAC1.0

6.Supports USB port power supply, no need for an external power supply

7.PC software available for detail control and setting

8.Compatible with third-party applications, such as QuickTime, OBS, XSplit, vMix, etc.
