USB box - 10W

Products Description

USB box——10W&18W

USB Charger UBB002 (PROTON NL pengding Project, HeChuang G08 Mass Production)

Main Features: Single Type-A port, compact size, high current output, supports mainstream mobile phone charging protocols; uses automotive-grade components, stable and reliable; snap-on design for convenient and reliable installation.

The main technical parameters:

A. Input Operating Voltage Range: 9V～16V

B. Output Voltage: 5V±0.25V, with built-in line loss compensation

C. Continuous Output Current: 2.1A

D. Supports BC1.2, APPLE Divider Mode, and SMS 1.2V/1.2V Mode charging protocols

E. ±8kV HBM ESD level

F. Features overvoltage protection, overcurrent protection, short circuit protection, and overheat protection

G. Product complies with automotive parts and materials' prohibited and restricted substance requirements

H. Main chips pass AEC-Q100 certification

I. Operating Temperature Range: -40℃～+85℃

J. Storage Temperature Range: -40℃～+90℃

Recommend Products

Other related hot products that may be of interest to you.

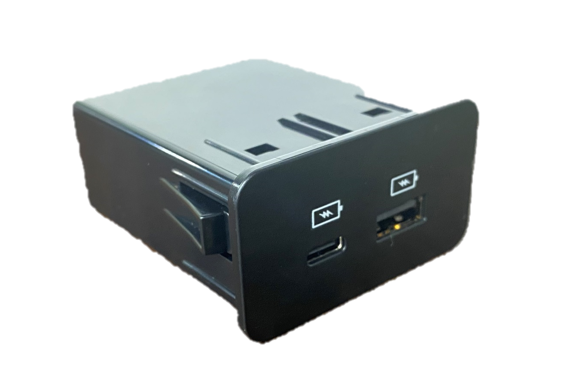

The main technical parameters:
A. Input working voltage range 9V ~ 16V
B. Output voltage 5V, 9V, 12V
C. The maximum output current of port C is 3A, and the maximum output current of port A is 3A.

D.A port supports BC1.2, Divider Mode, and 1.2V/1.2V Mode charging protocol, QC3.0;
C port supports PD3.0 (3V~12V) fast charging protocol

E.±8kV HBM ESD rating
F. With overvoltage protection, overcurrent protection, short circuit protection and overheating protection functions
G. Products meet the requirements for banned and restricted substances in automobile parts and materials
H. Working temperature range: -40℃～+85℃
I. Storage temperature range: -40℃～ +90℃
