Product Information
Key Specifications/ Special Features

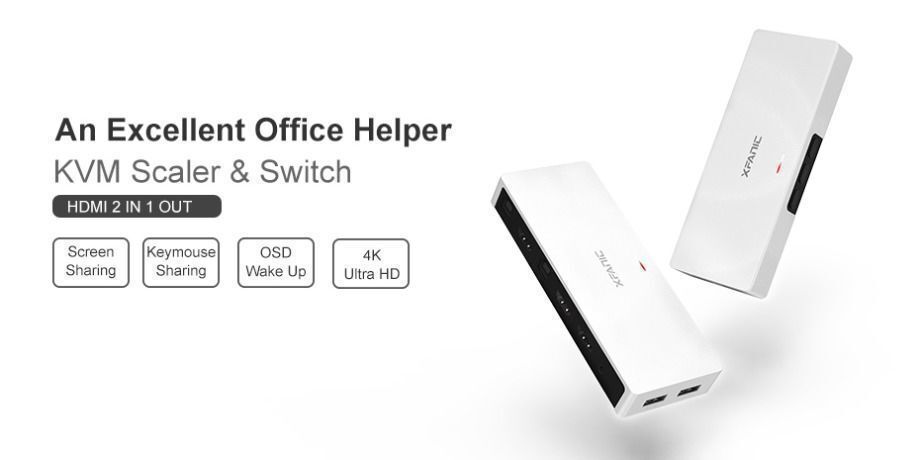

Description of 2 Ports KVM Switch

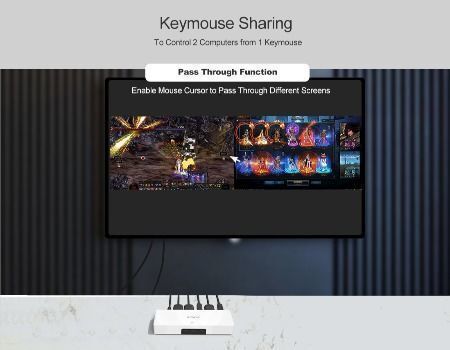

USB KVM Switch allows you to share one USB keyboard, USB mouse, and one HD monitor to control 2 computers, laptops, game consoles. It is designed for multitask with two computers at your necessary, increasing productivity in the office or at home; You can switch between 2 computers using a manual switch located on the top of the KVM unit.

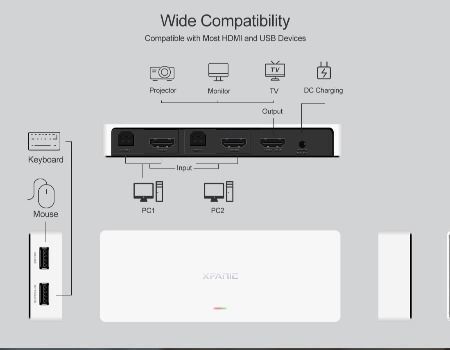

How It Works:
1. Connect the DC 5V power adapter to this product to keep power input for it
2. Connect HD IN1 and USB IN1 to PC1 at the same time
3. Connect HD IN2 and USB IN2 to PC2 at the same time
4. Connect a HD cable to the HD OUT interface to a HD display
5. Plug an USB keyboard and an USB mice to the correspondent USB-A port
6. Press the manual switch button to switch between the two computers.
Operating Systems: Windows/XP/ Vista/Linux etc.
Package Contents:
1 x HD USB KVM Switch 2x1
2 x USB-A to USB-B Cable
1 x USB Power Cable
1 x USER Manual
Important Note:
Please make sure Input Connector 1 and USB-B Connector 1 were plugged in same group.
HD IN1 and USB IN1 is corresponding. Does NOT support HD IN1 and USB IN2 mixed insertion.
Not compatible with Mechanical Keyboard Mouse.
Not compatible with Wireless Keyboard Mouse.
Features
| Brand Name: | Xfanic |
| Model No.: | V113 |
| Input: | HDMI×2 + USB2.0-B×2 |
| Output: | HDMI×1 + USB-A×2 |

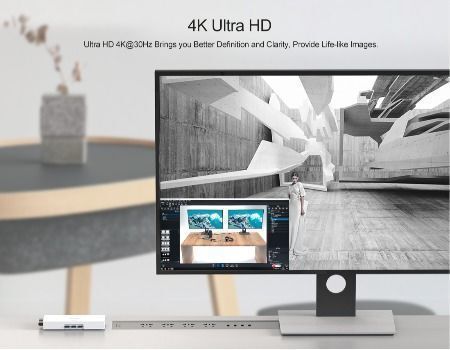

| Resolution: | Up to 4K@30Hz |
| Transfer Rate/ Bandwidth: | Up to 10.2Gbps, up to 340MHz |
| USB Port: | USB2.0 Standard (480Mbps), USB1.0 Standard (12Mbps) |
| Audio Format: | DTS, DSD, Dolby AC3 5.1, 7.1 channel |
| Audio sampling rate: | Up to 192KHz 24bit |
| Input cable length: | ≦10m AWG24 HDMI cable |
| Output cable length: | ≦10m AWG24 HDMI cable |
| Power: | DC 5V±5% |

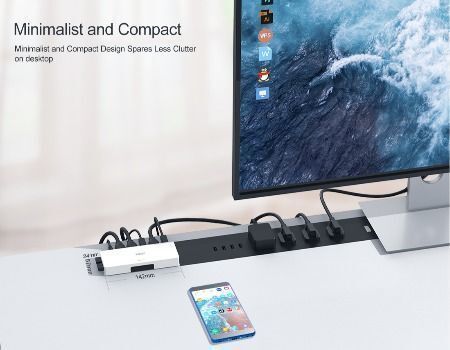

| Dimension: | 140×54×19.7mm |
| Housing Material: | Plastic White |
| Warranty: | 12 months |
Shipment & Payment
1. DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
2. T/T, PayPal, Western Union, L/C available.
Our Services
1. Supply you overall solutions of electronics accessories.
2. With ISO/SGS, CE/FCC/RoHs certificates. Joined BQB/WPC/USB-IF/HDCP Union.
3. With 11 Lean production Lines, monthly production value up to USD 7.5 million.
4. Our factory covered 5000 square meters, with 290 staffs and workers, included 20 QC staffs to ensure products quality.
5. Equipped with Yamaha SMT Assembly system, Solder Paste Printer, Reflow soldering machine, Bluetooth tester etc.
How to order
1. Pls send email or chat with us via TM, WHATSAPP SKYPE, and let us know your requirements on order details.
2. We will reply you with proforma invoice based on your order request.
3. Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4. Sample order supported.
Warranty & After-sale
1. Our products come with 12 months warranty and life-time service support.
2. You can return or exchange your items in any of the following circumstances; Faulty items, Damaged items or wrong models.
