USB3.2 Extender 100M over Cat 6a/7

Product Information

Model Number
XF-V8225A
Brand Name
XFANIC
Origin
China
Small Orders
Accepted

Key Specifications/ Special Features

Key Features

  • Long-Distance Transmission: Leverages HDBaseT technology to transmit USB 3.2 Gen1 (5Gbps) signals over Cat 6a/7 cables up to 100 meters, solving signal loss problems.
  • Easy Mode Switching: One-button control for Local/Remote mode switching；changes on one end (TX/RX) automatically sync to the other, ensuring seamless operation.

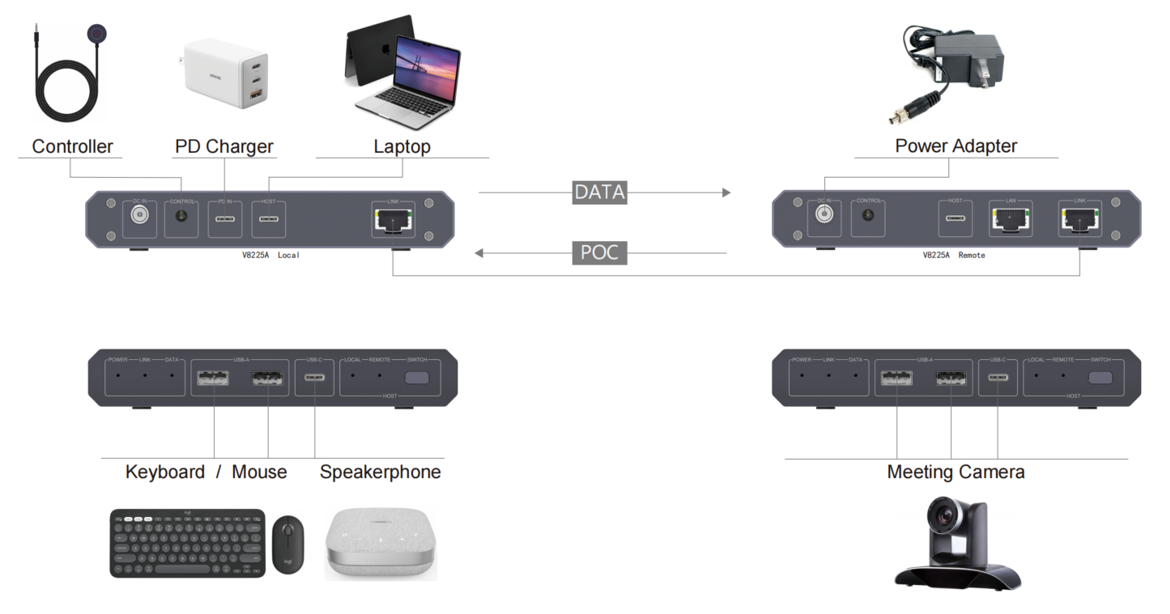

  • Two-Way POC Functionality: Power one device (TX/RX) via the included 24V/2.75A adapter, and the other receives power through the Ethernet cable, simplifying wiring.
  • Rich Interfaces: Equipped with 1× USB-C (Host, 5Gbps), 2× USB-A 3.2, 1× USB-C 3.2, and PD 3.0 (100W pass-through for PC), supporting diverse USB devices.
  • Durable & Reliable: Aluminum alloy enclosure with ESD protection (±4kV contact discharge, ±8kV air discharge) and wide operating temperature range (0–40°C).


Application Scenarios

  • Home Entertainment: Connect TVs, gaming consoles, or external storage from long distances for immersive setups.
  • Corporate Meetings: Enable seamless connection of projectors, cameras, or conference tools in large meeting rooms.
  • Educational Presentations: Link teachers’ laptops to classroom displays, speakers, or interactive whiteboards reliably.
  • Digital Signage: Power and control remote digital screens in malls, airports, or lobbies without signal loss.
  • Remote Control: Manage USB devices (keyboards, mice, cameras) across extended spaces for flexible workflows.


Specification

CategoryTransmitter (TX)Receiver (RX)
DimensionsL154×W87×H24mmL154×W87×H24mm
Operating EnvironmentTemperature: 0–40°C; Humidity: 20–85% (no condensation)Temperature: 0–40°C; Humidity: 20–85% (no condensation)
Storage EnvironmentTemperature: -20–45°C; Humidity: 10–90% (no condensation)Temperature: -20–45°C; Humidity: 10–90% (no condensation)
ESD ProtectionContact: ±4kV; Air: ±8kVContact: ±4kV; Air: ±8kV
EnclosureAluminum Alloy, Deep GrayAluminum Alloy, Deep Gray
Supported OSWindows, macOS, ChromeOSWindows, macOS, ChromeOS
Key Interfaces1× USB-C (Host, 5Gbps); 2× USB-A 3.2; 1× USB-C 3.2; PD 3.0 (100W); RJ45 (Cat 6a+)1× USB-C (Host, 5Gbps); 2× USB-A 3.2; 1× USB-C 3.2; PD 3.0 (100W); RJ45 (100M/1000M)
Power24V/2.75A DC (POC supported)24V/2.75A DC (POC supported)
IndicatorsPower, Link, Data, Local/Remote LEDsPower, Link, Data, Local/Remote LEDs


Target Customers

  • Home users seeking flexible home theater or gaming setups.
  • IT departments in enterprises for meeting room equipment integration.
  • Educational institutions (schools, universities) for classroom tech setups.
  • Digital signage operators managing remote displays.
  • Professionals requiring long-distance USB device control (e.g., AV technicians, remote workers).


"Break the Distance Barrier—Experience 100M Stable USB 3.2 Transmission with XF-V8225A. Simplify Setup, Boost Productivity—Order Now!"


Perfect Portability

Slim and compact design to conveniently take it on-the-go.

Different Models with Different Solution

Different interface for your choice.

Shipment & Payment

1. DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.

2. T/T, PayPal, Western Union, L/C available.

Our Services

1. Supply you overall solutions of electronics accessories.

2. With ISO/SGS, CE/FCC/RoHs certificates. Joined BQB/WPC/USB-IF/HDCP Union.

3. With 11 Lean production Lines, monthly production value up to USD 7.5 million.

4. Our factory covered 5000 square meters, with 290 staffs and workers, included 20 QC staffs to ensure products quality.

5. Equipped with Yamaha SMT Assembly system, Solder Paste Printer, Reflow soldering machine, Bluetooth tester etc.

How to order

1. Pls send email or chat with us via TM, WHATSAPP, SKYPE, and let us know your requirements on order details.

2. We will reply you with proforma invoice based on your order request.

3. Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.

4. Sample order supported.

Warranty & After-sale

1. Our products come with 12 months warranty and life-time service support.

2. You can return or exchange your items in any of the following circumstances; Faulty items, Damaged items or wrong models.
