Product Information
Key Specifications/ Special Features

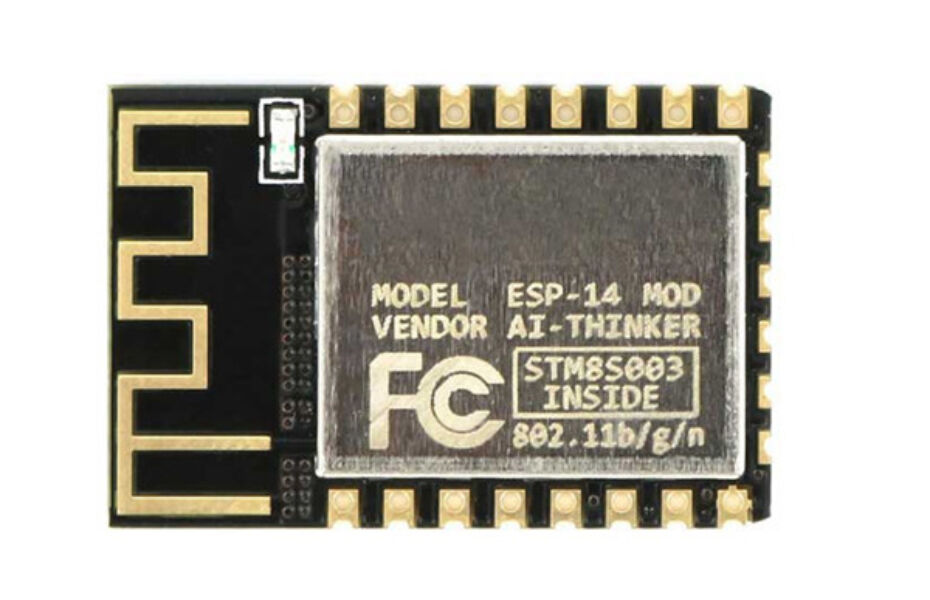

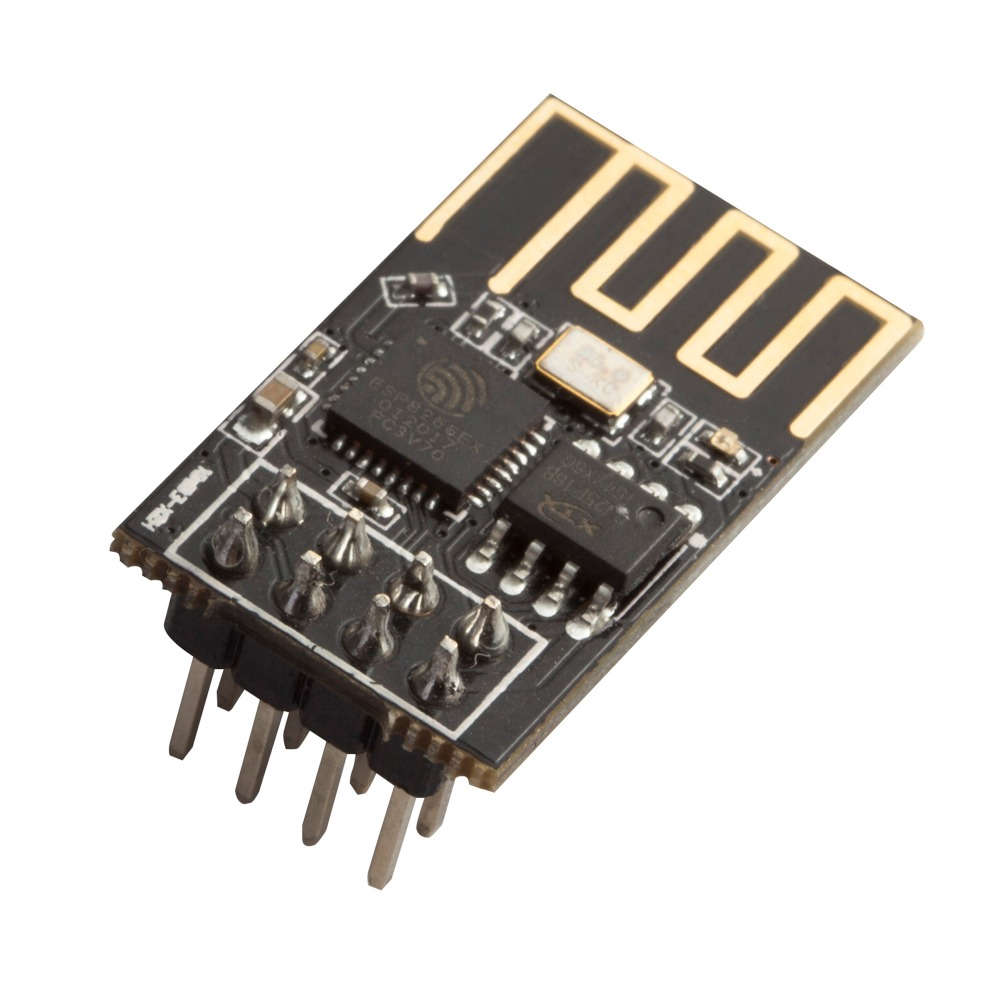

Wifi module chip wifi module inverter gate module wifi
Welcome to XingDa Electric Technology Co.,Ltd
Xindaxing Electric Technology Co.,LTd
Our Services:
We are professional one-stop electronic manufacturing solutions provider, so we can provide the following services
Electrical Parameter:
| No. | Parameter item | Parameter value | Notes |
| 1 | RF chip | ESP8266EX | Espressif |
| 2 | PCB | 4-layer | Impedance debugging |
| 3 | Frequency Band | 2.4~2.4835 GHz | |
| 4 | Connector | 2.00mm | SMD |
| 5 | Supply voltage | 3.0 ~ 3.6V DC | Note: the voltage higher than 3.6V is forbidden |
| 6 | Operation Range | 100m | Test condition:clear and open area& maximum power, height:> 2m |
| 7 | Transmitting power | 20dBm | About 100mW |
| 8 | AT support | Built-in intelligent processing | Can be read by AT command. |
| 9 | Wi-Fi version | 802.11 b/g/n | |
| 10 | Communication interface | UART | |
| 11 | Antenna type | PCB | 50Ω impedance |
| 12 | Operating temperature | -40 ~ +85℃ | Industrial-grade |
| 13 | Operating humidity | 10% ~ 90% | No condensation |
| 14 | Storage temperature | -40 ~ +125℃ | Industrial-grade |
PCB Assembly (SMT) Product Capacity:
| SMT Capacity | |
| SMT Item | Capacity |
| PCB Max. size | 510mm*1200mm(SMT) |
| Chip component | 0201, 0402, 0603, 0805, 1206 package |
| Min.pin space of IC | 0.1mm |
| Min. space of BGA | 0.1mm |
| Max.precision of IC assembly | ±0.01mm |
| Assembly capacity | ≥8 million piots/day |
| DIP capacity | 6 DIP production lines |
| Assembly testing | Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test) |
FCT(Functional Circuit Test) | Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement. |
Product Application:

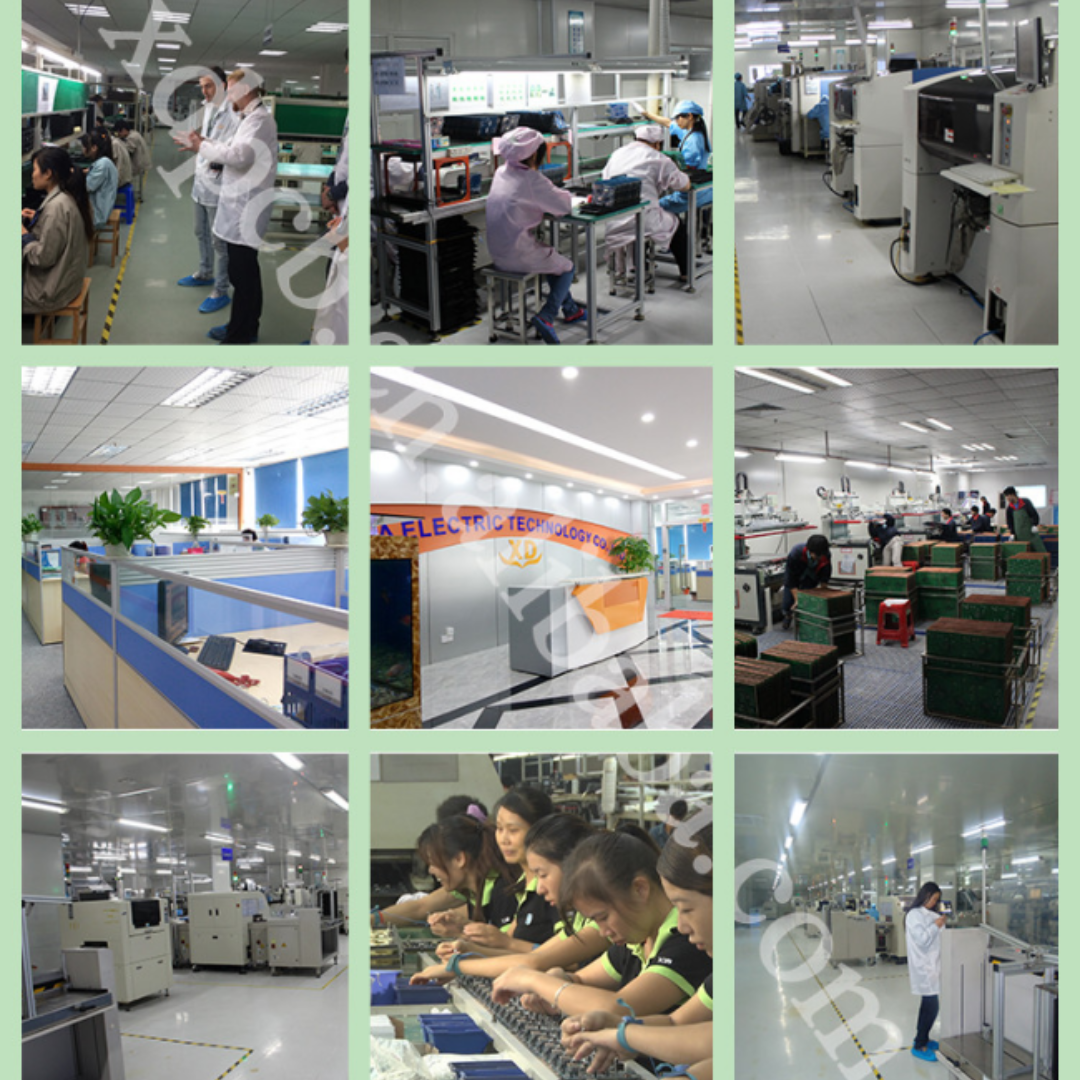

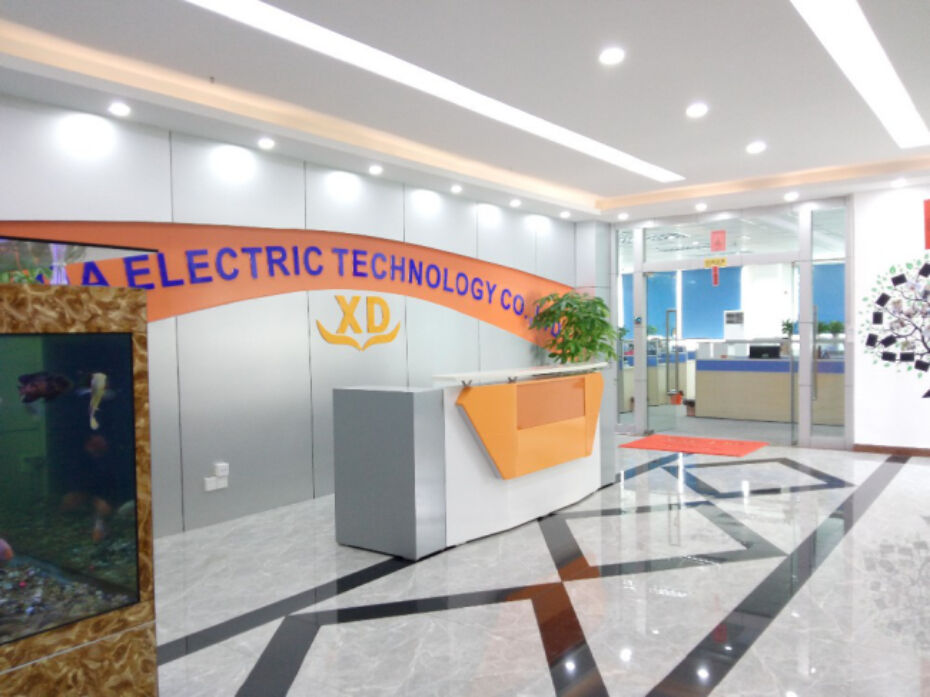

View of Factory
Customer visiting
Exhibition Show:
FAQ
Q1:Are you a factory or trade company?
A: XingDa is a professional OEM&ODM manufacturer.
Q2:What payment do you accept ?
A: TT/ Western Union/ Paypal/ Unistream.
Q3: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q4: How about the MOQ?
A: No
Packaging & Shipping
