Product Information
Key Specifications/ Special Features

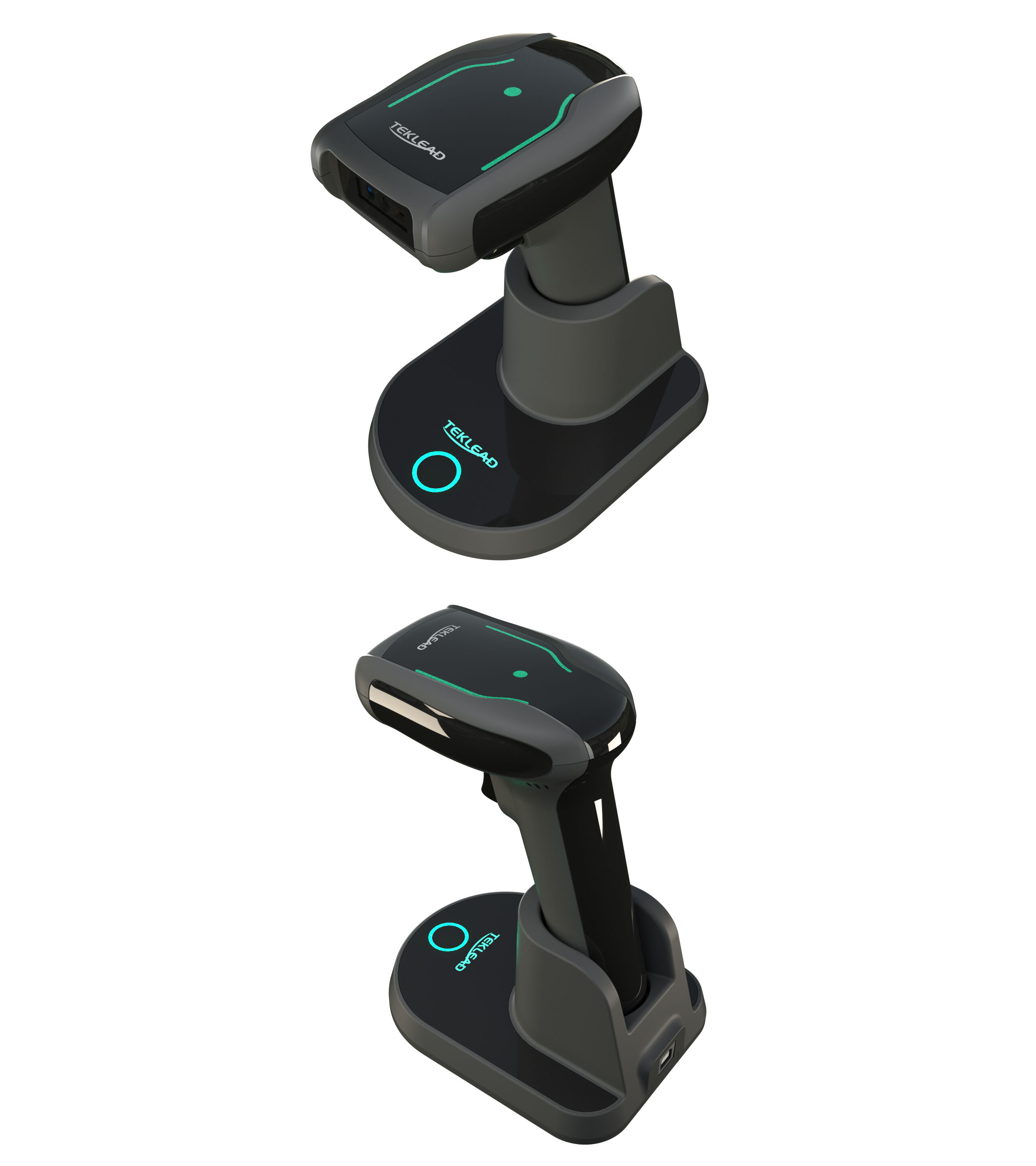

T-3030 (Bluetooth 2D Barcode Scanner with Charging Base) is our latest and hot sale product. Bluetooth mode can be changed to wireless mode by finger pressing on the charging base for only 3 seconds. There's no need to scan any setup barcodes on the manual. It is very convenient to use. The indicator light on top casing shows if it is well connected. The USB charging cable can be used as the data cable when it connects directly to the scanner. That means this scanner has three modes (wired/wireless/bluetooth) combined in one. It uses a 1,000,000 pixel camera which makes the scanning and decoding performance much more excellent. Special barcodes like Russia cigarete and alcohol barcode, Brazil bank code, Italy pharmacy code, etc, can be easily read by the scanner. It can be widely used for supermarket, library, cinema, warehouse, logistics, etc.
| Weight | 350g (without cable) |
| Size | Scanner: 160 mm × 95 mm W × 60mm H; Cradle: 130 mm × 100 mm W × 65mm |
| Interface | USB+2.4G+Bluetooth 3 in 1 |
| Light source | Illumination: white LED, Aiming; red LED, 525nm |
| Image sensor | 1280×800 CMOS |
| Processor | ARM32-bit |
| Resolution | 1D：≥3mil，2D：≥8.7mil @PCS90% |
| Depth of field | 3mil：55~100mm，13mil：55~350mm |
| Scan mode | Manual scanning, automatic induction scanning |
| Prompt | LED indicator light, buzzer |
| Scan angle | Roll：±360°,Pitch：±60°or greater,Yaw：±70°or greater） |
| Field of view | Horizontal 40°× Vertical 30° |
| Motion tolerance | 64cm/second |
| Power | DC5V(input),180mA(operating) |
| Print contrast | 25%PCS |
| Ambient light | 70000Lux |
| Wireless communication | Synchronous mode, storage mode |
| Transmission distance | 2.4GHz: 60 meters(open distance); Bluetooth: 10 meters |
| Storage capacity | 16Mb |
| Battery | 2600mAh |
| Charging time | About 5 hours |
| Continuous scanning time | ≥70hours |
| Standby time | ≥6 months |
| Supported barcodes | 1D: Codabar, Code39, Code32, Interleaved 2 of 5（ITF25）, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11,Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN,GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT, MSI, Febraban 2D: PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Relative humidity | 5% to 95%（Non-condensing） |
| Transport vibration test | 10H@125RPM |
FOR MORE INFORMATION, PLEASE CONTACT aileen (dot) shao (at) gzteklead (dot) com
