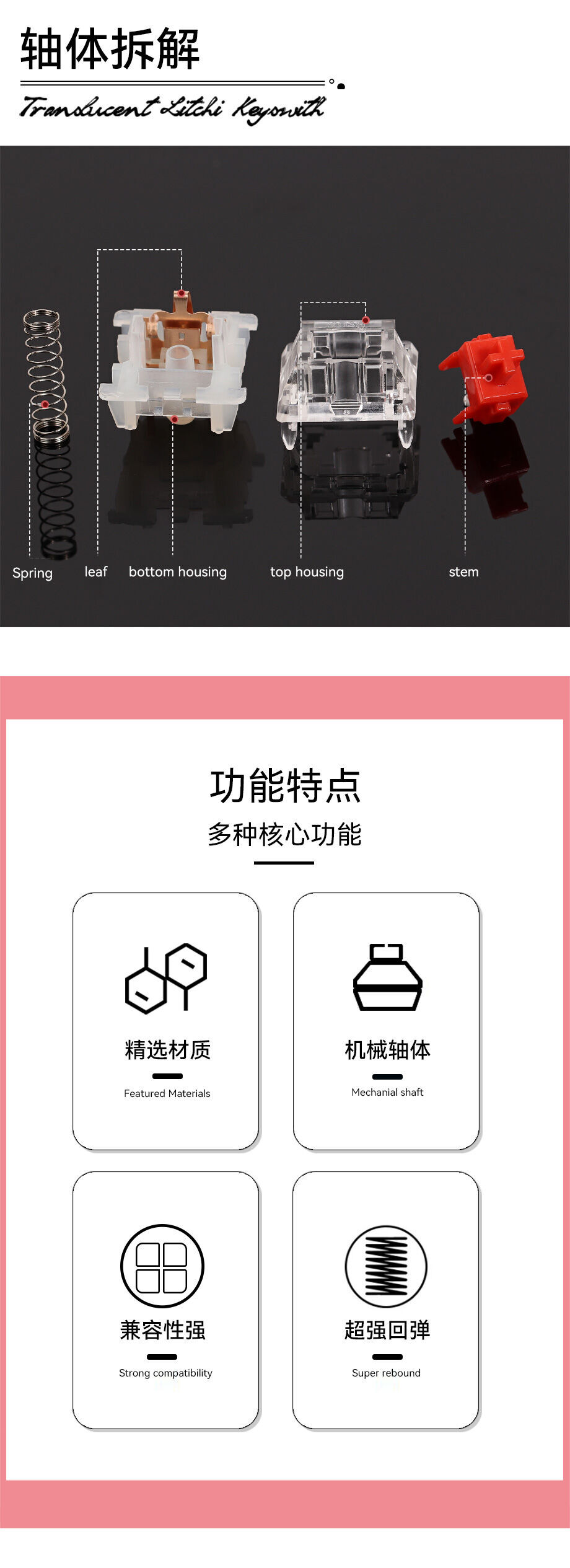

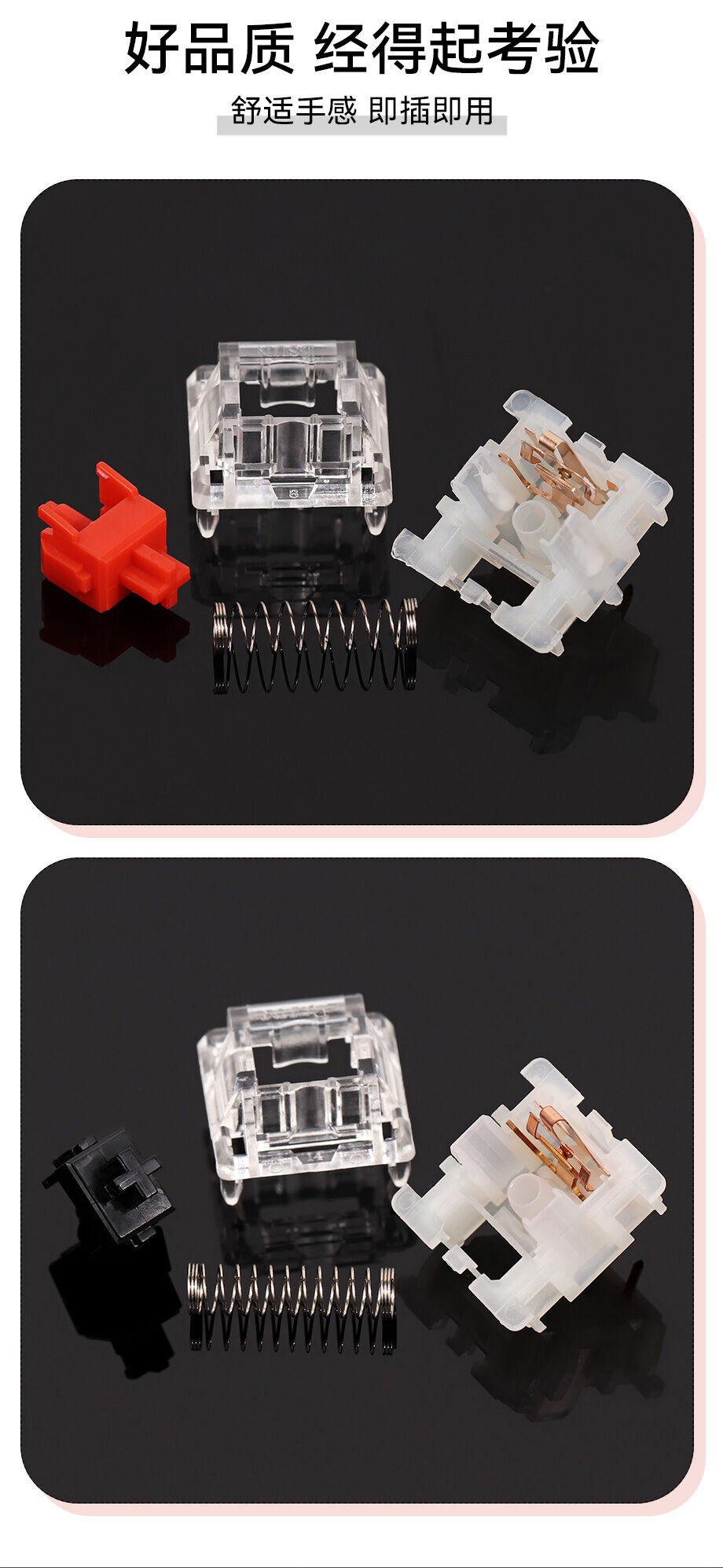

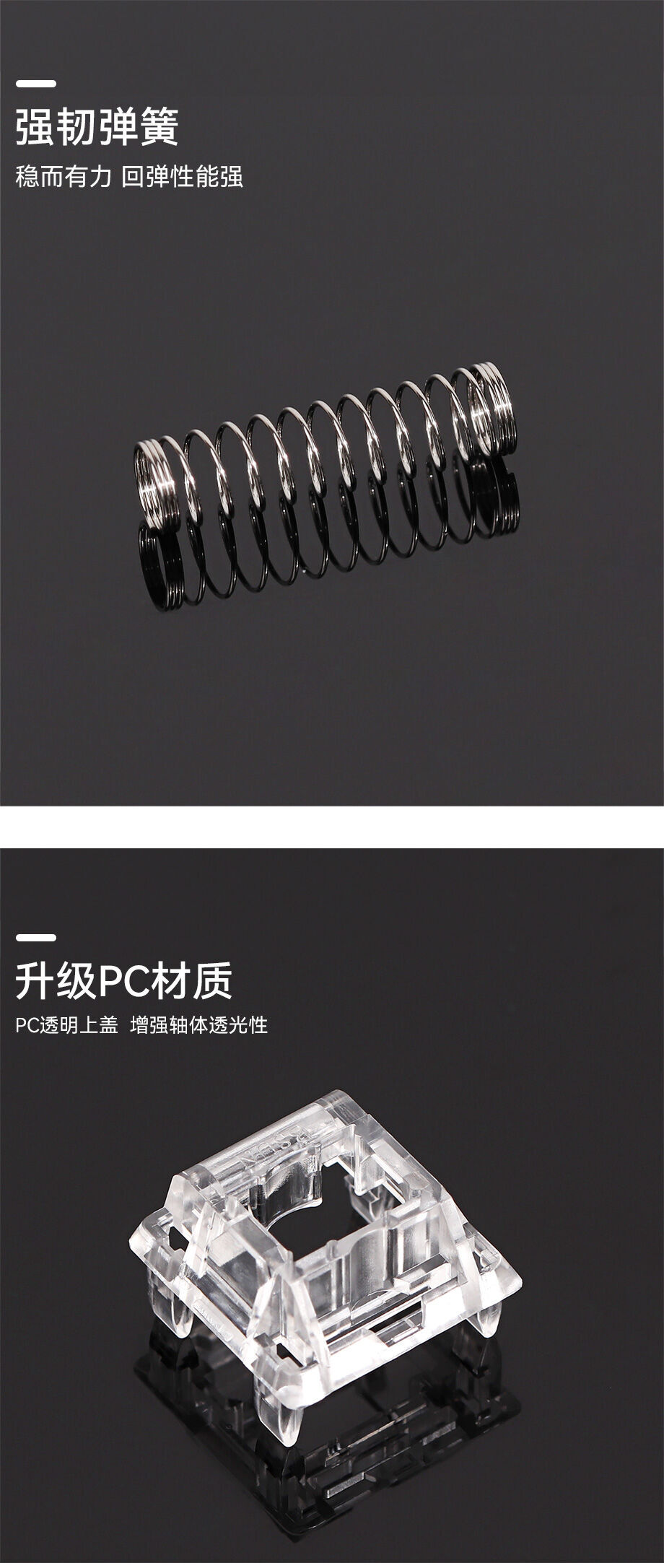

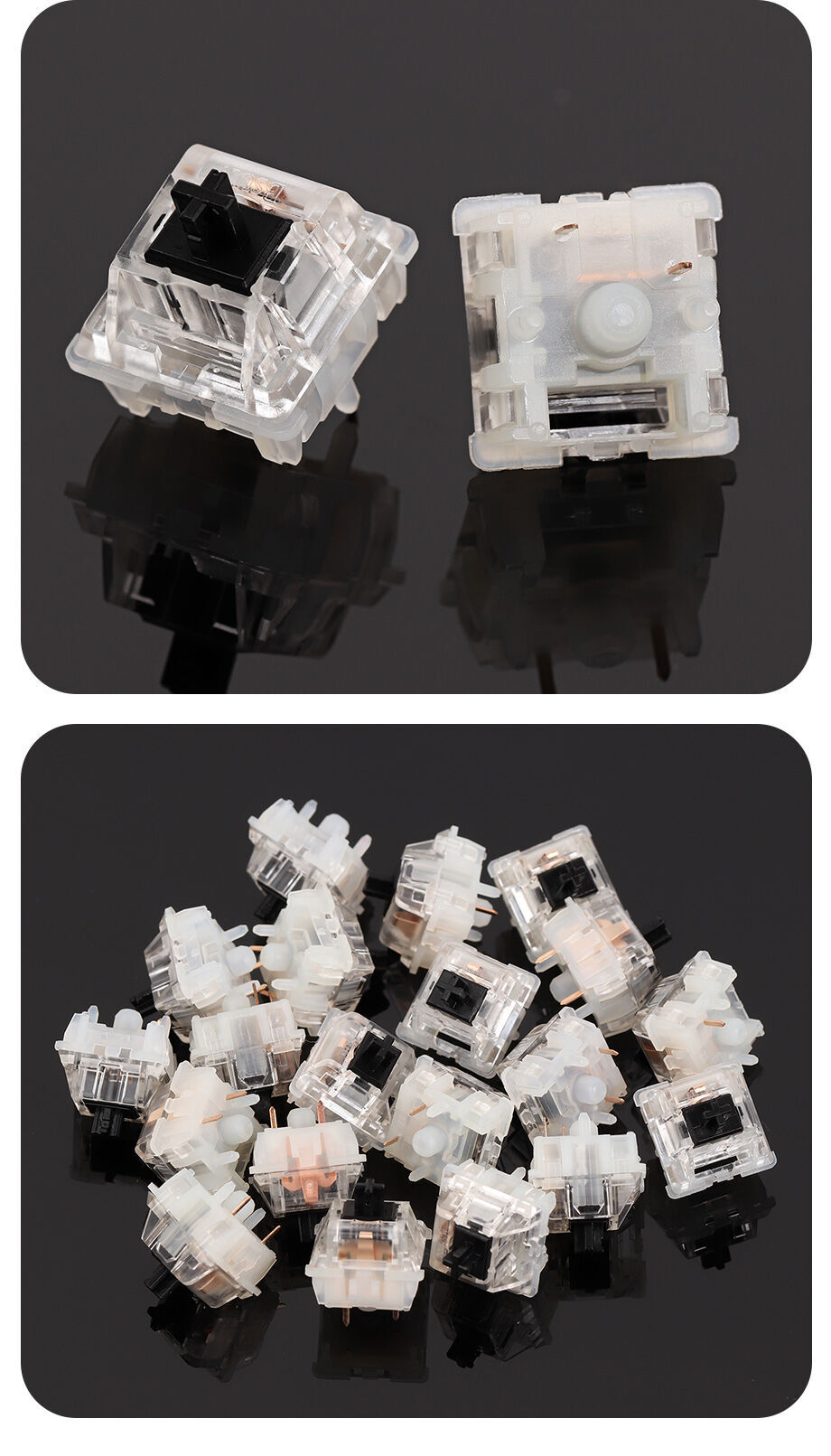

Product Information
Key Specifications/ Special Features
Shop product specifications, Price only for reference, not the actual transaction price, the specific price to contact customer
service quotation, Welcome to consult! !! Can be customized according to drawings,
samples of various non-standard parts. Good quality, reasonable price, welcome your patronage!

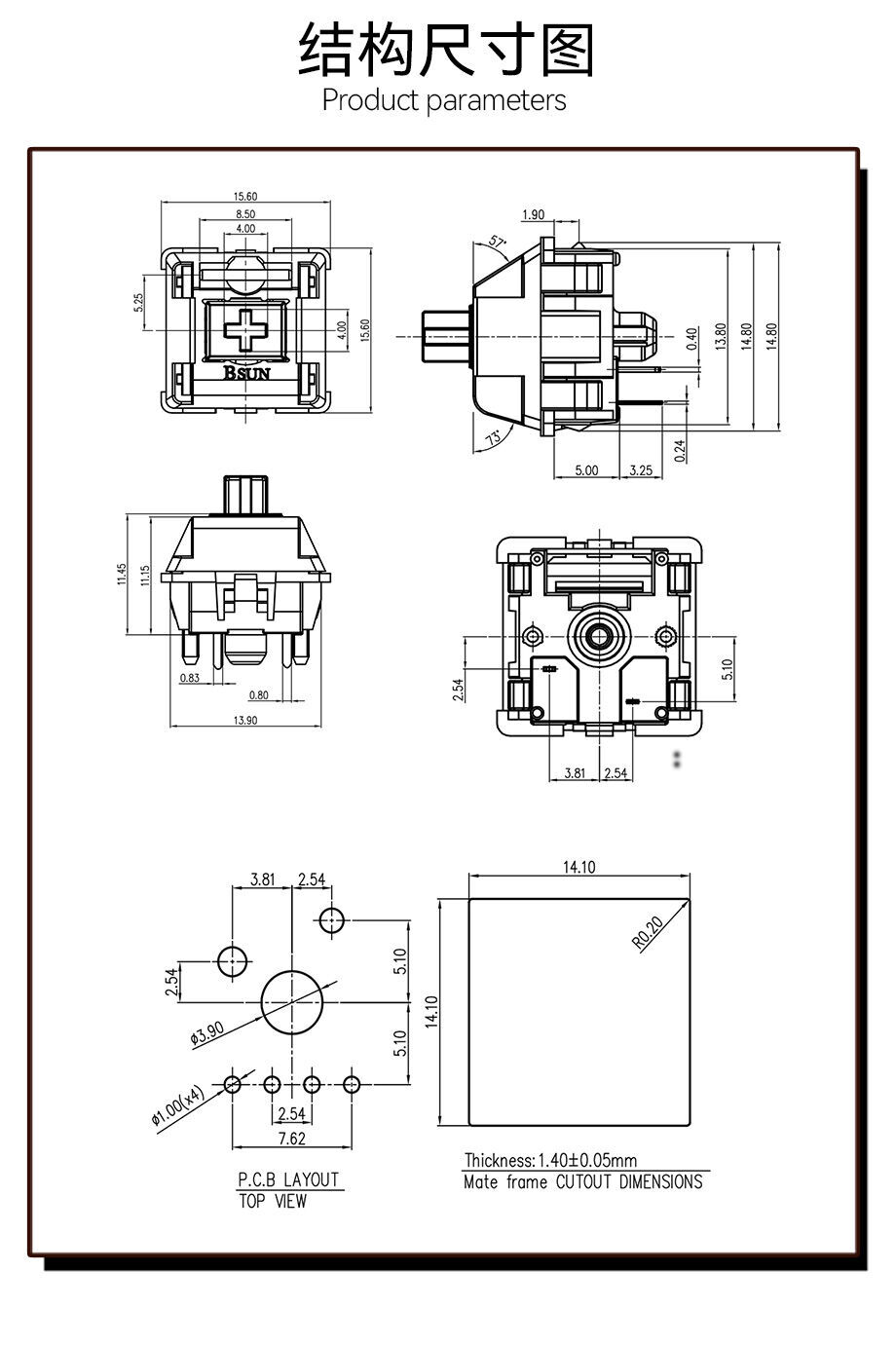

Key Specifications/Special Features:
Standard atmospheric condition:
Unless otherwise specified, the standard range of atmospheric conditions for making measurements
and tests are as follows:
Ambient temperatures: 15 to 35°C
Relative humidity: 45 to 80%
Air pressure: 86 to 106kPa
If there is any doubt about the results, measurements shall be made within the following limits:
Ambient temperatures: 20 +/- 1°C
Relative humidity: 60 to 70%
Air pressure: 86 to 106kPa
Operating temperature range: -30 to 85°C
Storage temperature range: -30 to 85°C
Electrical characteristics:
Rated voltage/rated current: 30V DC, 0.2A
Contact resistance:
Condition: measurement shall be made at with small current 1,000Hz (1A maximum)
30mΩ maximum
Insulation resistance:
Condition: voltage of 500V DC shall be applied for 1 minute after which measurement shall be made
Between the conductors which should not make contact under normal conditions
Between each terminal and insulated metal part
Specifications: 100MΩ minimum
Dielectric strength:
Condition: 500V AC (50 to 60Hz) for 1 minute, 2mA trip current
Between the conductors which should not make contact under normal conditions
Between each terminal and insulated metal part
Spec: without damage to part, arching or breakdown

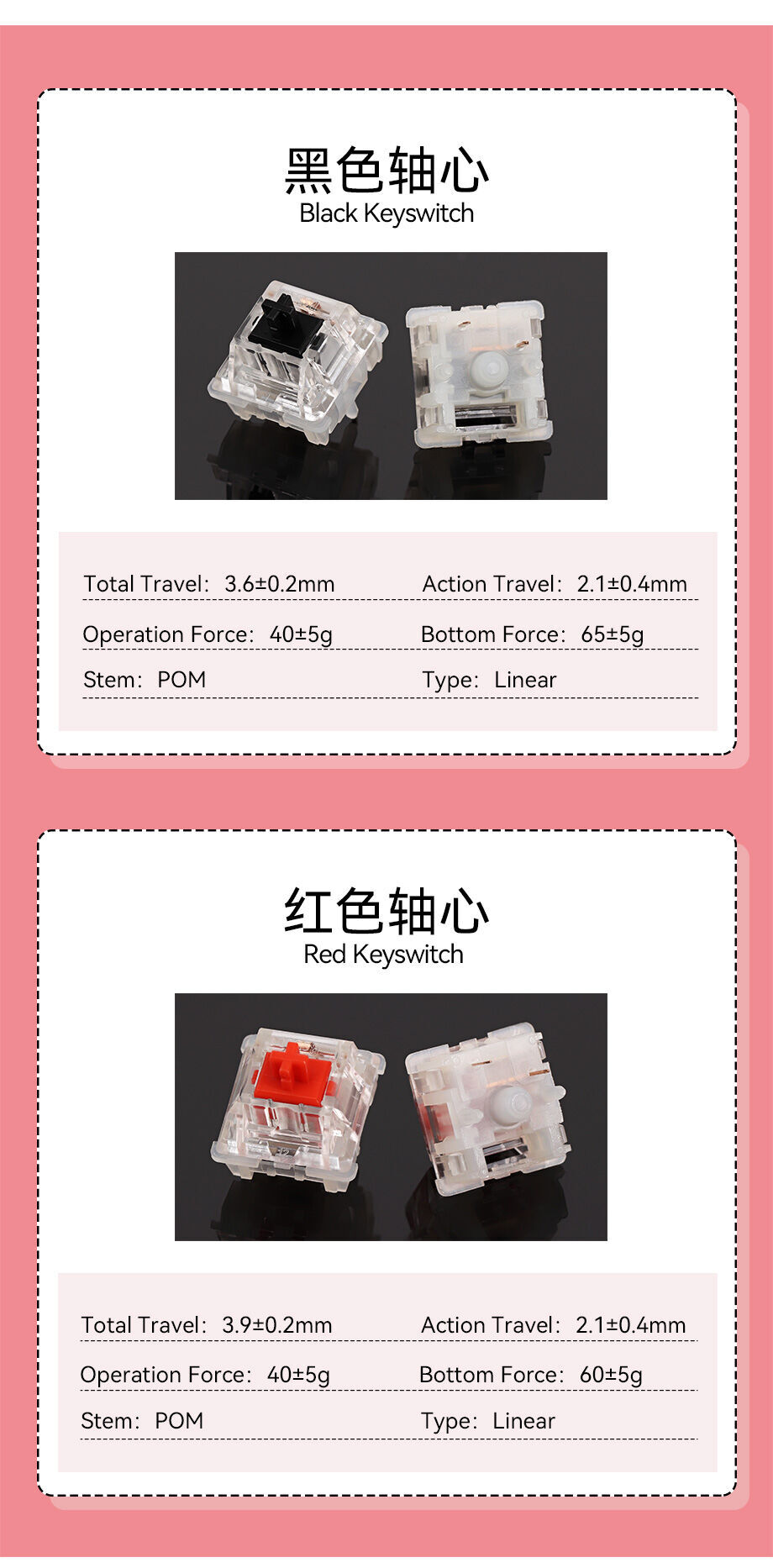

Mechanical characteristics:
Operating force:
Condition:
Insertion and withdrawal force shall be measured after inserting and withdrawing 3 times by using
Insertion force: 3 to 20N (0.3 to 2.0kgf)
Withdrawal force: 3 to 20N (0.3 to 2.0kgf)
Terminal strength:
Condition: static force of 500gf being applied in one direction on the tip of terminal for 1 minute
Specifications: there shall be no sign of damage mechanically and electrically
