Product Information
Key Specifications/ Special Features
THERMAL PASTE CPU CTG8D 2g desktop computer motherboard cooling silicone notebook graphics card LED light cooling
About the thermal paste

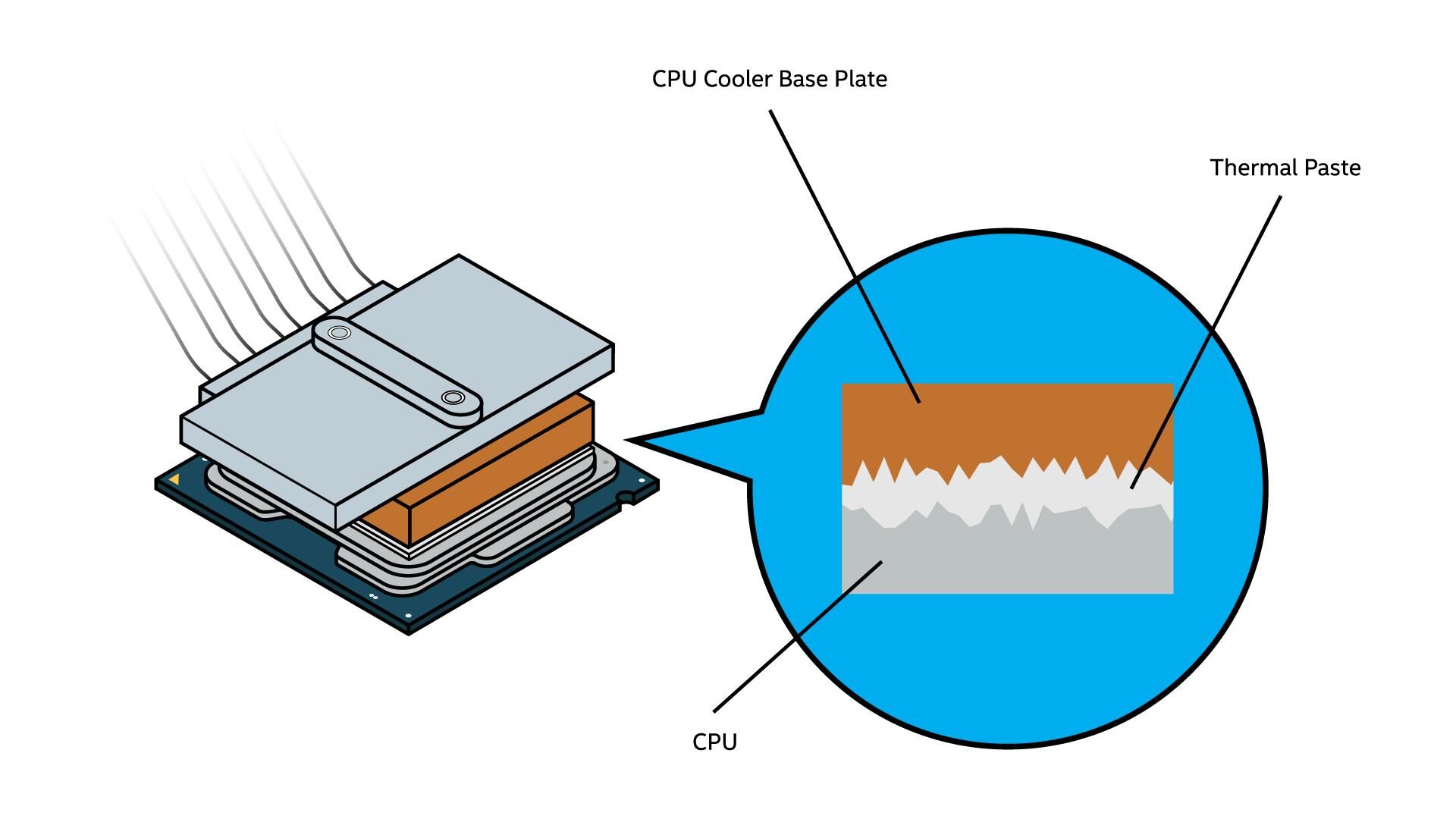

If you’ve delved into the world of PC building, you’ve no doubt heard about thermal paste. This material is also known as thermal grease, heat paste, CPU paste, thermal gel, and thermal interface material (TIM), among other names. Whatever you call it, the correct application of thermal paste is an important part of ensuring your CPU is operating properly.

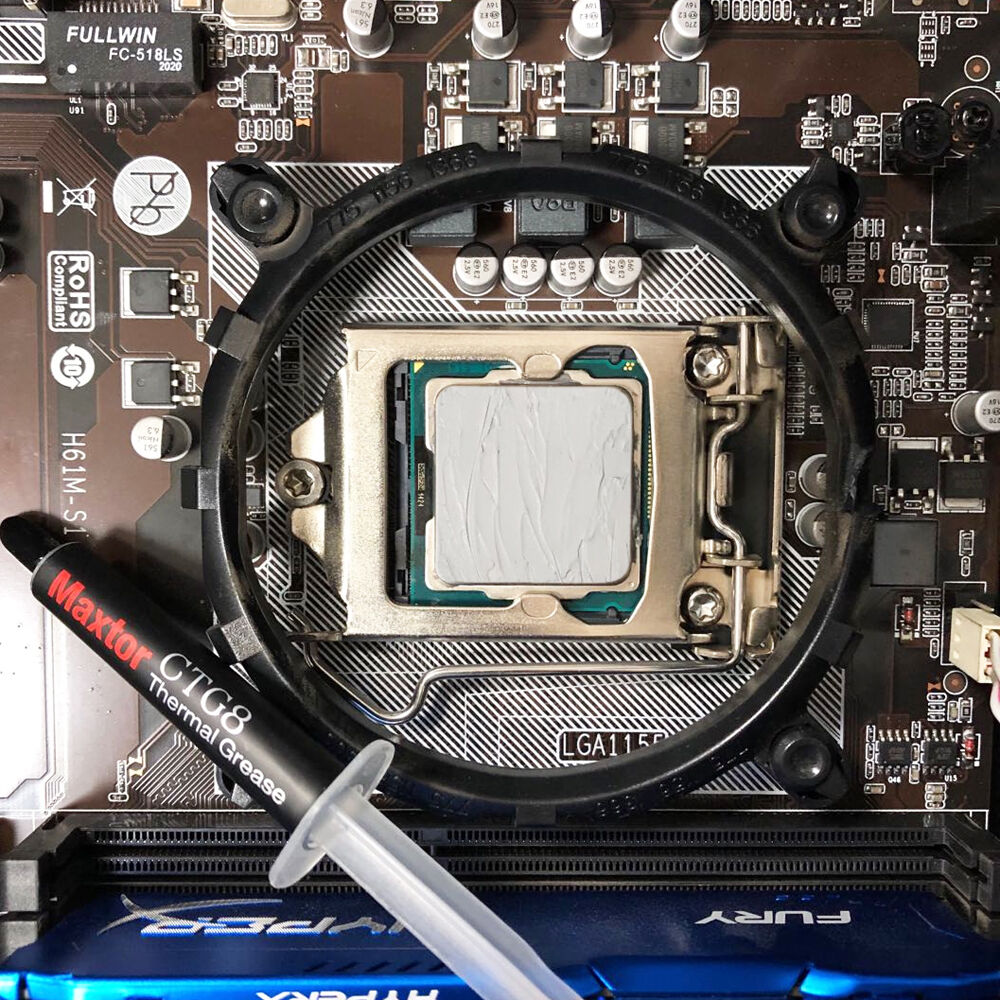

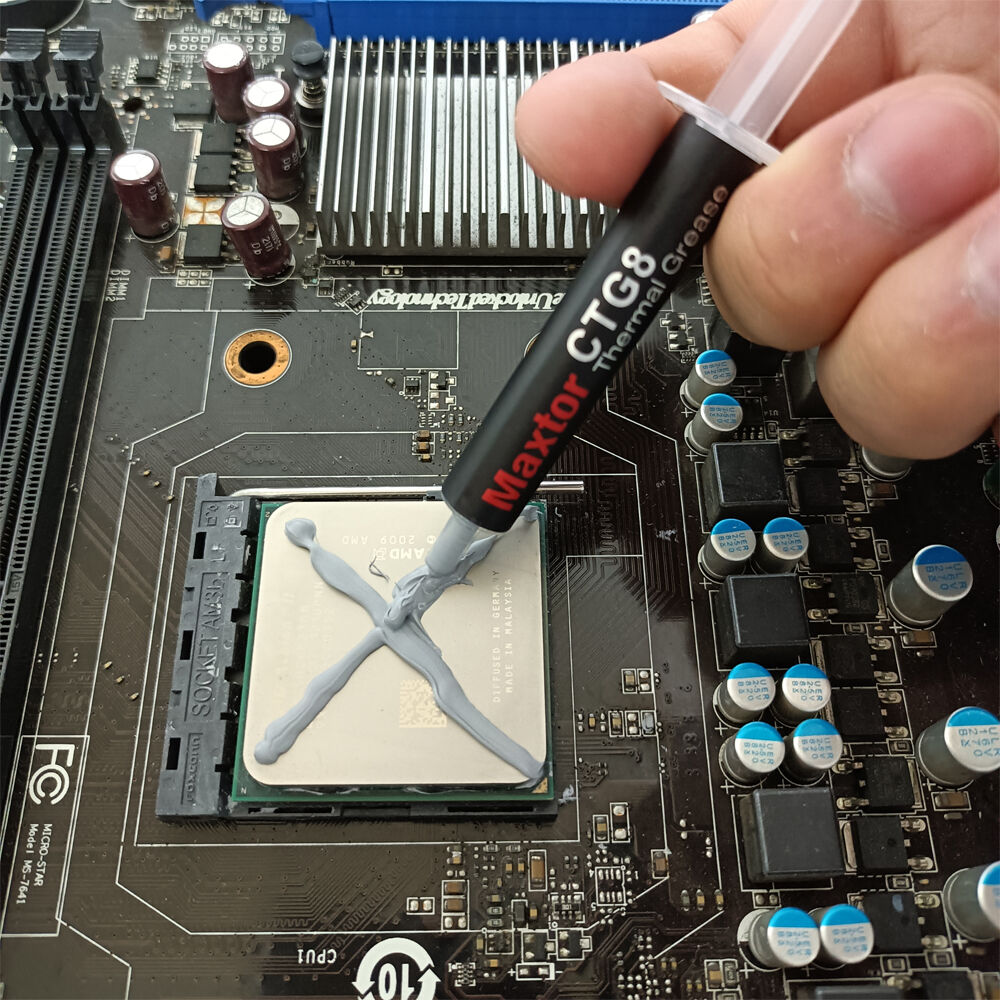

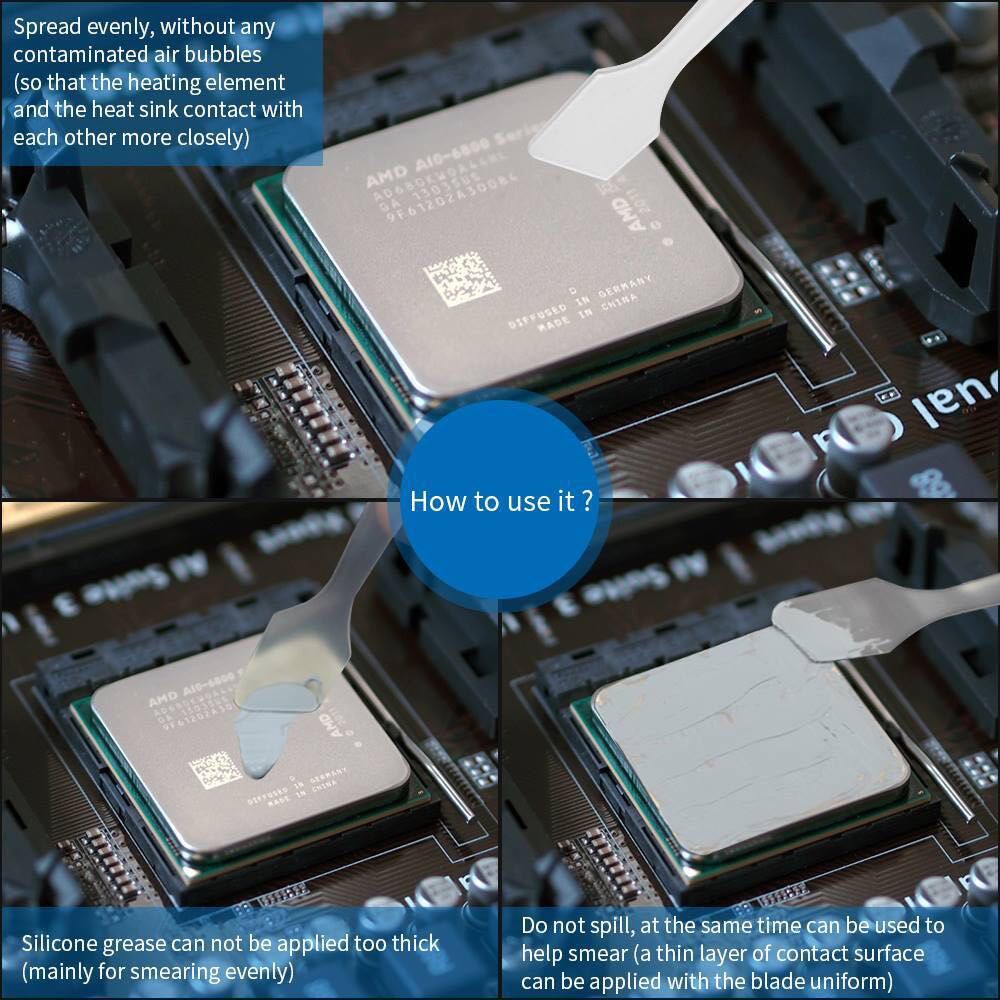

That’s why it’s important to know not only how it works, but also how to correctly apply it when working with a CPU.
Parameter
| Model | CTG8 |
| Color | Grey |
| Specific Gravity@25℃ | 2.8 |
| Thermal Conductivity(W/m-K) | >12.8 |
| Termal Impedance(℃-in²/W） | <0.112 |
| Temperature Stability | -50℃~+200℃ |

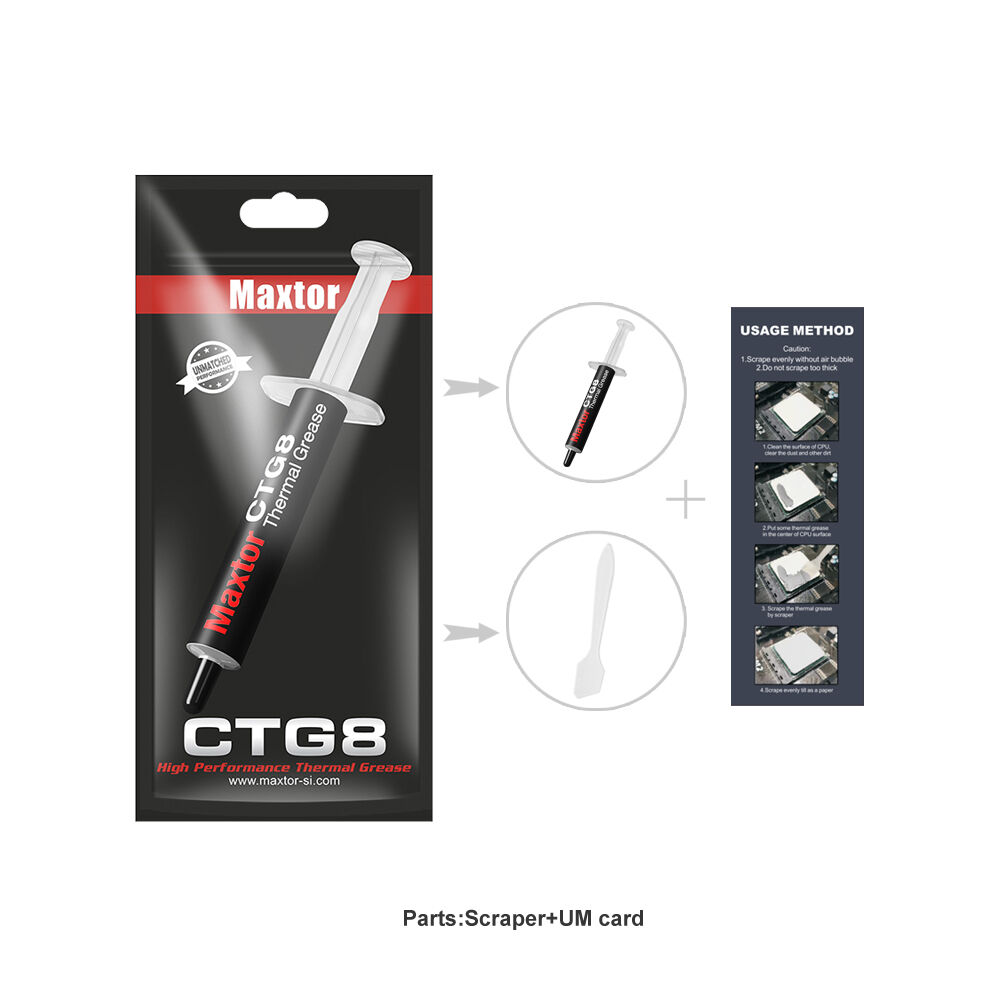

CTG8 Thermal Paste
Thermal Conductivity: 12.8W/m-k
-designed for Overclocking
-excellent thermal conductivity
-no curing -long-term durability
-no electrical conductivity
-applicable with aluminum (warning is for Conductonaut only!)
****************************************************************
PRODUCT DESCRIPTION
Maxtor CTG8 are grease-like silicone materials, heavily filled with heat conductive metal oxides. This combination promotes high thermal conductivity, low bleed and high-temperature stability. These compounds resist changes in consistency at temperatures up to 250°C (482°F),
maintaining a positive heat sink seal to improve heat transfer from the electronic device to the heat sink or chassis, thereby, increasing the overall efficiency of the device.
PARAMETER
Model Number: CTG8D
Usage: CPU/GPU/LED
Brand Name: Maxtor
Type: Thermal Grease
Color: Grey
Shelf life: 5 years
Certificate: Reach/ROhs/MSDS
Vdaf(200℃，24h):<1.0%
Breakdown Voltage(Kv/mm):>5.0
Operating temperature(℃）:-50~+250℃
Limit temperature(℃）:-50~270℃
Thermal Conductivity: ＞12.8W/m-k
Other Models Material
| Color | Thermal Conductivity | Density (g/ml) | Thermal Impedance | Viscosity (mPa.s) | Electrically Conductive | Temperature Stability | |
| CTG1 | Grey | 4.5W/m.k | 2.5 | 0.155℃-in²/W | 74000 | No | -40℃~+150℃ |
| CTG3 | Grey | 8.5W/m.k | 2.6 | 0.135℃-in²/W | 75000 | No | -50℃~+200℃ |
| CTG8 | Grey | 12.8W/m.k | 2.8 | 0.112℃-in²/W | 85000 | No | -50℃~+250℃ |
| CTG9 | Grey | 13.5W/m.k | 2.9 | 0.102℃-in²/W | 92000 | No | -50℃~+250℃ |
| CTG10 | Grey | 14.5W/m.k | 2.8 | 0.095℃-in²/W | 95000 | No | -50℃~+280℃ |
| MTP-8301 | Grey | 11.2W/m.k | 2.7 | 0.126℃-in²/W | 82000 | No | -50℃~+200℃ |
| MTP-8302 | Grey | 12.5W/m.k | 2.8 | 0.116℃-in²/W | 80000 | No | -50℃~+200℃ |
Zhongshan Maxtor New Material Co., Ltd. The main business is the R & D, production and sales of Thermal paste. lt provides customers with new systematic heat dissipation solutions worldwide and is committed to becoming a leading brand in the field of heat dissipation solutions and applications for electronic products with international competitiveness.
The company's products have been widely used in electronic appliances, computer cooling applications, LED lighting industry automotive electronics, instrumentation, network communications industrial electronic equipment and other fields. And gradually expand to 5g mobile equipment and communication base station heat dissipation, smart city project construction, new energy vehicle thermal management and other fields. And has established a solid strategic cooperation relationship with many brand leading enterprises.
THERMAL PASTE CPU CTG8D 2g desktop computer motherboard cooling silicone notebook graphics card LED light cooling
About the thermal paste
If you’ve delved into the world of PC building, you’ve no doubt heard about thermal paste. This material is also known as thermal grease, heat paste, CPU paste, thermal gel, and thermal interface material (TIM), among other names. Whatever you call it, the correct application of thermal paste is an important part of ensuring your CPU is operating properly.
That’s why it’s important to know not only how it works, but also how to correctly apply it when working with a CPU.
Parameter
| Model | CTG8 |
| Color | Grey |
| Specific Gravity@25℃ | 2.8 |
| Thermal Conductivity(W/m-K) | >12.8 |
| Termal Impedance(℃-in²/W） | <0.112 |
| Temperature Stability | -50℃~+200℃ |
CTG8 Thermal Paste
Thermal Conductivity: 12.8W/m-k
-designed for Overclocking
-excellent thermal conductivity
-no curing -long-term durability
-no electrical conductivity
-applicable with aluminum (warning is for Conductonaut only!)
****************************************************************
PRODUCT DESCRIPTION
Maxtor CTG8 are grease-like silicone materials, heavily filled with heat conductive metal oxides. This combination promotes high thermal conductivity, low bleed and high-temperature stability. These compounds resist changes in consistency at temperatures up to 250°C (482°F),
maintaining a positive heat sink seal to improve heat transfer from the electronic device to the heat sink or chassis, thereby, increasing the overall efficiency of the device.
PARAMETER
Model Number: CTG8D
Usage: CPU/GPU/LED
Brand Name: Maxtor
Type: Thermal Grease
Color: Grey
Shelf life: 5 years
Certificate: Reach/ROhs/MSDS
Vdaf(200℃，24h):<1.0%
Breakdown Voltage(Kv/mm):>5.0
Operating temperature(℃）:-50~+250℃
Limit temperature(℃）:-50~270℃
Thermal Conductivity: ＞12.8W/m-k
Other Models Material
| Color | Thermal Conductivity | Density (g/ml) | Thermal Impedance | Viscosity (mPa.s) | Electrically Conductive | Temperature Stability | |
| CTG1 | Grey | 4.5W/m.k | 2.5 | 0.155℃-in²/W | 74000 | No | -40℃~+150℃ |
| CTG3 | Grey | 8.5W/m.k | 2.6 | 0.135℃-in²/W | 75000 | No | -50℃~+200℃ |
| CTG8 | Grey | 12.8W/m.k | 2.8 | 0.112℃-in²/W | 85000 | No | -50℃~+250℃ |
| CTG9 | Grey | 13.5W/m.k | 2.9 | 0.102℃-in²/W | 92000 | No | -50℃~+250℃ |
| CTG10 | Grey | 14.5W/m.k | 2.8 | 0.095℃-in²/W | 95000 | No | -50℃~+280℃ |
| MTP-8301 | Grey | 11.2W/m.k | 2.7 | 0.126℃-in²/W | 82000 | No | -50℃~+200℃ |
| MTP-8302 | Grey | 12.5W/m.k | 2.8 | 0.116℃-in²/W | 80000 | No | -50℃~+200℃ |
Zhongshan Maxtor New Material Co., Ltd. The main business is the R & D, production and sales of Thermal paste. lt provides customers with new systematic heat dissipation solutions worldwide and is committed to becoming a leading brand in the field of heat dissipation solutions and applications for electronic products with international competitiveness.
The company's products have been widely used in electronic appliances, computer cooling applications, LED lighting industry automotive electronics, instrumentation, network communications industrial electronic equipment and other fields. And gradually expand to 5g mobile equipment and communication base station heat dissipation, smart city project construction, new energy vehicle thermal management and other fields. And has established a solid strategic cooperation relationship with many brand leading enterprises.
